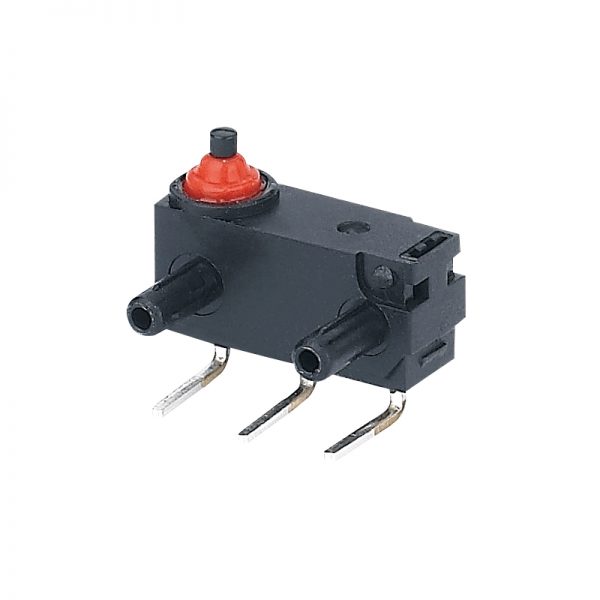

Low Electric Current Waterproof Switch

For several years, WEIPENG® has positioned itself as a reputable manufacturer and supplier of Low Electric Current Waterproof Switch in China. We pride ourselves on providing top-quality solutions that meet the needs of our customers.

Model:FSK-20-009

Send Inquiry

Product Description

WEIPENG® is a professional leader China 0.1a 12v DC Waterproof Switch manufacturers with high quality and reasonable price. Welcome to contact us.

Tongda Low Electric Current Waterproof Switch Introduction

For several years, Yueqing Tongda Wire Electric Co., Ltd. has positioned itself as a reputable manufacturer and supplier of 0.1A 12V DC Waterproof Switches in China. We pride ourselves on providing top-quality solutions that meet the needs of our customers. Our popularity in the European and American markets, coupled with our competitive pricing, makes us the perfect long-term partner for your 0.1A 12V DC Waterproof Switch needs in China.

Tongda Low Electric Current Waterproof Switch Principle

Switch Technical Characteristics:
ITEM	Technical parameter		Value
1	Electrical Rating		0.1A/1A/3A 250VAC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude : 1.5mm; Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
