16A/21A Large Micro Switch with Handle Three Pins

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the 116A/21A Large Micro Switch with Handle Three Pins features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

Model:HK-14-10A-310

Send Inquiry

Product Description

WEIPENG® is a leading 16A/21A Large Micro Switch with Handle Three Pins manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-14 switch, developed and produced independently by Yueqing Tongda Cable Factory under the WEIPENG brand, is a large micro switch positioned for the mid-to-high-end market. Thanks to its precise structural design, strict quality control, and versatile adaptability, it plays a key role in various on-off control scenarios. Unlike conventional switch products, it has developed a unique competitive advantage in stability and adaptability, making it a preferred product in the industry that combines practicality and professionalism.

Addressing the usage pain points of different industries, the HK-14 switch is designed with targeted improvements in load adaptability and protection performance. In addition to the standard 16A/250VAC rated load model, the high-load version can meet the 21A high-power demand, suitable for industrial equipment, large household appliances, and other high-frequency, high-load operating scenarios. At the same time, the product housing is made of high-strength flame-retardant material, which not only meets the UL94 V-0 flame-retardant rating but also has excellent impact resistance and aging resistance, making it suitable for various harsh operating conditions.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

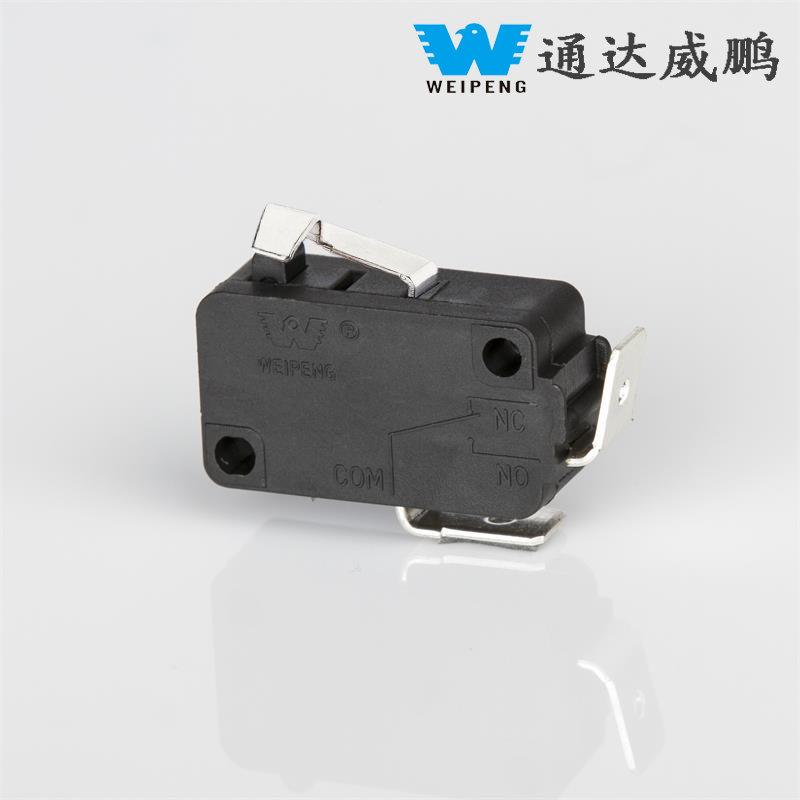

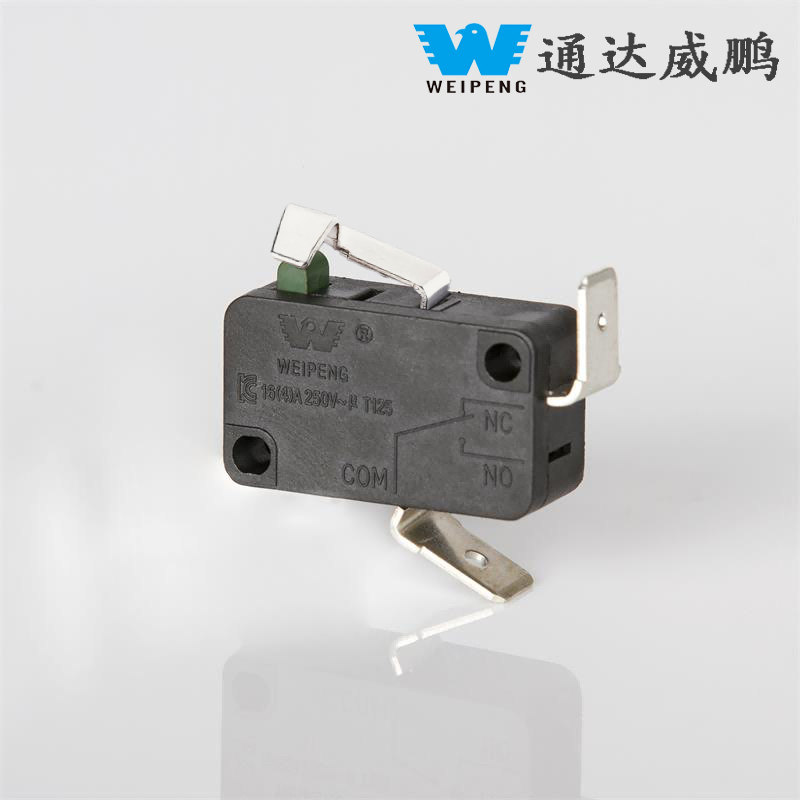

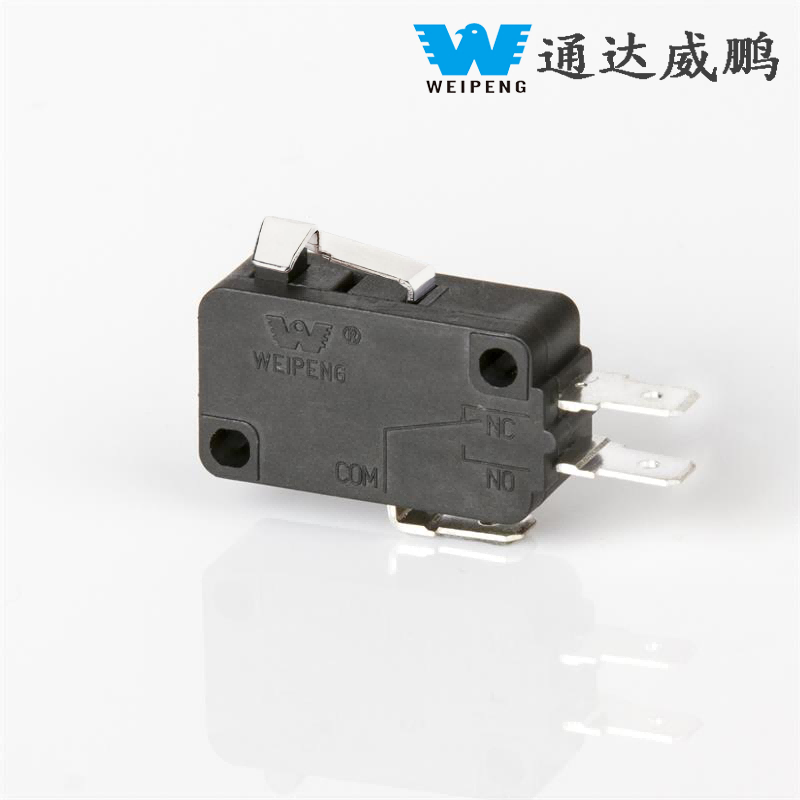

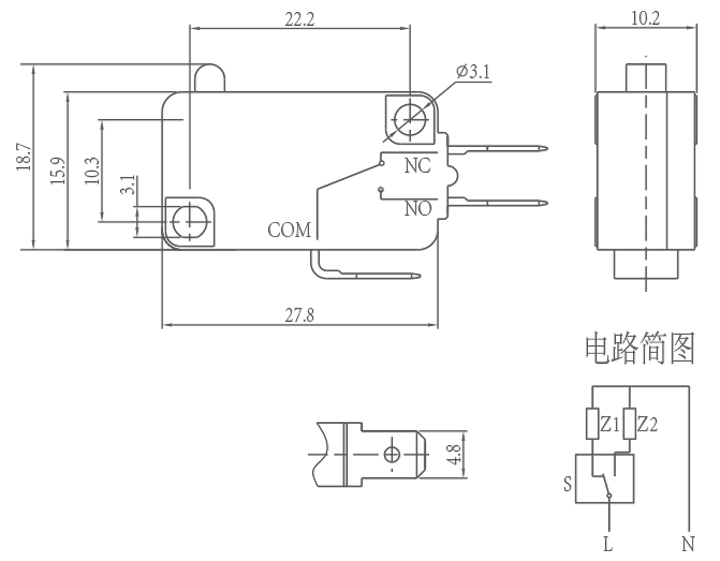

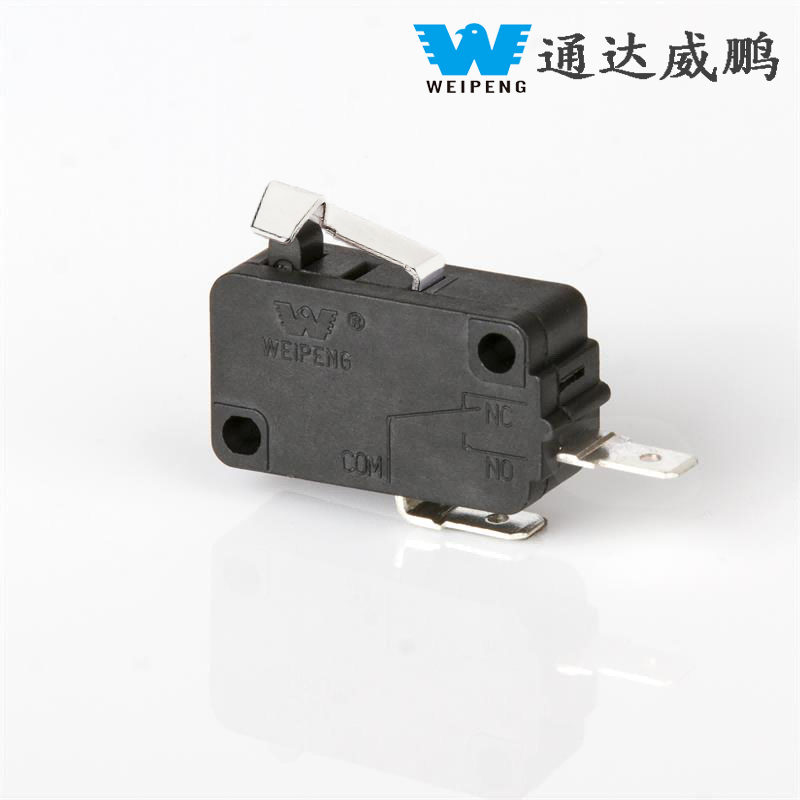

Micro Switch Details
