16A 3-Pin Self-Reset Silver Contact V7-7B17D8-201 Honeywell Replacement Micro Switch

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the 16A 3-Pin Self-Reset Silver Contact V7-7B17D8-201 Honeywell Replacement Micro Switch features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

Model:HK-14-16A-006

Send Inquiry

Product Description

WEIPENG® is a 16A 3-Pin Self-Reset Silver Contact V7-7B17D8-201 Honeywell Replacement Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-14 is a fast-action high-power micro switch that relies on an internal spring snap-action mechanism to achieve instant on/off. It has a short travel distance and sensitive triggering, allowing circuits to be switched quickly with a slight external force pressing the lever/button, without contact sticking and with stable response.

It comes standard with three terminals: COM (common), NO (normally open), and NC (normally closed). It also offers 2-pin single-circuit, 4-pin/6-pin double-pole double-throw versions:

NO (normally open): Open when not pressed, closed when pressed;

NC (normally closed): Closed when not pressed, open when pressed;

SPDT (single-pole) / DPST (double-pole) structures are optional, capable of simultaneously cutting off two power lines to enhance device power safety.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

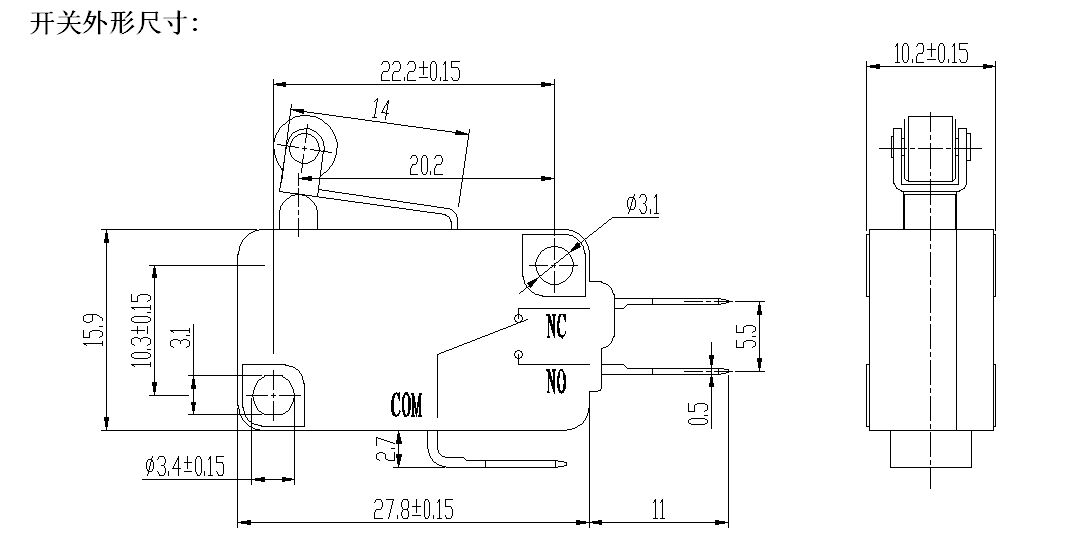

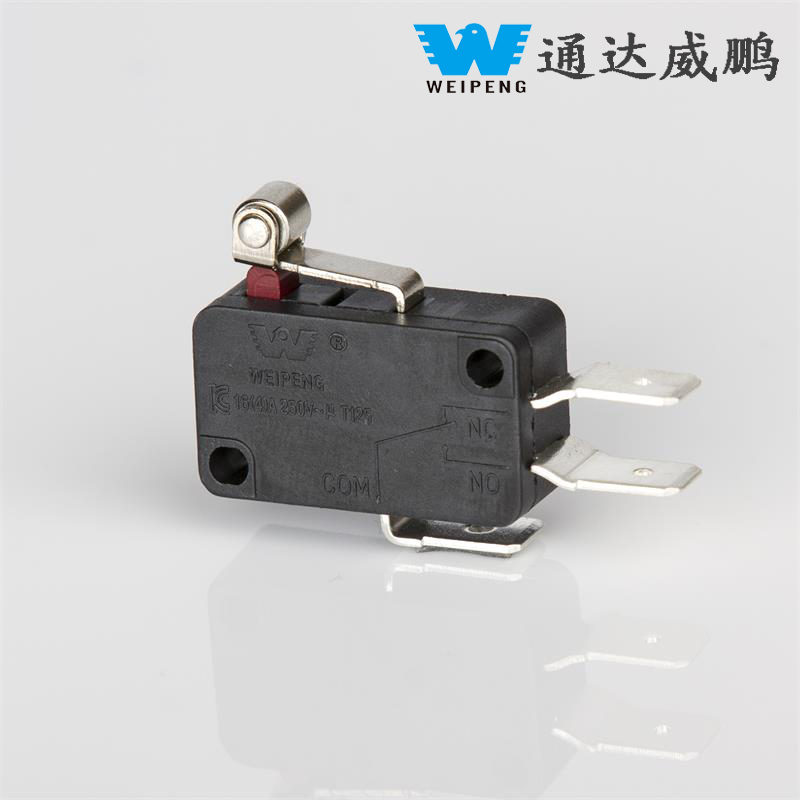

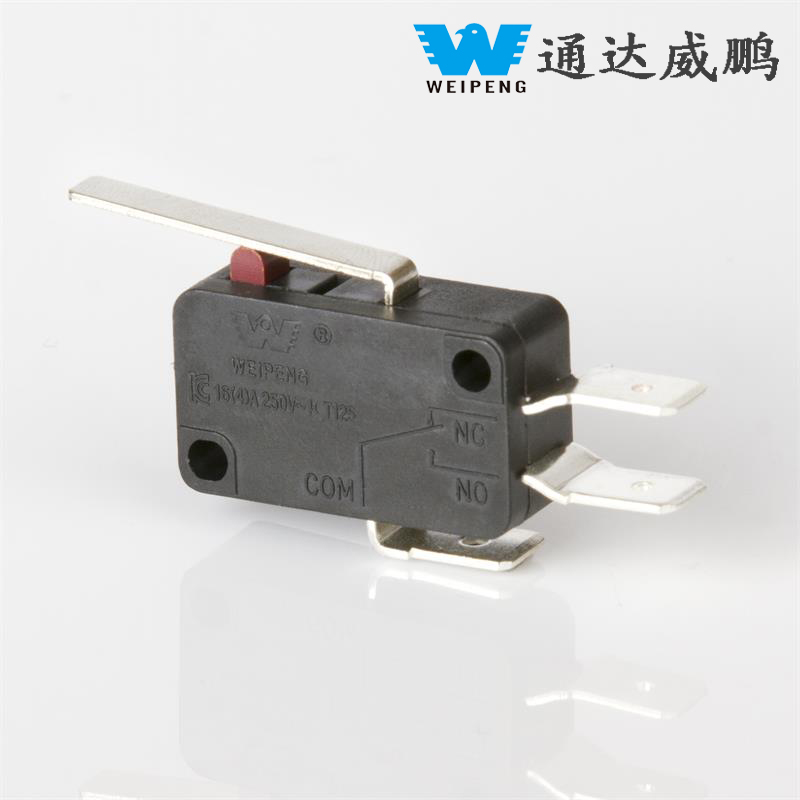

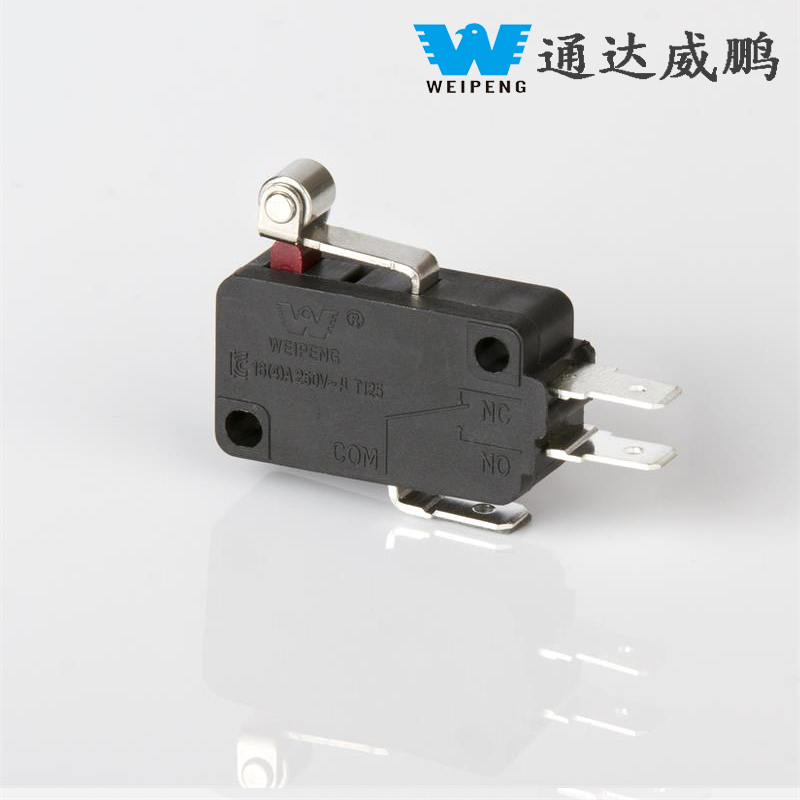

Micro Switch Details
