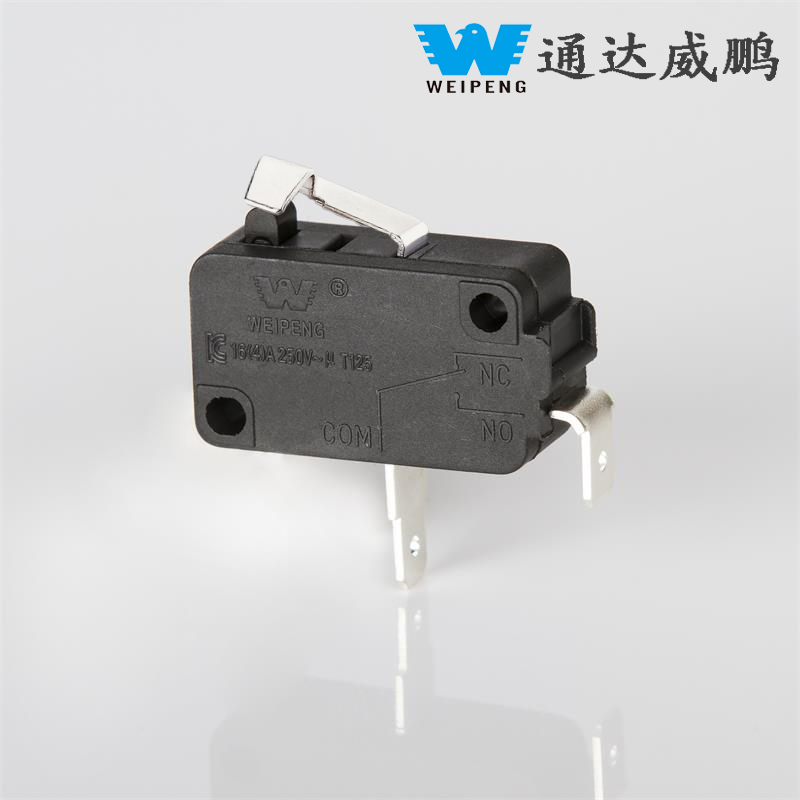

16A Arc Handle Microwave Reset Micro Switch

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the 16A Arc Handle Microwave Reset Micro Switch Resistant Micro Switch features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

Model:HK-14-1X-16A-208

Send Inquiry

Product Description

WEIPENG® is a leading 16A Arc Handle Microwave Reset Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-14 switch places great emphasis on product compliance and safety. The entire series has obtained multiple authoritative international and domestic safety certifications, including UL, C-UL, ENEC, VDE, CE, CB, TUV, and CQC, meeting the safety standards of different countries and regions. It can be directly exported to overseas markets without the need for additional compliance testing. Simultaneously, the product strictly complies with ROHS/REACH environmental directives, using eco-friendly raw materials and production processes, and contains no harmful substances. By adhering to both safety standards and environmental requirements, it meets the demands of various compliance scenarios and aligns with the current trend of green, sustainable industrial development. It can be safely used in areas with high environmental requirements, such as household appliances, medical applications, and food processing industries.

Typical Applications

Home Appliances: Door/limit sensing for microwaves, washers, ovens, rice cookers

Industrial: Automation equipment, power tools, pump/valve control, safety interlocks

Electronics: Power supplies, instruments, charging equipment, security devices

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

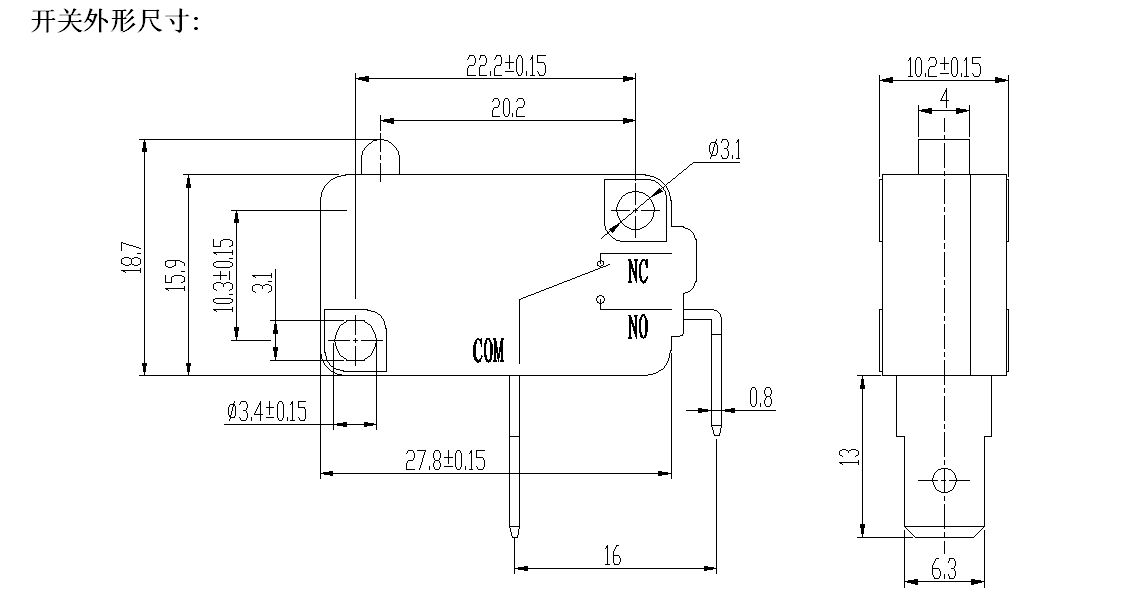

Micro Switch Details
