16A Arc Handle Rice Cooker Reset Micro Switch

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the 16A Arc Handle Rice Cooker Reset Micro Switch Resistant Micro Switch features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

Model:HK-14-1X-10A-505

Send Inquiry

Product Description

WEIPENG® is a leading 16A Arc Handle Rice Cooker Reset Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

Relying on Leqing Tongda Cable Power Plant's mature automated production line, the HK-14 type switch undergoes strict quality control from the entry of raw materials, parts processing, to finished product assembly and factory testing. Every process is managed by professional personnel to ensure consistent and stable product quality. All products are fully traceable, facilitating later quality inspection and maintenance. To meet the personalized needs of different industries and customers, the full range of this product supports model customization, such as HK-14-1-16A-108, HK-14-1X-16A-204, and other custom models. These can be precisely matched to usage requirements based on the customer's specific needs for load, triggering method, and size, improving product compatibility with equipment.

Typical Applications

Home Appliances: Door/limit sensing for microwaves, washers, ovens, rice cookers

Industrial: Automation equipment, power tools, pump/valve control, safety interlocks

Electronics: Power supplies, instruments, charging equipment, security devices

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

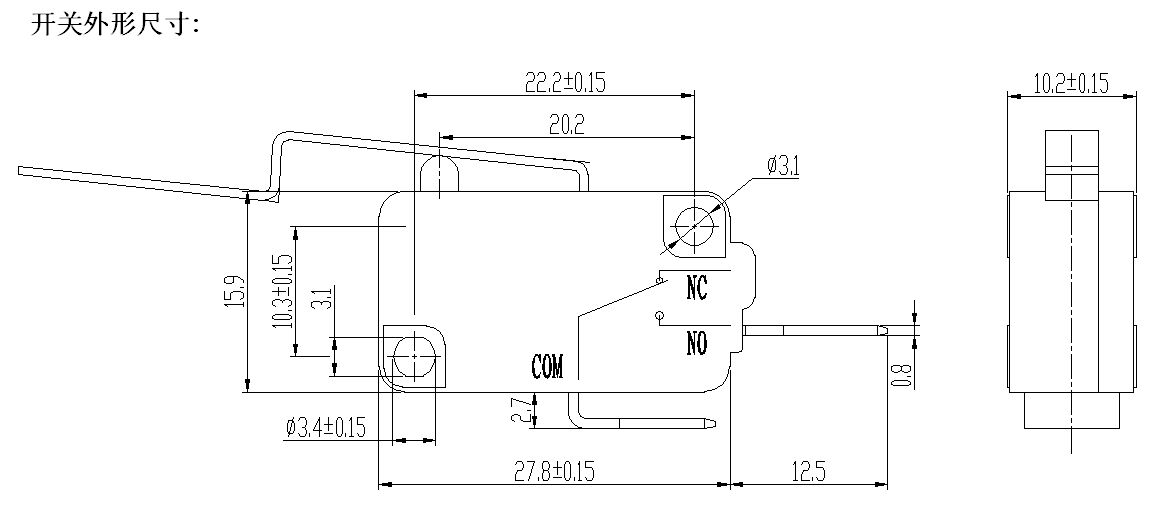

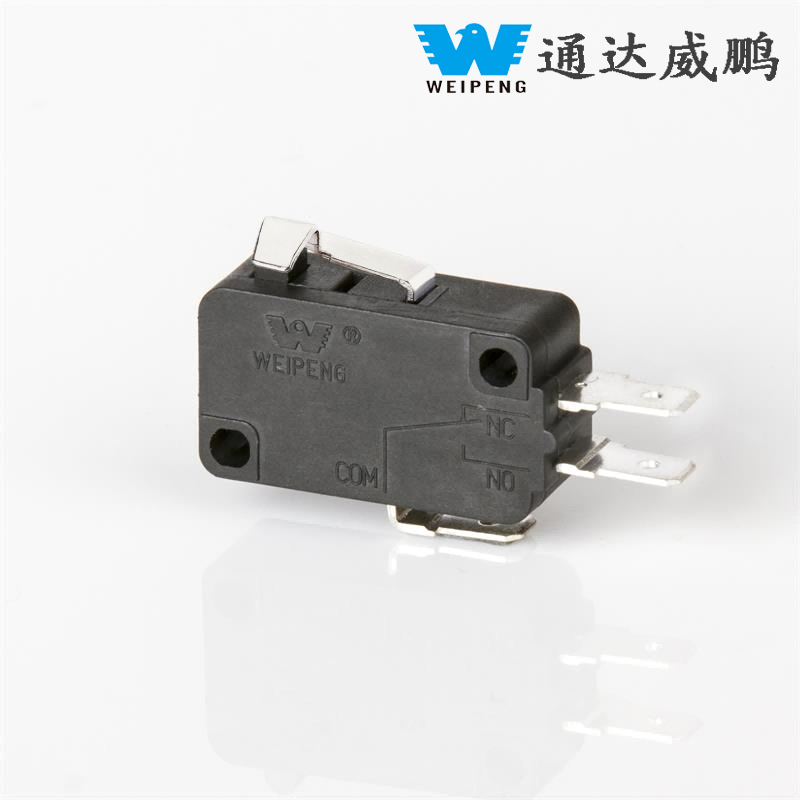

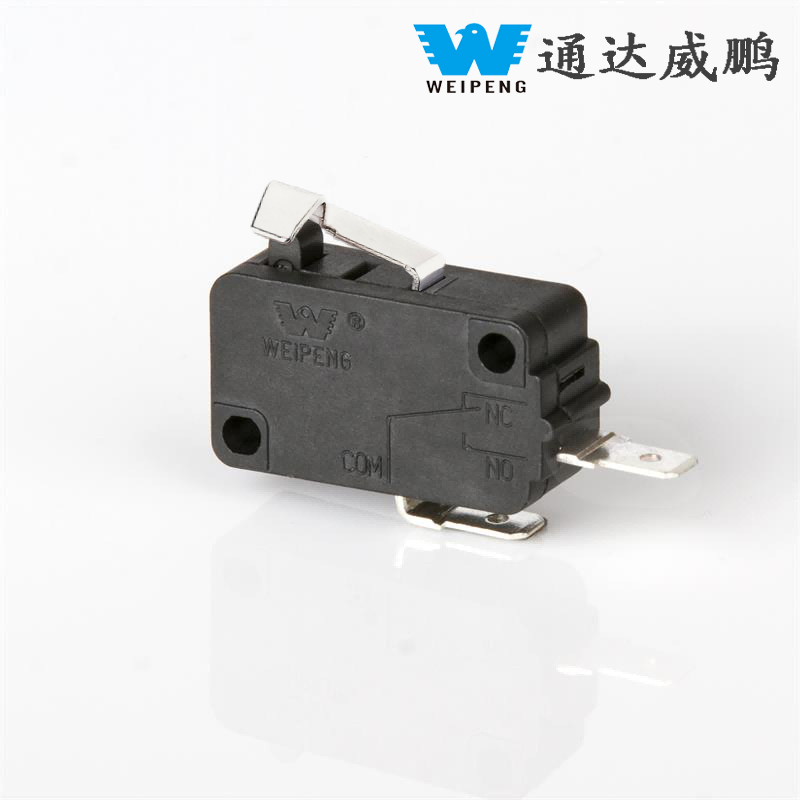

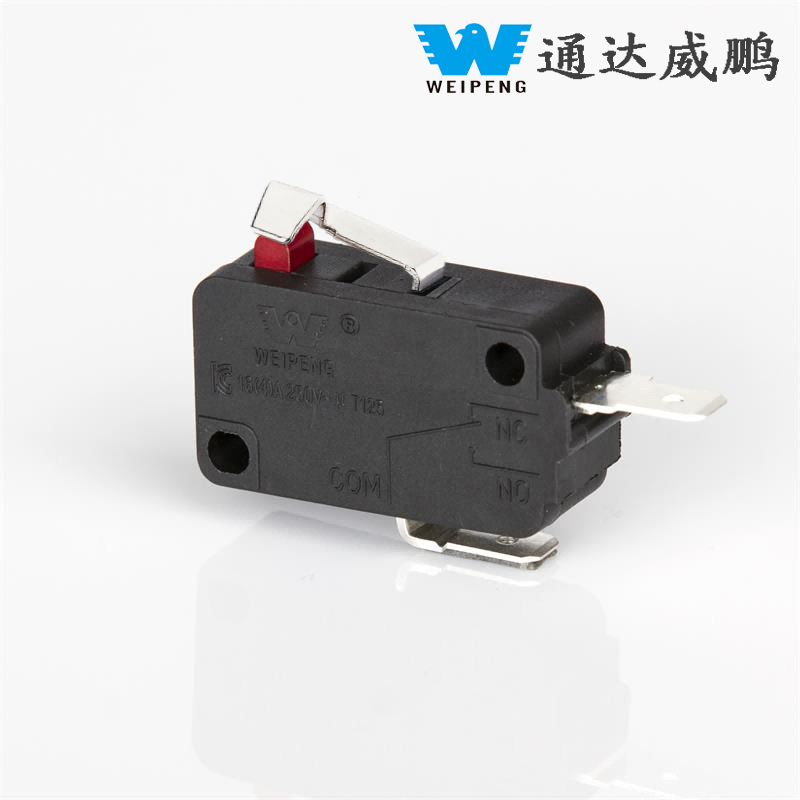

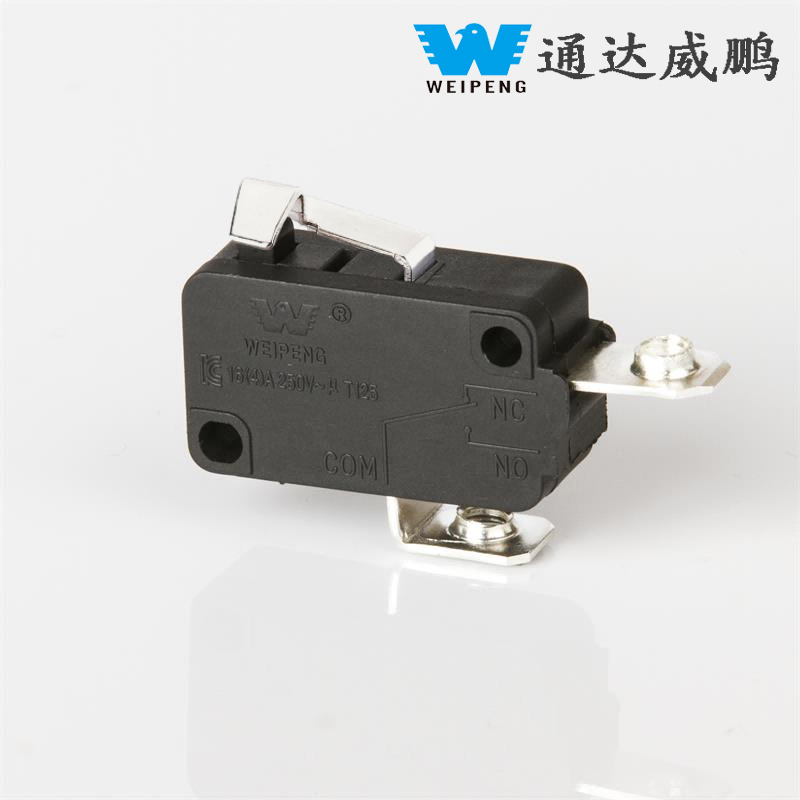

Micro Switch Details
