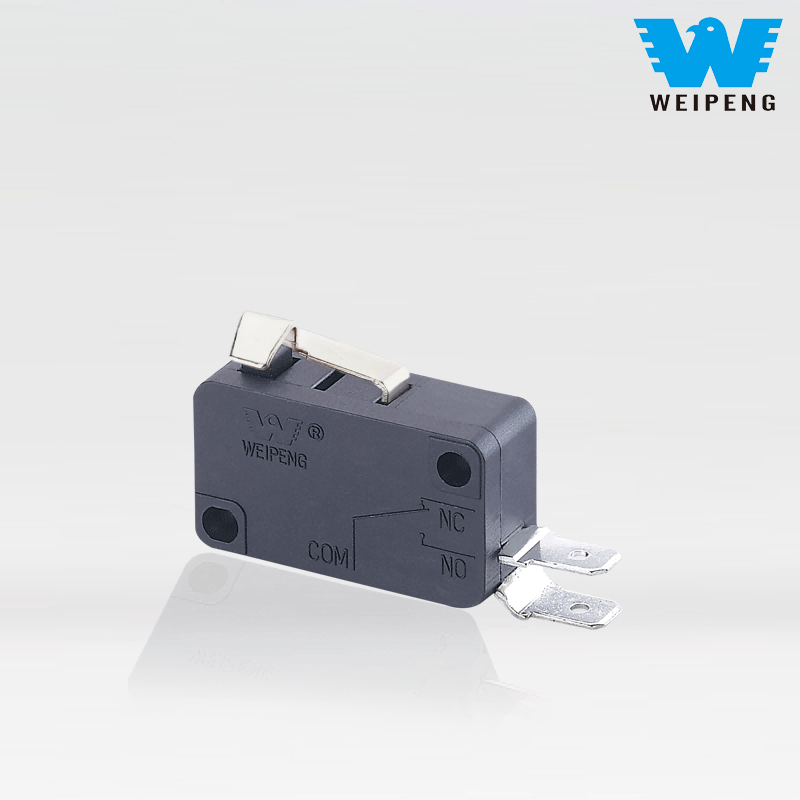

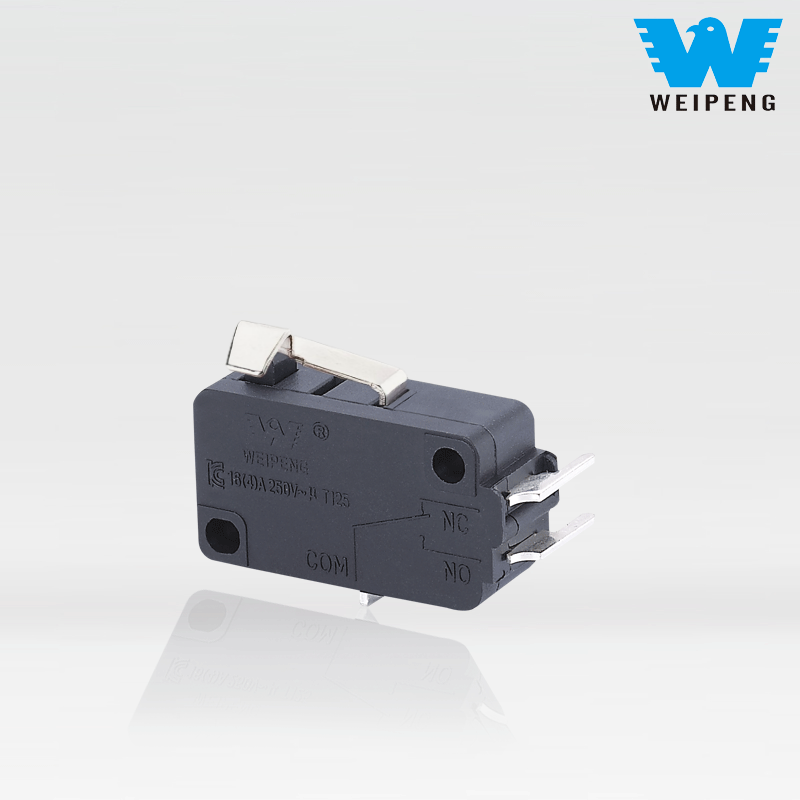

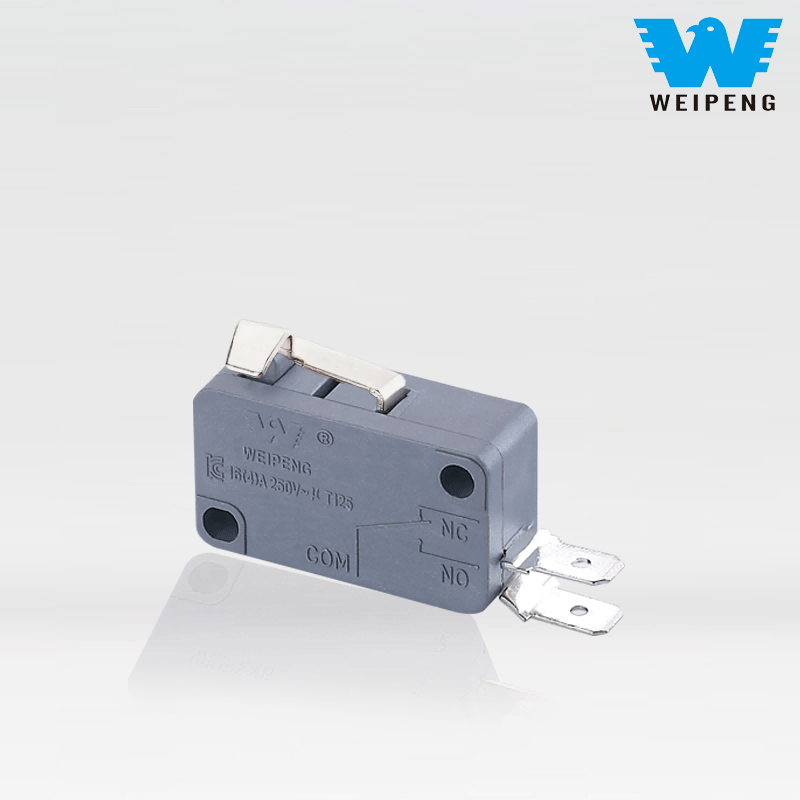

16A Curved Handle Vacuum Cleaner Appliance Accessory Micro Switch

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the 16A Curved Handle Vacuum Cleaner Appliance Accessory Micro Switch features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

Model:HK-14-1X-16A-909

Send Inquiry

Product Description

WEIPENG® is a leading 16A Curved Handle Vacuum Cleaner Appliance Accessory Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

In the civil sector, the HK-14 switch has a wide range of applications, particularly suitable for various household appliances such as microwave ovens, washing machines, rice cookers, and induction cookers, and it can also be used for the on-off control of power tools. With its reliable on-off performance and stable operating condition, this product provides precise control to ensure the normal start, operation, and stop of household appliances, effectively preventing equipment damage and safety hazards caused by switch failures. Its excellent quality has earned recognition from many well-known home appliance companies such as Midea, Galanz, and Supor, making it one of their core suppliers.

In the industrial and special sectors, the HK-14 switch also performs exceptionally well. It can serve as a limit switch or safety switch for industrial control equipment, used for travel control and safety protection in production lines, effectively ensuring the safety and efficiency of the production process. Additionally, this product is suitable for high-end fields such as automotive electronics, medical devices, and military applications. To meet the strict requirements for product reliability, environmental adaptability, and safety in these fields, the HK-14 switch has undergone special process optimization, offering advantages such as high reliability, strong anti-interference capability, and wear resistance, stably meeting the usage needs of high-end sectors and demonstrating the high-quality strength of the product.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

Micro Switch Details
