16A Micro Switch Vacuum Cleaner Accessories

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the 16A Micro Switch Vacuum Cleaner Accessories features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

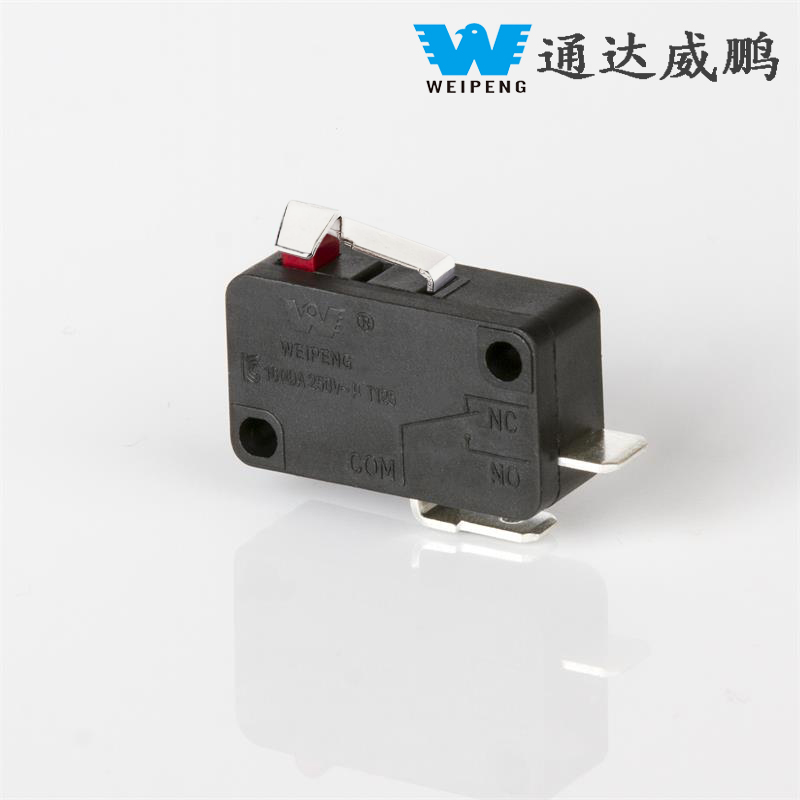

Model:HK-14-1X-16AP-805

Send Inquiry

Product Description

WEIPENG® is a leading 16A Micro Switch Vacuum Cleaner Accessories manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-14 switch from Yueqing Tongda Cable Electric Plant has established a good brand reputation in the industry due to its wide range of models, comprehensive certification guarantees, extensive application scenarios, and stable and durable product performance. It has become a long-term supply partner for many well-known companies such as Midea, Galanz, and China North Industries Group. Over the years, this product has gained unanimous recognition from clients across various industries due to its stable quality, thoughtful customization services, and comprehensive after-sales support. It not only holds an important position in the domestic market but is also exported to multiple countries and regions overseas, becoming one of Yueqing Tongda Cable Electric Plant's core flagship products.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

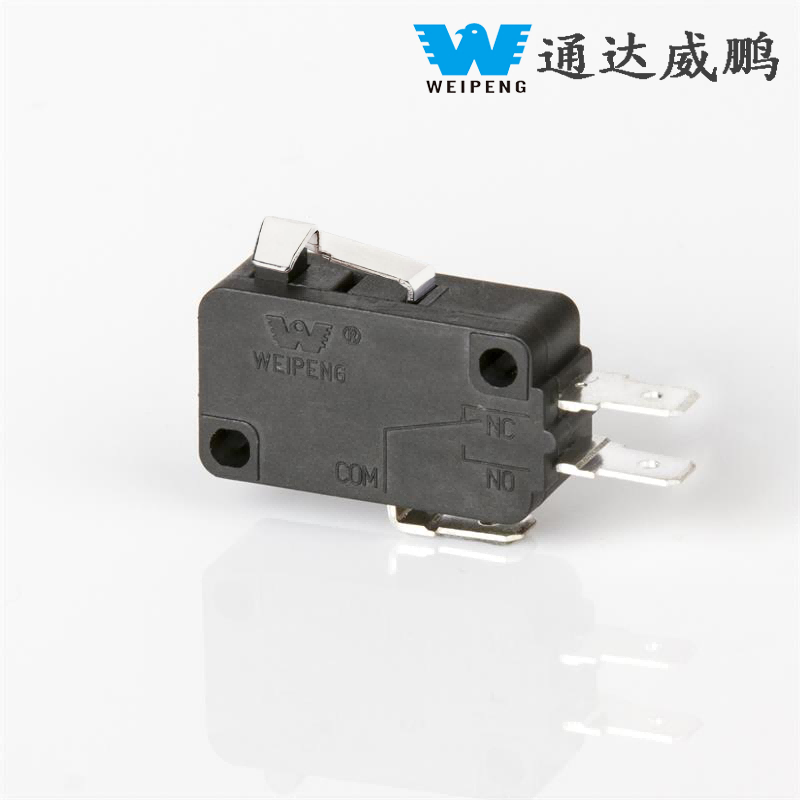

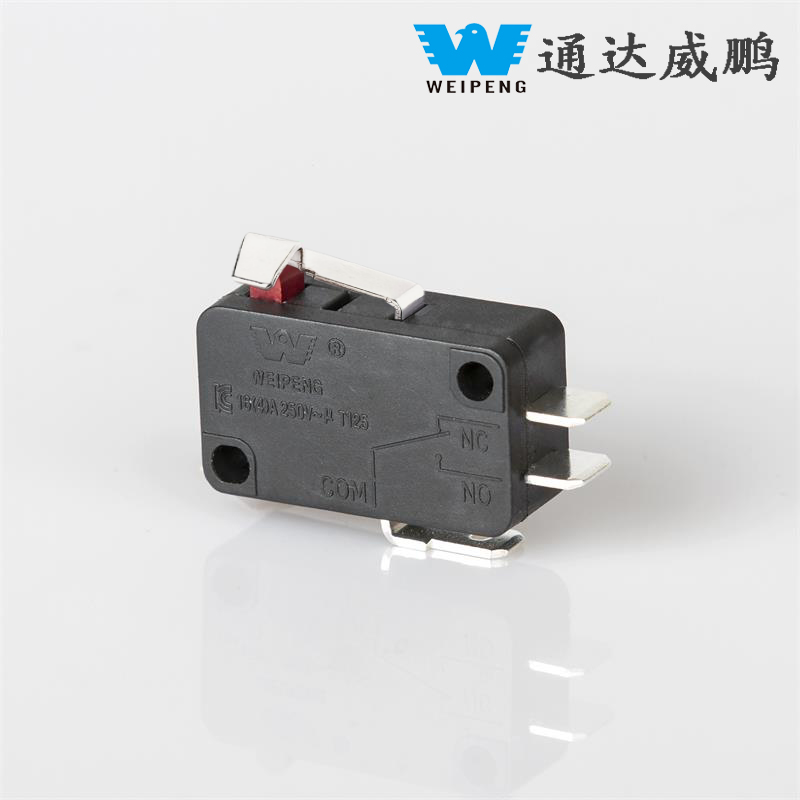

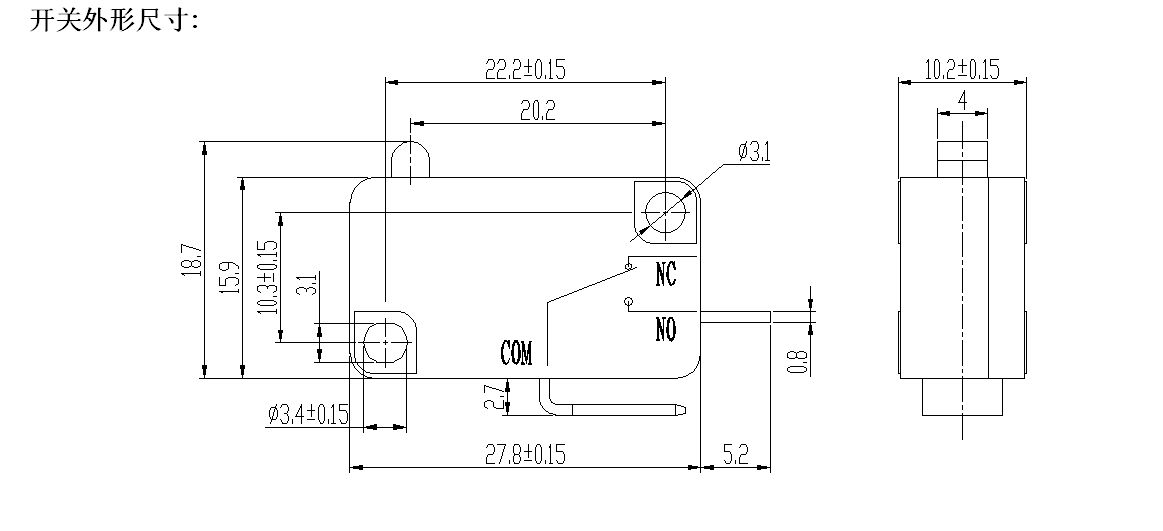

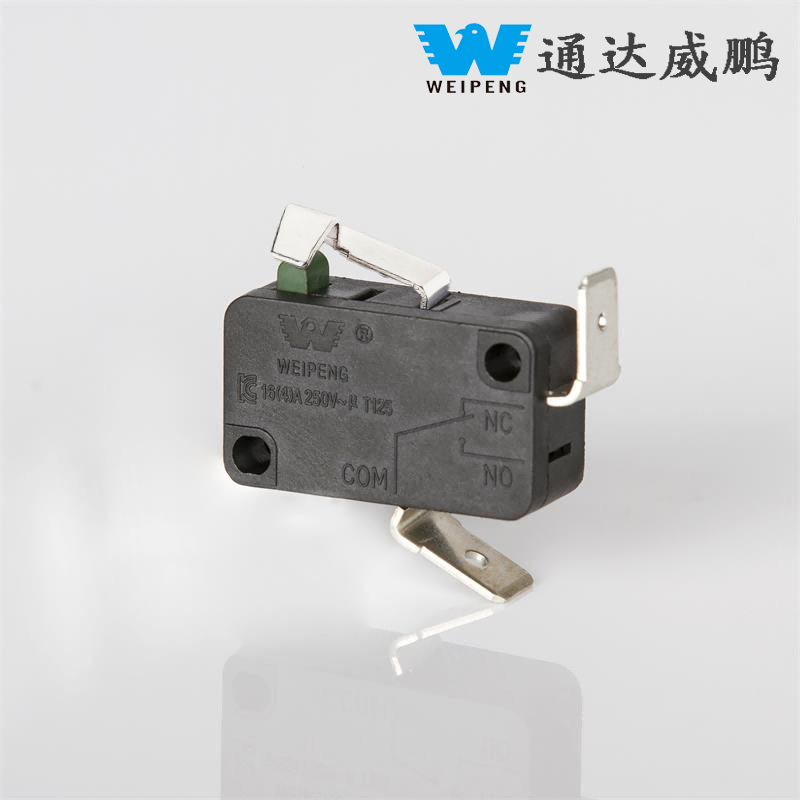

Micro Switch Details
