As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the Contact Micro Switch for Electric Ice Crusher and Vacuum Cleaner Accessories features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.
Micro Switch Introduction

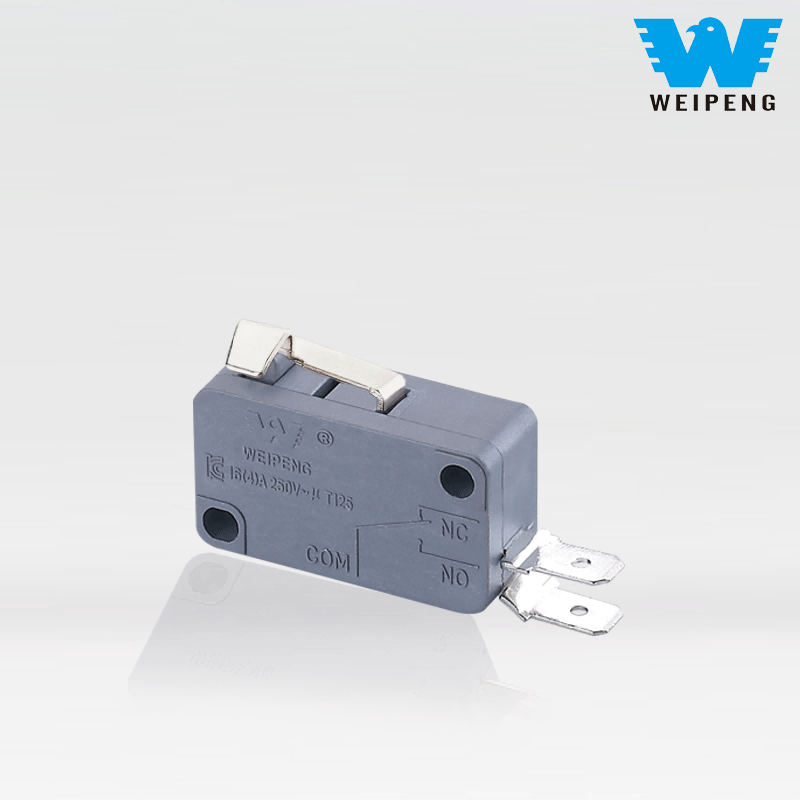

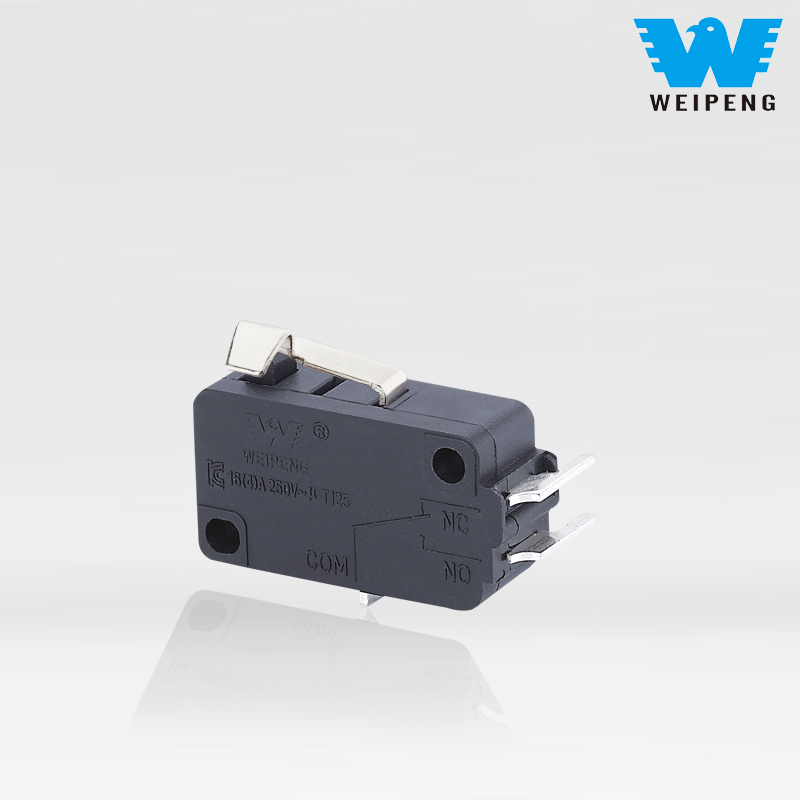

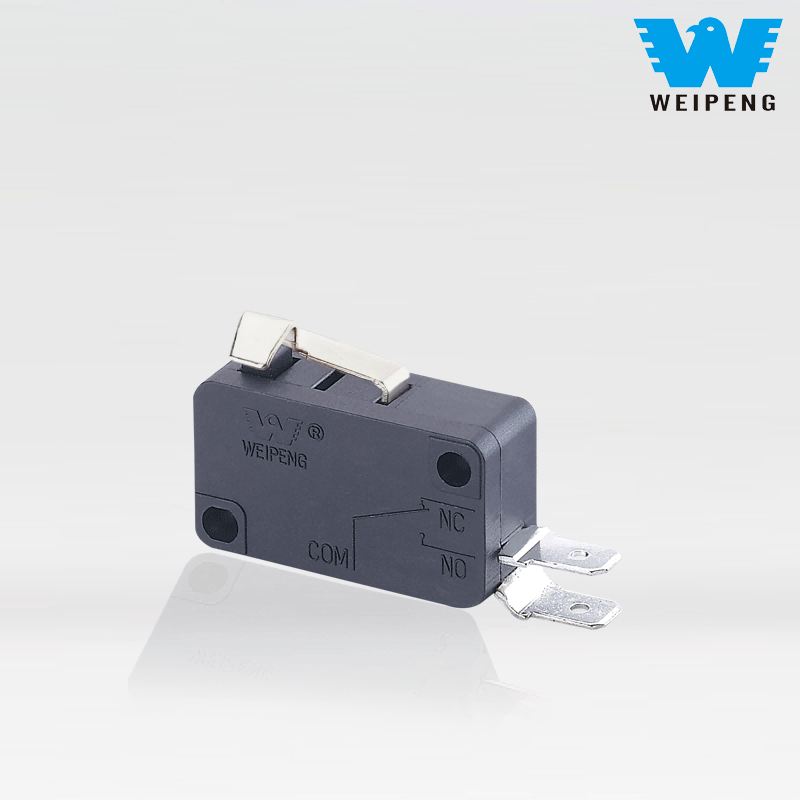

The HK-14 switch consistently adheres to WEIPENG's brand philosophy of 'Quality First, Integrity for the Long Term.' Based on a single-pole contact structure and after multiple technical optimizations, it further enhances the product's operating characteristics, offering advantages such as short operating travel, sensitive response, and stable triggering. This optimized design not only improves equipment operating efficiency and reduces operation delays, but also slows down switch wear, extends product service life, thereby reducing later maintenance and replacement costs, balancing performance and cost-effectiveness, making it a high cost-effective choice for customers in various fields.
Micro Switch Parameter (Specification)
| Switch Technical Characteristics: | |||
| ITEM | Technical Parameter | Value | |
| 1 | Electrical Rating | 5(2)A/10A/16(3)A/21(8)A 250VAC | |
| 2 | Contact Resistance | ≤30mΩ Initial value | |
| 3 | Insulation Resistance | ≥100MΩ (500VDC) | |
| 4 |
Dielectric Voltage |
Between non-connected terminals |
1000V/0.5mA/60S |
|
Between terminals and the metal frame |
3000V/0.5mA/60S | ||
| 5 | Electrical Life | ≥50000 cycles | |
| 6 | Mechanical Life | ≥1000000 cycles | |
| 7 | Operating Temperature | -25~125℃ | |
| 8 | Operating Frequency |
electrical :15 cycles Mechanical :60 cycles |
|
| 9 | Vibration Proof |
Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H |
|
| 10 |
Solder Ability : More than 80% of immersed part shall be covered with solder |
Soldering Temperature :235±5℃ Immersing Time :2~3S |
|
| 11 | Solder Heat Resistance |
Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S |
|
| 12 | Safety Approvals | UL、CSA、VDE、ENEC、TUV、CE、KC、CQC | |
| 13 | Test Conditions |
Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa |
|
Micro Switch Feature and Application

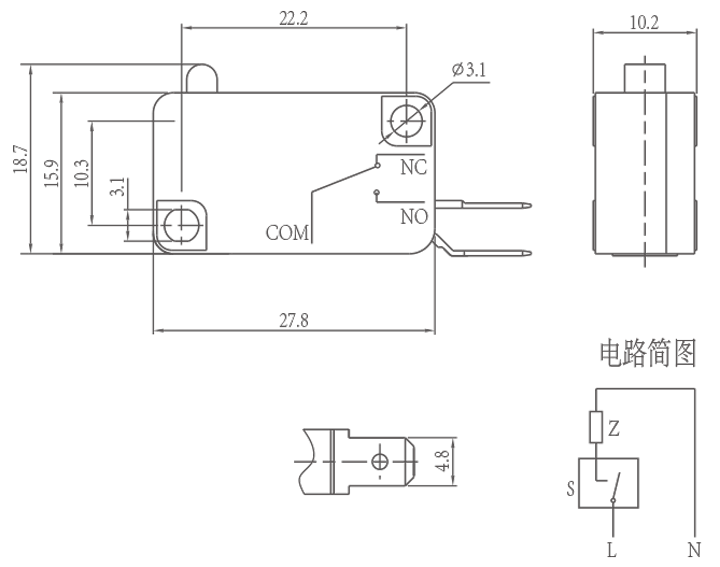

Micro Switch Details
