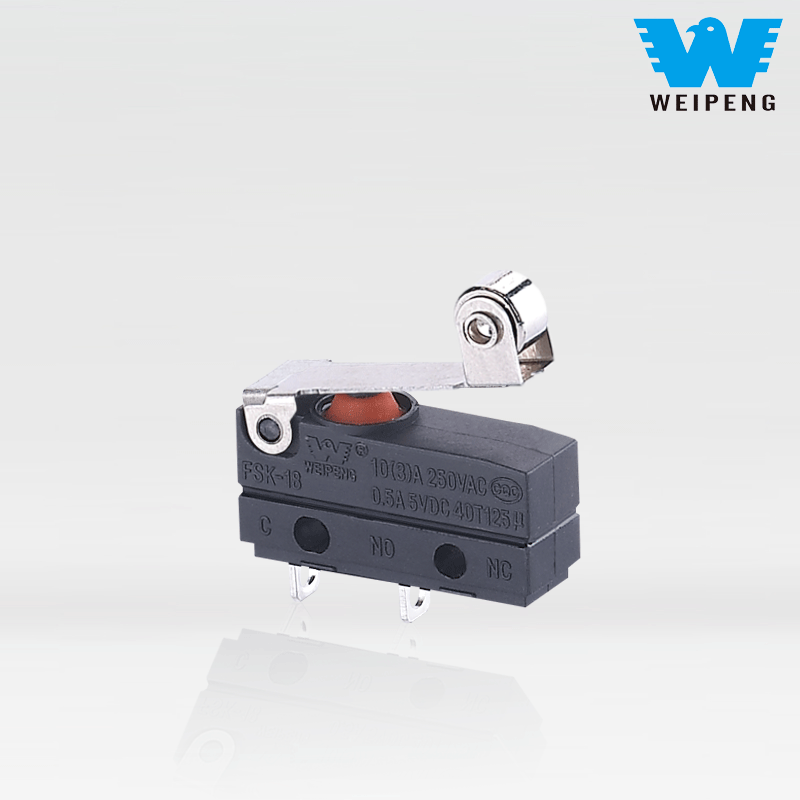

DC2C A1LB Waterproof Micro Switch with Lever

As a benchmark product of Yueqing Tongda Cable Electric Factory (WEIPENG brand) in the field Waterproof Micro Switch, DC2C A1LB Waterproof Micro Switch with Lever has become a trusted choice in industrial control, automotive electronics, smart home, and other fields, thanks to its core advantages of 'IP67 protection, high mechanical strength, and full-scenario adaptability' after market validation.

Model:FSK-18-D-004

Send Inquiry

Product Description

WEIPENG® is a leading China DC2C A1LB Waterproof Micro Switch with Lever manufacturers, suppliers and exporter.

Waterproof Micro Switch Introduction

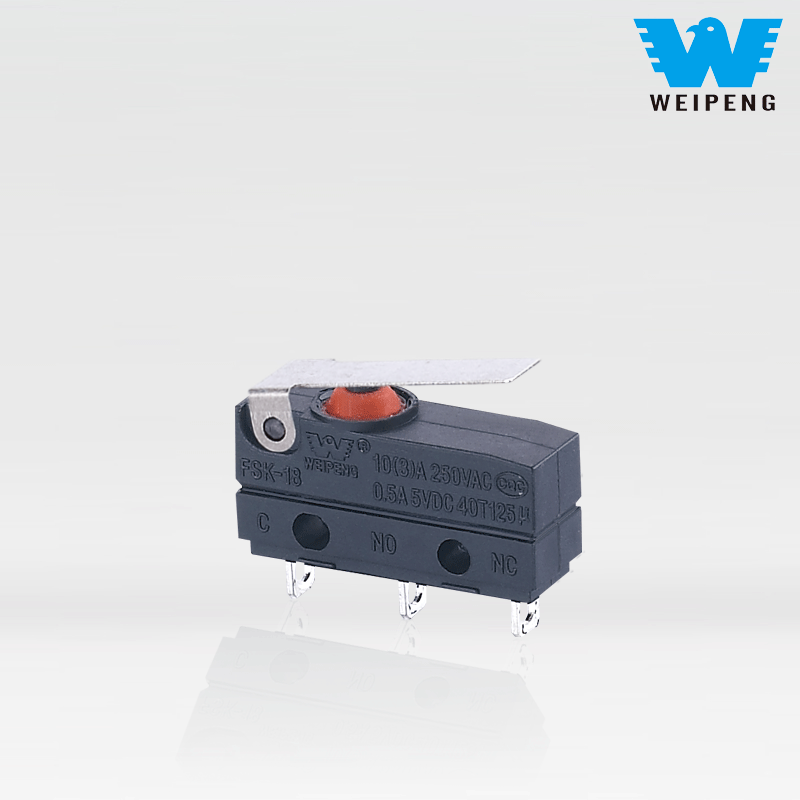

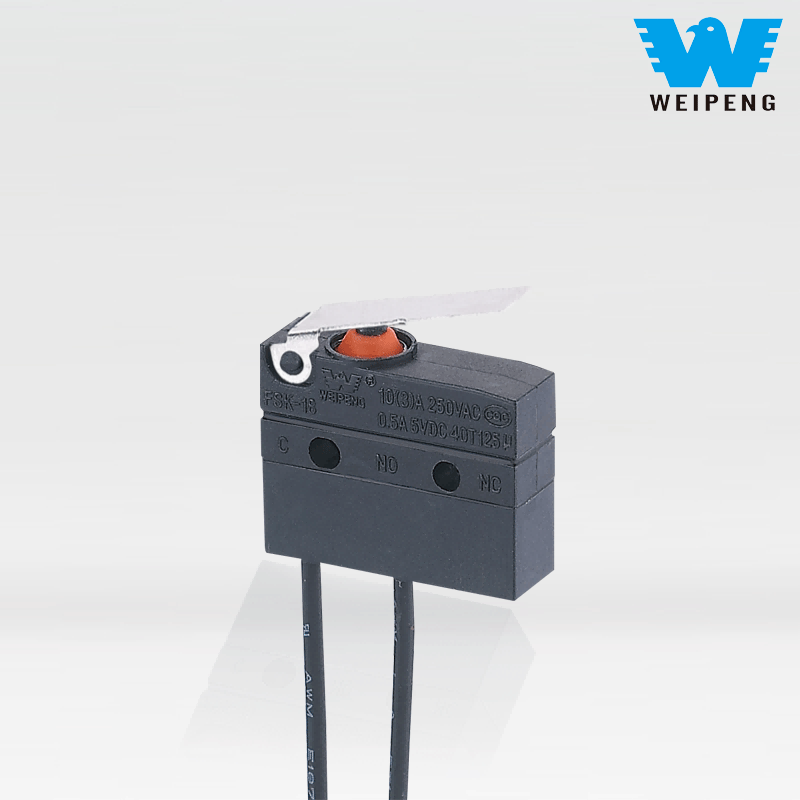

FSK-18 is fully sealed snap-action micro switch with integrated multi-layer silicone gasket and ultrasonic glue sealing design, reaching IP67 dustproof & waterproof rating. It effectively blocks splashing water, cleaning mist, desert sand and oil mist, avoiding short circuit and contact oxidation caused by liquid or dust intrusion, ideal for harsh outdoor equipment in GCC and North Africa markets.

Waterproof Micro Switch Application

Household appliances：Waterproof micro switches are widely used in household appliances, such as washing machines, refrigerators, air conditioners, etc. Its waterproof performance can protect the normal operation of the switch in wet environment.

Waterproof Micro Switch Parameter (Specification)

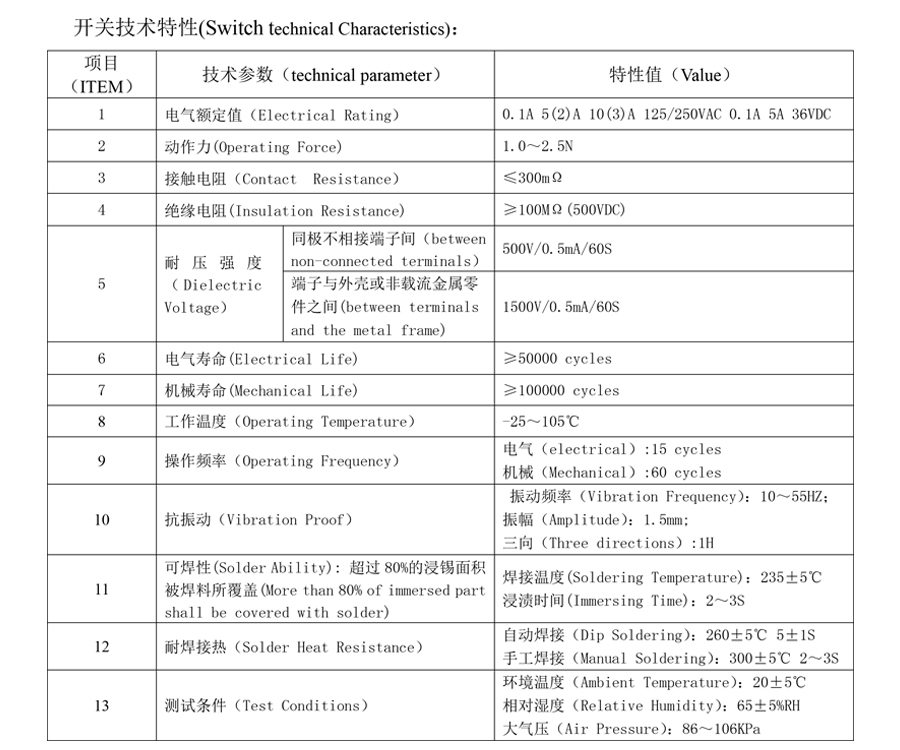

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
