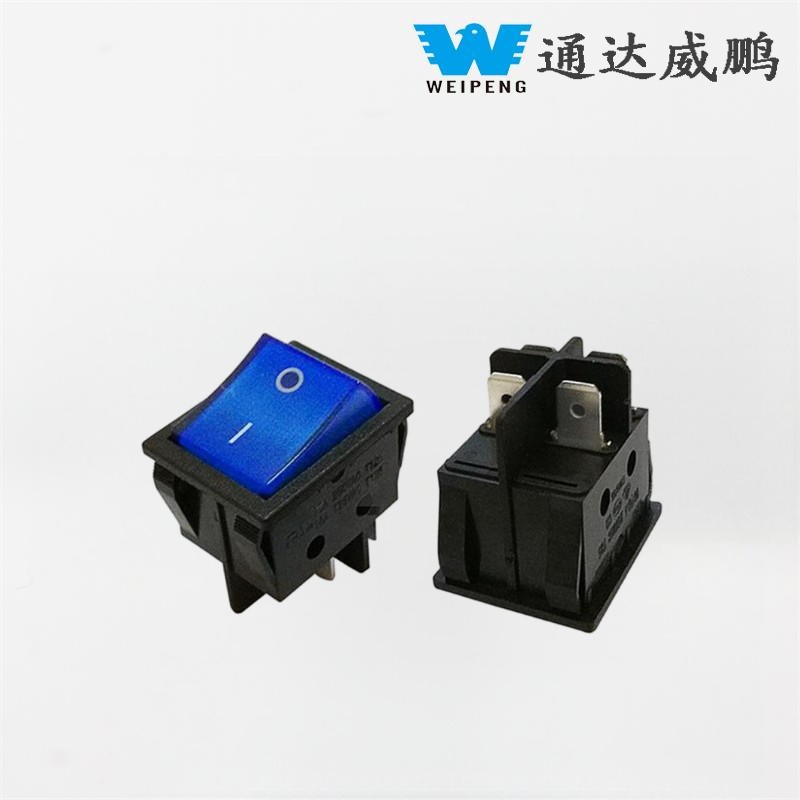

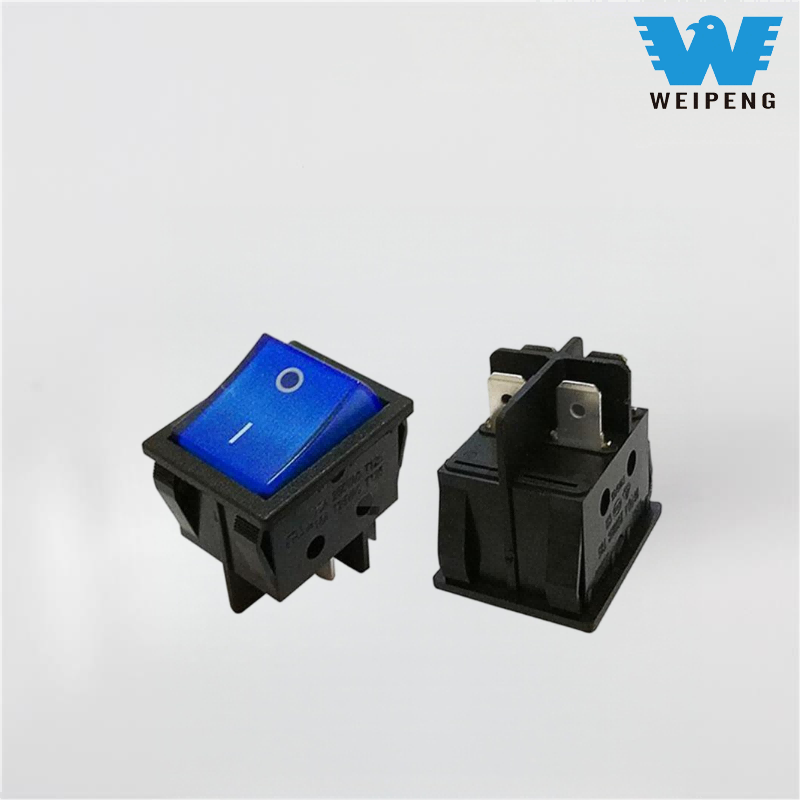

Four-Legged Two-Position Boat Switch with Blue Indicator Light

WEIPENG® is a renowned manufacturer and supplier of TongDa Rocker Switch Supply Socket in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On Ff On Round Rocker Switch requirements in China.

Model:KCD4-201

Send Inquiry

Product Description

WEIPENG® is a leading Four-Legged Two-Position Boat Switch with Blue Indicator Light manufacturers, suppliers and exporter.

TongDa Rocker Switch Feature

The LED indicator module with a lighted design has been specially optimized: it uses high-brightness surface-mount LEDs, supports red, green, and blue color options, and operates over a voltage range of 5V-36V, making it compatible with low-voltage household devices (such as 12V smart panels) and high-voltage industrial scenarios (such as 24V equipment). The LED light-transmitting area features a frosted optical design, providing uniform light without glare, with brightness controlled at 50-150 cd/m², clearly visible during the day and not dazzling at night. The indicator logic supports two customizable modes, "on when powered, off otherwise" and "off when powered, on otherwise," to meet the status feedback needs of different devices — for example, commercial equipment often uses "green light on when powered" to indicate normal operation, while industrial equipment can customize "red light on when faulty" to signal abnormalities, completely solving the misjudgment issues caused by traditional rocker switches' blind operation.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Rocker Switch Application

Smart lighting panel: Compatible with 12V low-voltage smart panels, a green light indicates that the lighting is on. With remote control via the app, users can quickly determine the device status through the lighting. After being adopted by a leading smart home brand, the user misoperation rate decreased by 45%.

Kitchen appliances: Used for power control of dishwashers and ovens, a red light indicates that the device is operating, preventing accidental shutdown. After being applied by a certain appliance manufacturer, inquiries from users about 'not knowing whether the device is running' decreased by 60%.

Workshop equipment: Compatible with small conveyor equipment and heating lamps, the 24V high-voltage version with lights supports "green light for operation, red light for fault." Workers can judge the equipment status through the lights. After use in a certain machinery factory, production accidents caused by misoperation decreased by 50%.

Outdoor equipment: The waterproof version with lights is used for outdoor advertising lightboxes and charging piles. With IP67 protection against rain, the green light indicates that the equipment is available, allowing users to quickly identify it. A certain outdoor engineering company reported that equipment utilization increased by 30% due to "visible status."

TongDa Rocker Switch Details
