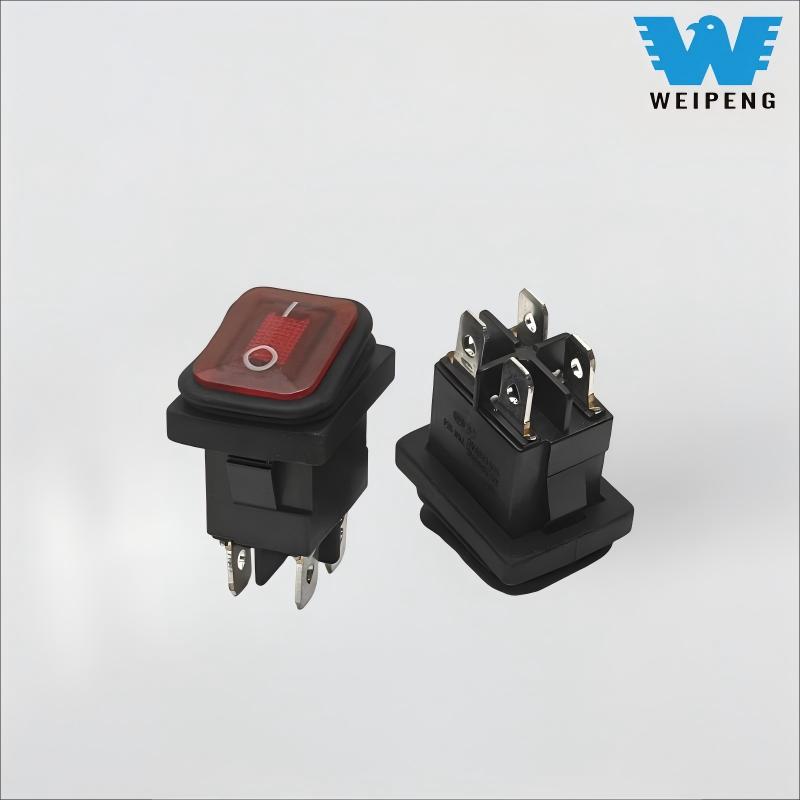

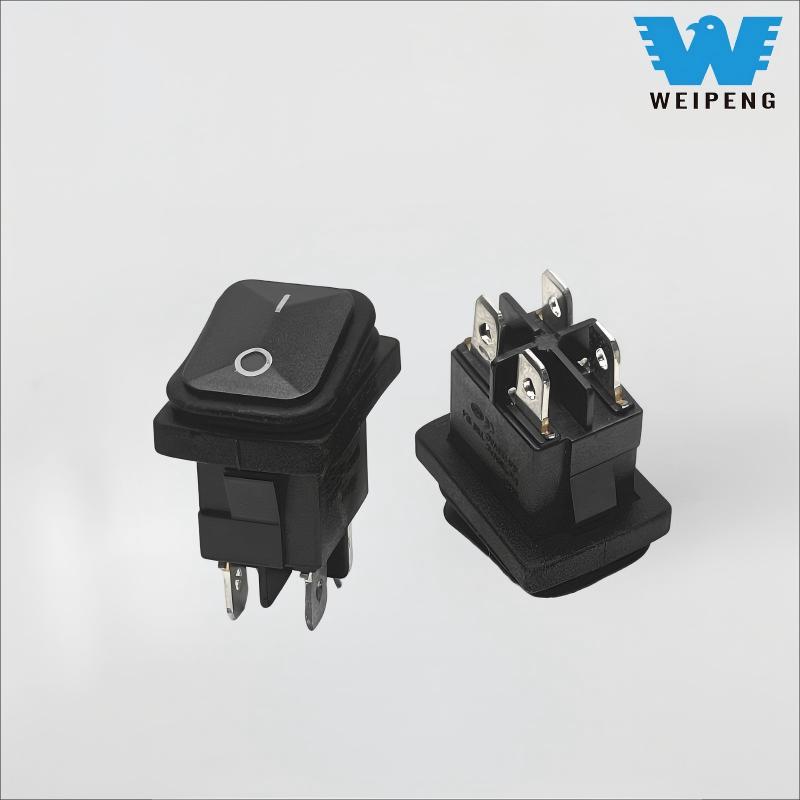

Four-Legged Waterproof Boat-Shaped Switch

WEIPENG® is a renowned manufacturer and supplier of Four-Legged Waterproof Boat-Shaped Switch in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On OFF Round Rocker Switch requirements in China.

Model:KCD1-104

Send Inquiry

Product Description

WEIPENG® is a leading Four-Legged Waterproof Boat-Shaped Switch manufacturers, suppliers and exporter.

Tongda Rocker Switch Feature

Our waterproof sealed rocker switch adopts integral rubber sealing gaiter to reach IP65/IP67 dustproof & waterproof grade, fully blocking splashing water, dust, sand and oil mist. The heavy-duty DPST design supports maximum 20A 12/24VDC high current load, built with thickened brass terminals and wear-resistant silver contact pieces. It withstands wide temperature range from -40℃ to +85℃, and passes strict vibration & shock tests to adapt bumpy outdoor working conditions. Anti-corrosion shell material avoids aging under long-time sunlight exposure, with optional 3-position center-off function for multi-circuit control.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		6A/10A 250VAC 16A 125VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-20~85℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

Tongda Rocker Switch Application

Widely used in daily electric products and light industrial equipment. It fits kitchen appliances, ventilation devices and lighting systems for home use. For workshop and production sites, it works perfectly with power tools, testing meters and small machinery. It is also a standard component for power supplies and vehicle auxiliary equipment.
