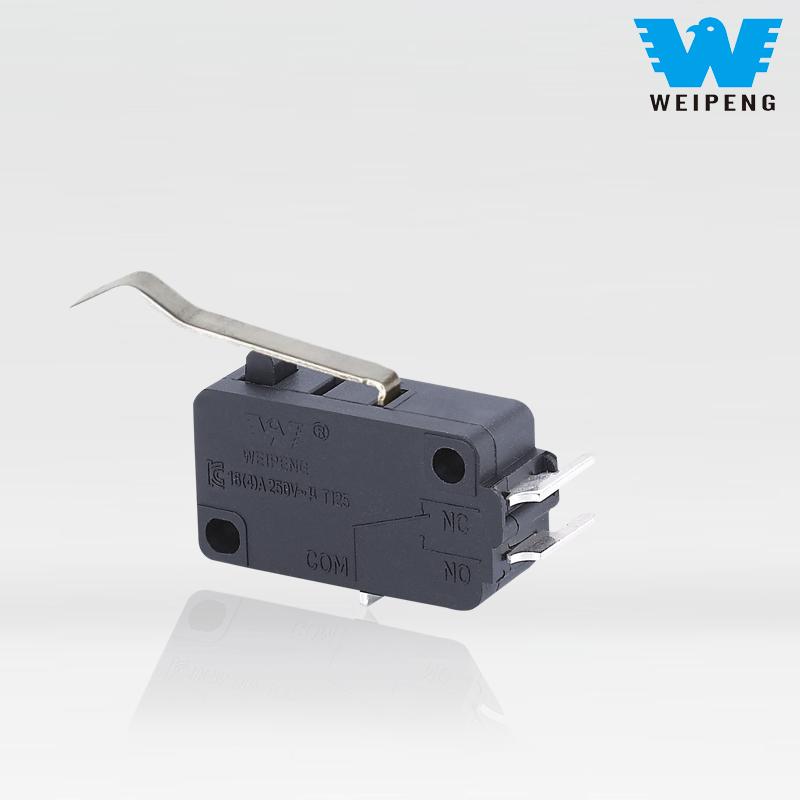

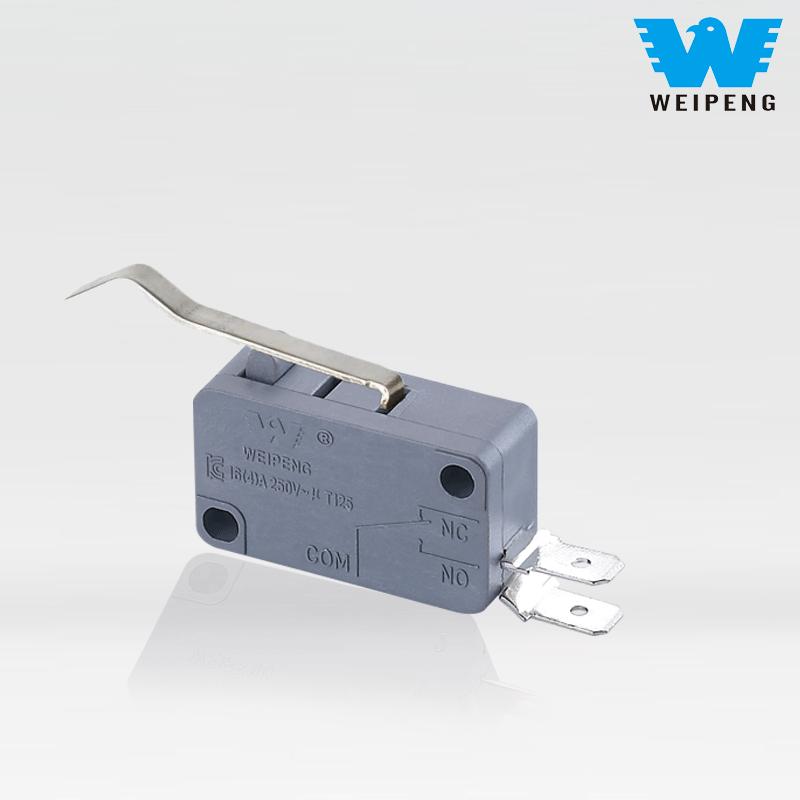

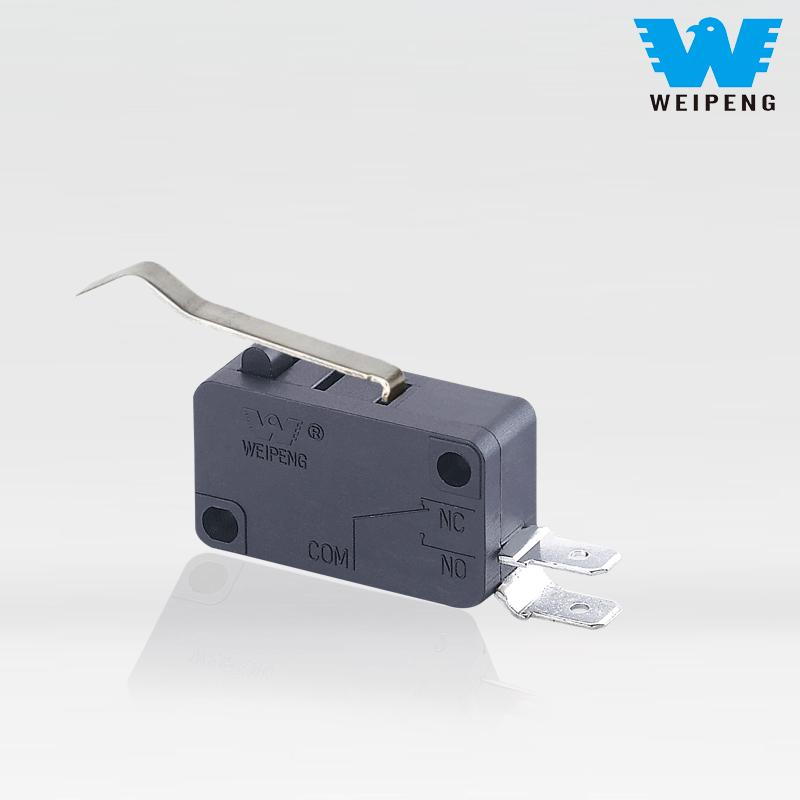

High-Current Certified Three-Pin Micro Switch

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the High-Current Certified Three-Pin Micro Switch features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism. Its performance and reliability have been certified by multiple authoritative organizations worldwide, securing its mainstream position in the niche market.

Model:HK-14-10A-302

Send Inquiry

Product Description

WEIPENG® is a leading High-Current Certified Three-Pin Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-14 series offers highly flexible customization options to meet differentiated application requirements. Operating force can be customized (less than 5.0 N in the lever-free state, standard 30±15 gf), with an operating stroke range of 0.6–1.5 mm, suitable for different trigger force and displacement scenarios. Lever styles are customizable, including straight, bent, and roller levers, which can match various mechanical transmission structures. Contact forms cover the full range of SPDT (1NO 1NC), NO, and NC.

The product has obtained major global safety certifications including UL, C-UL, ENEC, VDE, CE, CB, TUV, CQC, and KC, complies with the IEC 61058 standard, and meets market access requirements in Europe, America, Asia-Pacific, and other regions. The company has been certified under the ISO9001 and IATF 16949 quality management systems and strictly implements the RoHS and REACH environmental directives, achieving refined control throughout the entire production process. Leveraging 6 national invention patents and 48 utility model patents, the HK-14 series reaches industry-leading levels of reliability and consistency.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.
