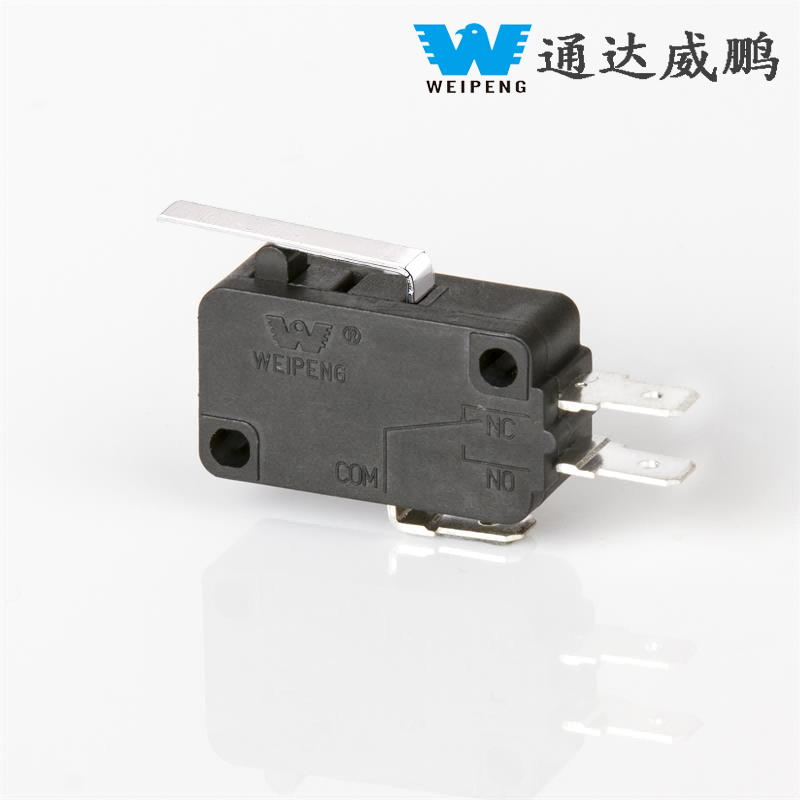

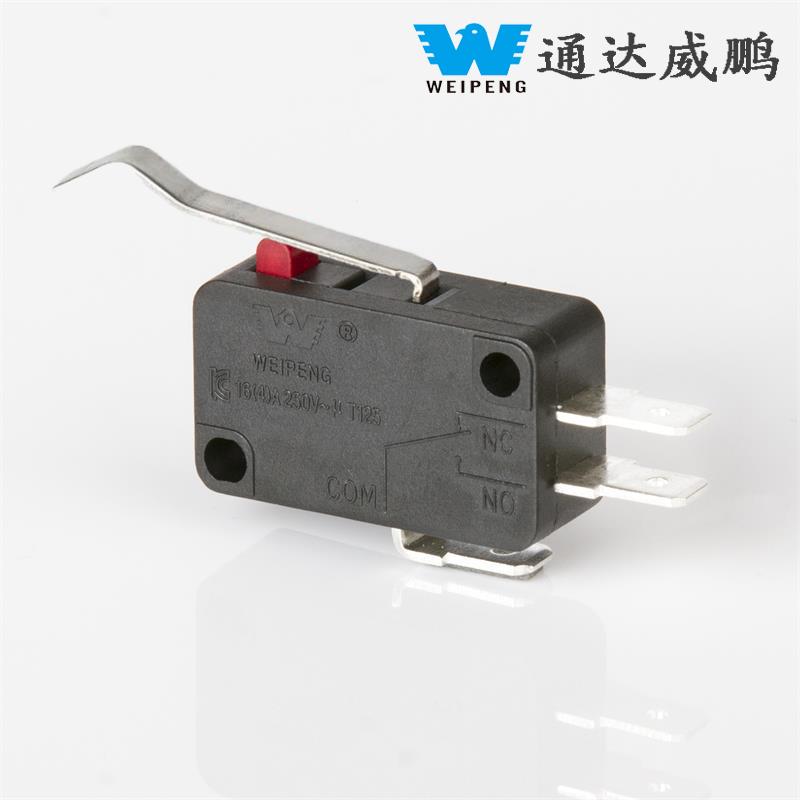

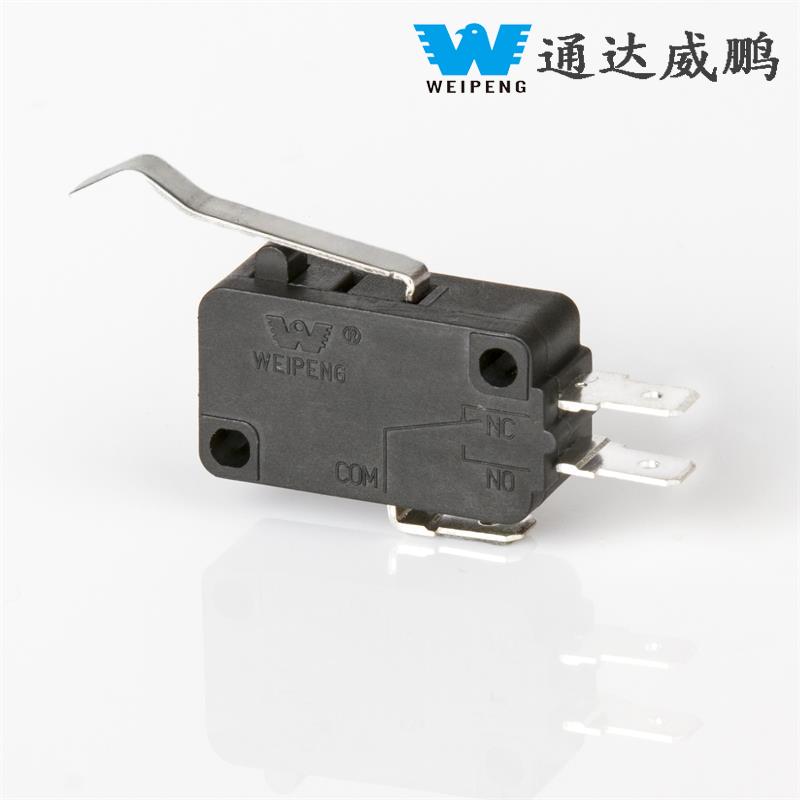

High-Current Three-Pin Micro Switch for Microwave Ovens and Washing Machines

The HK-14 series covers multiple rated loads, with mainstream specifications including 5A/10A/16A at 125/250V AC, meeting power requirements for various scenarios. The core electrical performance is excellent: initial contact resistance ≤25mΩ, ensuring low-loss conduction; insulation resistance ≥100MΩ (DC 500V), with a withstand voltage of 1500V AC (between terminals), effectively preventing leakage risks. The mechanical lifespan reaches up to 1 million cycles, and the electrical lifespan is suitable for long-term high-frequency use, with an operating frequency of up to 600 mechanical cycles per minute and 30 electrical cycles per minute, balancing durability and response speed.

Installation and Usage Guidelines

When installing, the switch must be mounted on a flat surface and fastened with a flat washer or spring washer to prevent malfunction or casing damage caused by uneven surfaces. Choose models based on the environment: for humid or dusty conditions, it is recommended to use a sealed custom version to enhance protection. Do not apply lubricating oil to the button or actuator to prevent contact sticking, functional failures, or even burnout. During storage, keep the product in a dry, ventilated area, protected from rain or snow, and avoid high temperature and humidity that may cause component aging, ensuring the product retains its original performance.
