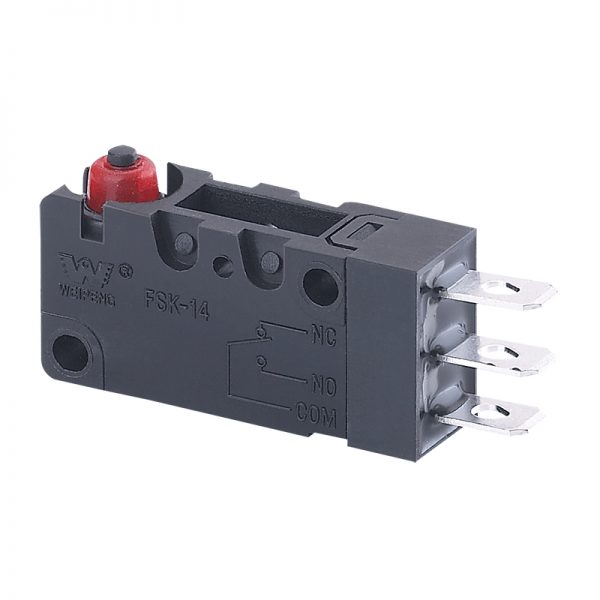

IP67 Waterproof MiNi Micro Switch
  • IP67 Waterproof MiNi Micro SwitchIP67 Waterproof MiNi Micro Switch

IP67 Waterproof MiNi Micro Switch

WEIPENG® has established itself as a top-tier IP67 Waterproof Micro Switch manufacturer and supplier in China, providing quality IP67 Waterproof MiNi Micro Switch solutions for many years. Welcome to contact us.

Model:FSK-14-5A-007-TD1.125

Send Inquiry

Product Description


WEIPENG® is a leading China IP67 Waterproof MiNi Micro Switch manufacturers, suppliers and exporter.

Tongda Wire Electric IP67 Waterproof MiNi Micro Switch Introduction


Waterproof micro switch is a small contact interval and fast moving mechanism, with the specified stroke and the specified force for switching action contact structure, covered by the shell, its external drive rod is a waterproof switch. Contact: In the type of waterproof micro switch, and has the characteristics of waterproof micro switch compared to the semiconductor switch, through the mechanical switch of the contact to achieve the switch function


Tongda Wire Electric IP67 Waterproof MiNi Micro Switch Technical


Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 5 (2)A 125/250VAC 10(3) 125V/250VAC
2 Operating Force 1.0~5.0N
3 Pretravel 0.6~1.5mm
4 Contact Resistance ≤50mΩ  Initial value
5 Insulation Resistance ≥100MΩ  (500VDC)
6
Dielectric
Voltage
Between
non-connected terminals
500V/0.5mA/60S
Between terminals
and the metal frame
1500V/0.5mA/60S
7 Electrical Life ≥10000 cycles
8 Mechanical Life ≥100000 cycles
9 Operating Temperature -25~85℃
10 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
11 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude :1.5mm;
Three directions :1H
12 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time : 2~3S
13 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
14 Safety Approvals UL、CSA、CQC
15 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa

Tongda Wire Electric IP67 Waterproof MiNi Micro Switch Details
