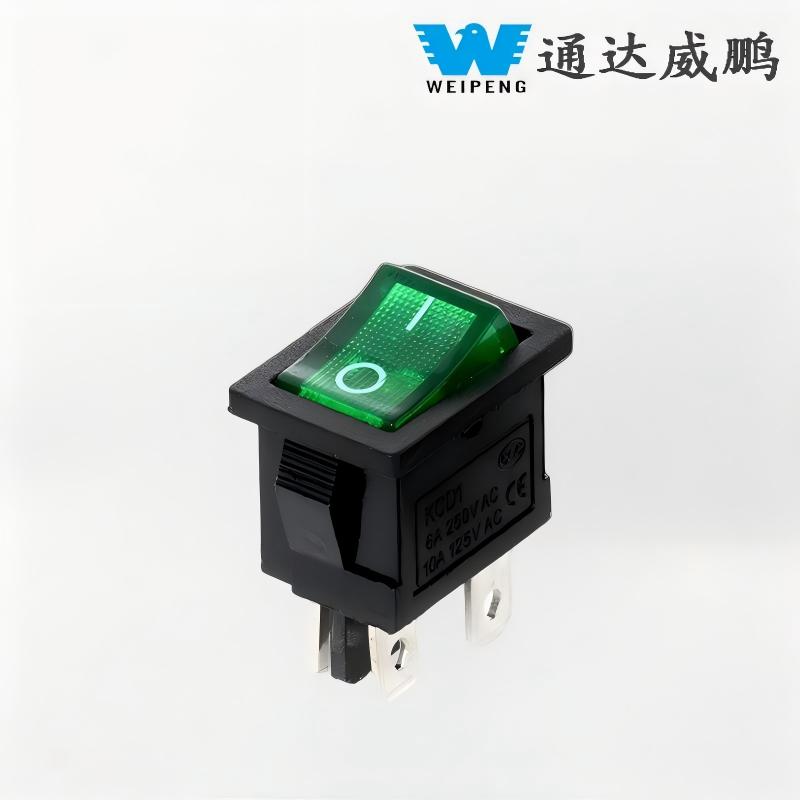

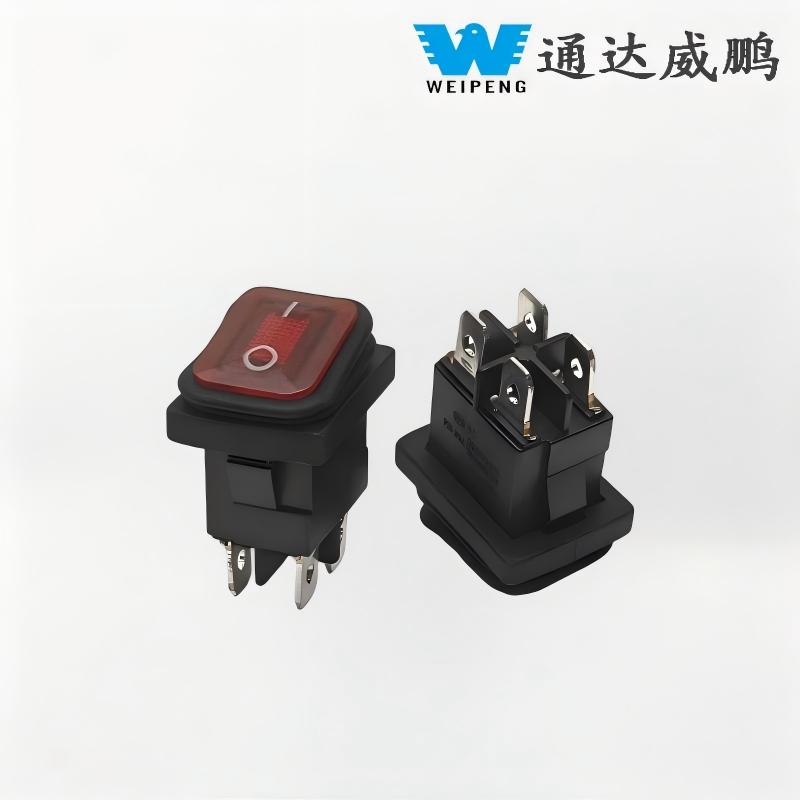

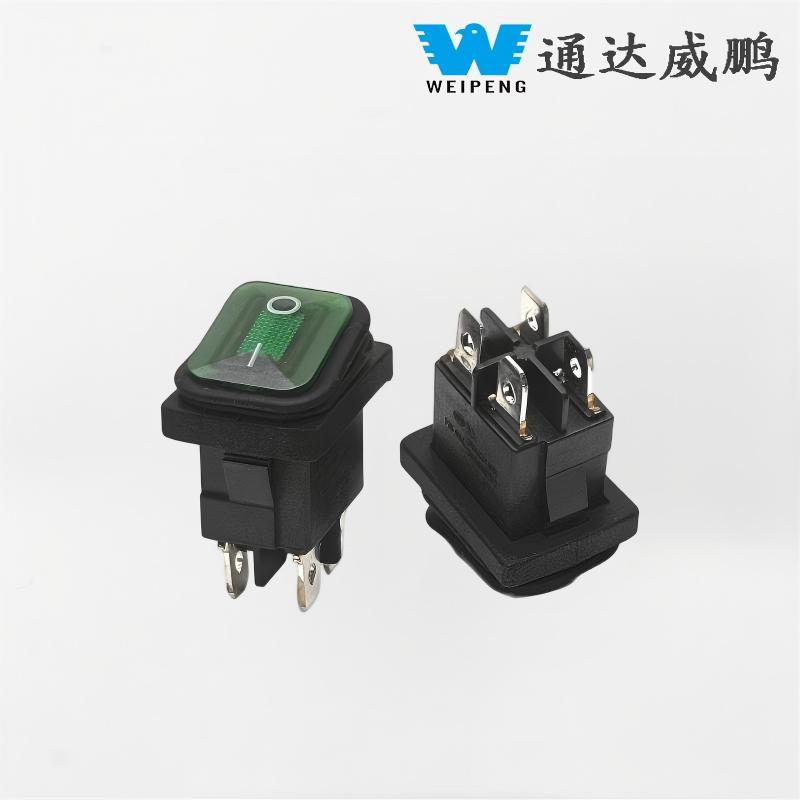

Kcd1-104 Boat-Shaped Switch Four-Pin Two-Position Rocker Switch

WEIPENG® is a renowned manufacturer and supplier of Kcd1-104 Boat-Shaped Switch Four-Pin Two-Position Rocker Switch in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On OFF Round Rocker Switch requirements in China.

Model:KCD1-101

Send Inquiry

Product Description

WEIPENG® is a leading Kcd1-104 Boat-Shaped Switch Four-Pin Two-Position Rocker Switch manufacturers, suppliers and exporter.

Tongda Rocker Switch Feature

Illuminated rocker switches are popular for equipment that requires visible power status reminder. Main applications cover kitchen commercial equipment, air fryers, microwave ovens, vehicle dashboard auxiliary controls, RV & yacht interior lighting switches, industrial control panels and medical portable devices. For Middle Eastern clients producing smart home appliances and automotive accessories, the LED lighting function greatly improves product grade and user experience, matching local high-demand indoor & vehicle equipment markets.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		6A/10A 250VAC 16A 125VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-20~85℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

Tongda Rocker Switch Application

Widely used in daily electric products and light industrial equipment. It fits kitchen appliances, ventilation devices and lighting systems for home use. For workshop and production sites, it works perfectly with power tools, testing meters and small machinery. It is also a standard component for power supplies and vehicle auxiliary equipment.
