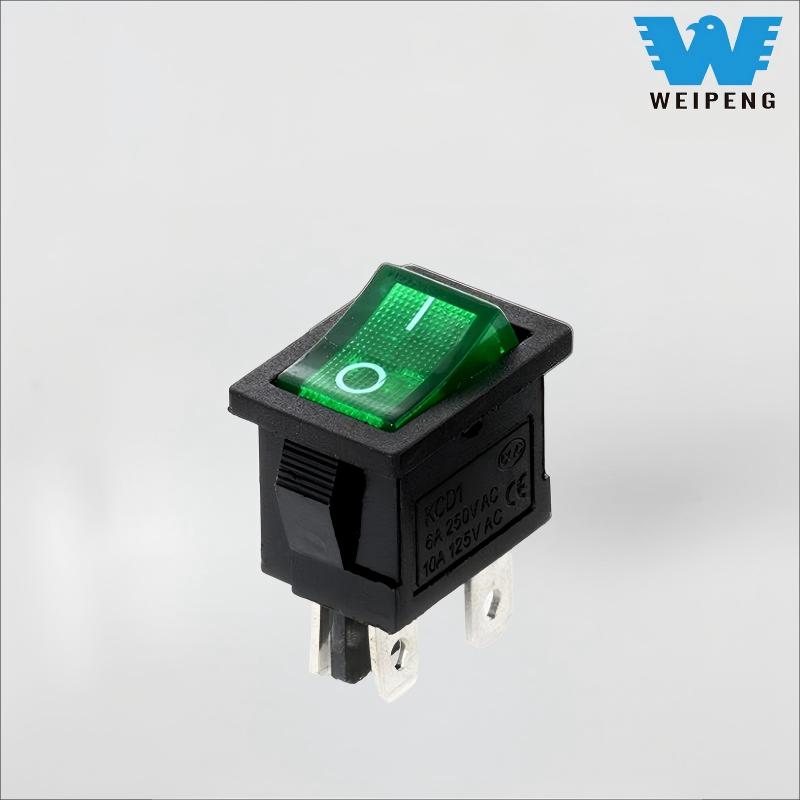

Kcd1 Boat-Shaped Switch Four-Pin Two-Position Rocker Switch

WEIPENG® is a renowned manufacturer and supplier of Kcd1 Boat-Shaped Switch Four-Pin Two-Position Rocker Switch in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On OFF Round Rocker Switch requirements in China.

Model:KCD1-101

Send Inquiry

Product Description

WEIPENG® is a leading Kcd1 Boat-Shaped Switch Four-Pin Two-Position Rocker Switch manufacturers, suppliers and exporter.

Tongda Rocker Switch Feature

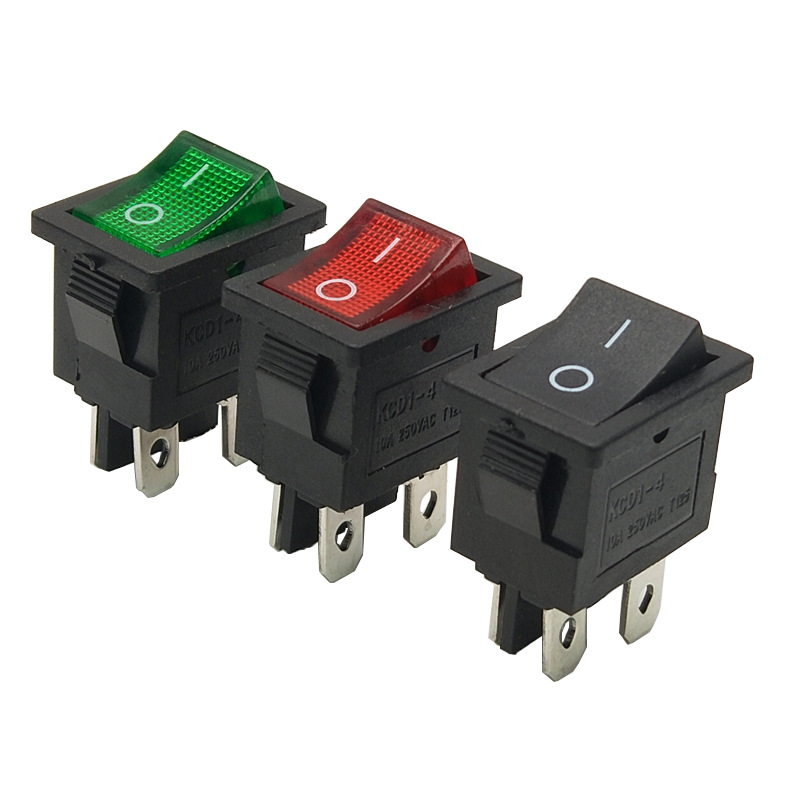

The illuminated rocker switch integrates built-in red/green/blue LED lights to display circuit status, enabling easy identification in dark operating environments. Available in SPST/DPST circuit types, rated up to 16A 250VAC. The transparent rocker cover locks the LED light evenly, and we support custom lamp voltages of 12V, 24V, 110V and 220V. Internal sliver-plated contacts effectively resist oxidation and arc corrosion, maintaining stable contact resistance after long-term frequent switching.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		6A/10A 250VAC 16A 125VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-20~85℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

Tongda Rocker Switch Application

Widely used in daily electric products and light industrial equipment. It fits kitchen appliances, ventilation devices and lighting systems for home use. For workshop and production sites, it works perfectly with power tools, testing meters and small machinery. It is also a standard component for power supplies and vehicle auxiliary equipment.
