Kcd3 2/3-Pin Electric Hot Pot Rocker Switch

WEIPENG® is a renowned manufacturer and supplier of Kcd3 2/3-Pin Electric Hot Pot Rocker Switch in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On OFF Round Rocker Switch requirements in China.

Model:KCD4

Send Inquiry

Product Description

WEIPENG® is a leading Kcd3 2/3-Pin Electric Hot Pot Rocker Switch manufacturers, suppliers and exporter.

TongDa Rocker Switch Feature

Many switches on the market suffer from inconsistent hand feel and different tightness in different batches. This rocker switch undergoes repeated screening and aging tests during production. Each batch maintains unified elasticity, toggle clarity and contact sensitivity. Stable batch quality effectively reduces defective rate and after-sales maintenance pressure for manufacturers.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Rocker Switch Application

Commercial equipment: Compatible with coffee machines, cash registers, and printers. The 16A load version can handle the instantaneous current when devices start. After batch application in a certain chain coffee shop, downtime caused by switch failures was reduced by 85%.

Industrial assistance: The 20A high-load version is used for small conveyor equipment and workshop lighting. The T125 temperature resistance is suitable for high-temperature environments. A certain machinery factory used it for 18 months with no performance degradation.

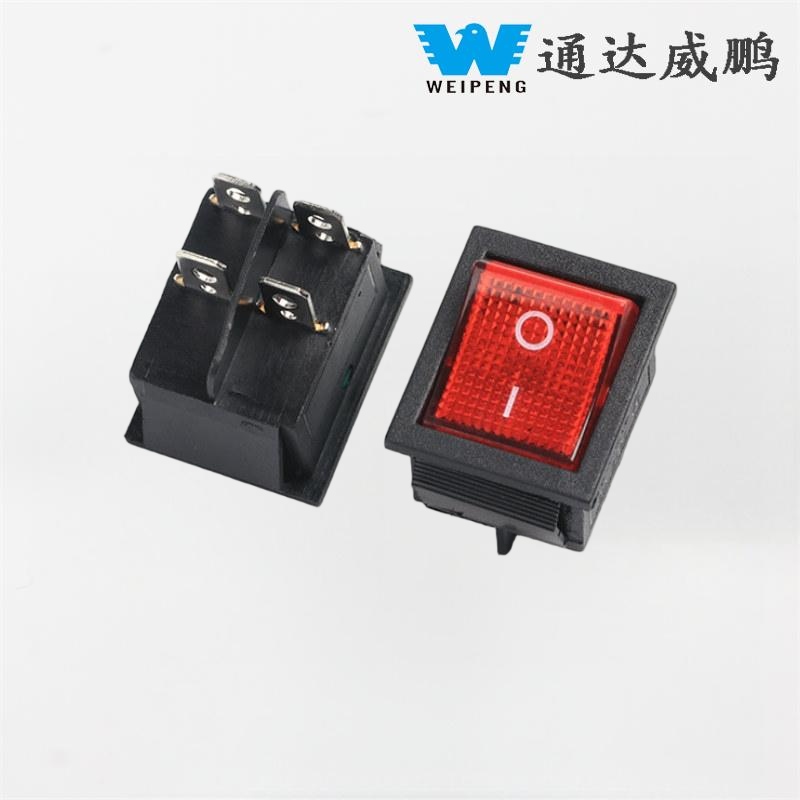

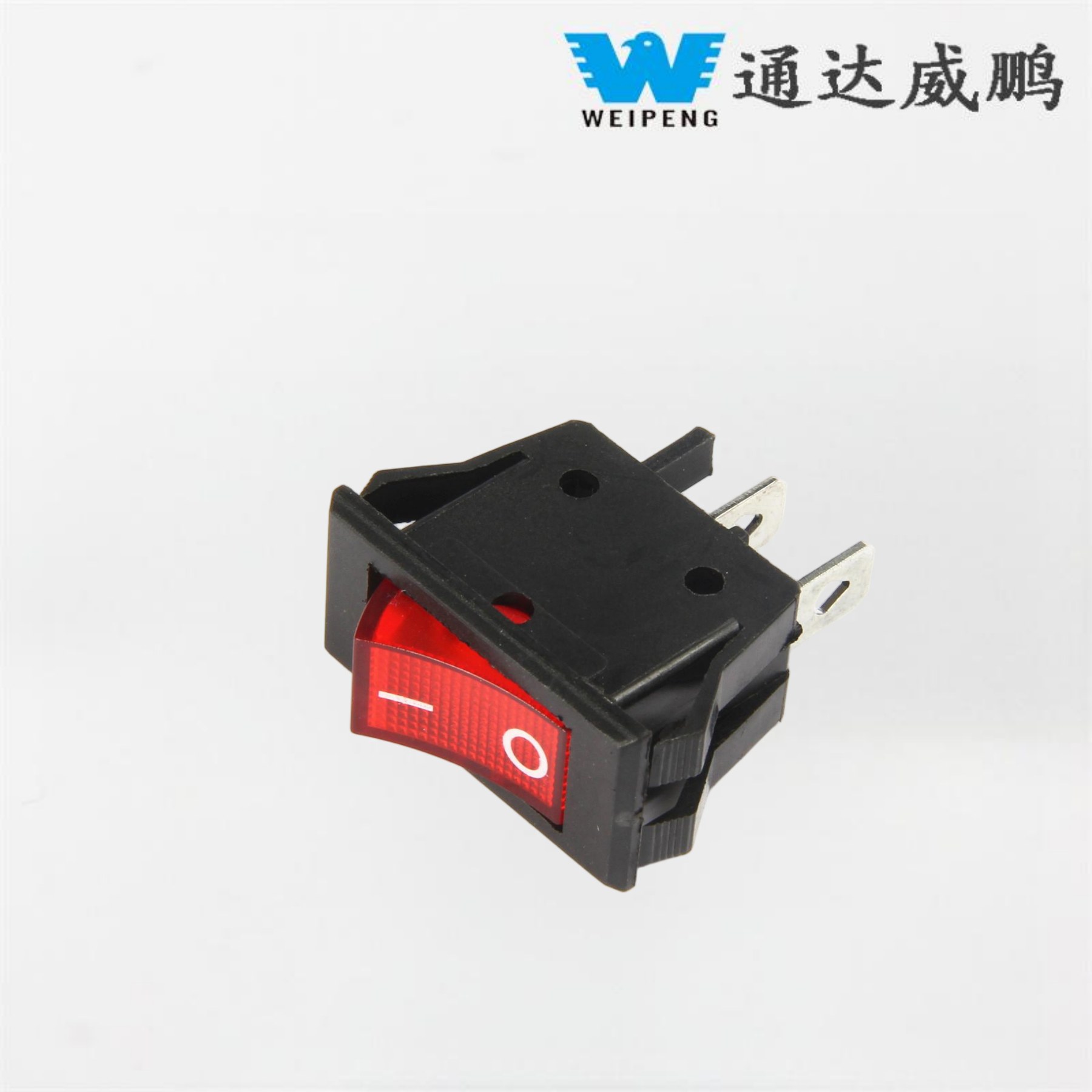

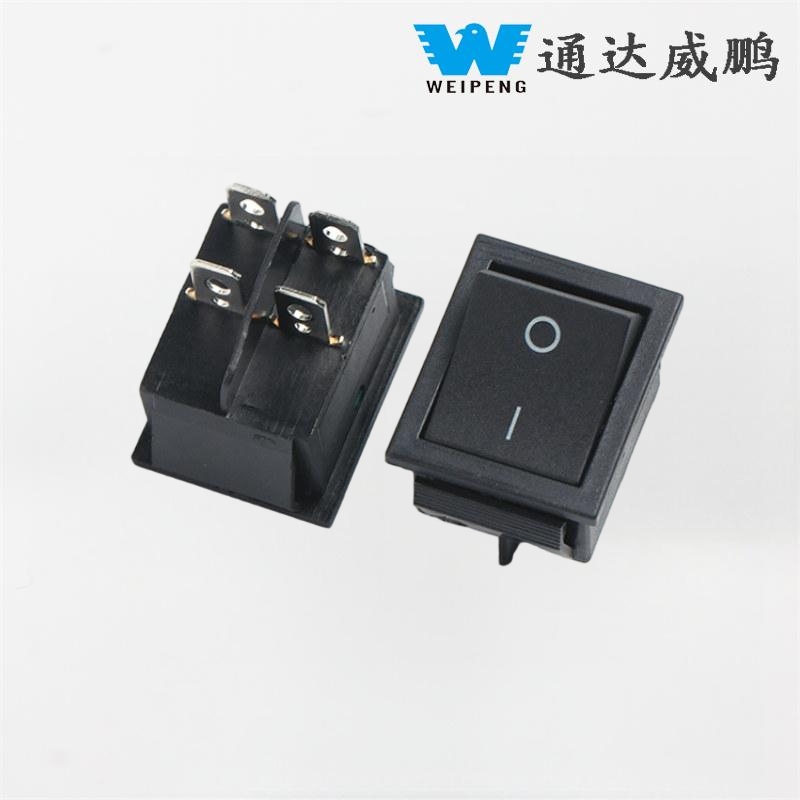

TongDa Rocker Switch Details
