Kcd4 Double Rocker Boat-Shaped Switch Dpdt 6-Pin with Red and Green Lights

WEIPENG® is a renowned manufacturer and supplier of Kcd4 Double Rocker Boat-Shaped Switch Dpdt 6-Pin with Red and Green Lights in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On OFF Round Rocker Switch requirements in China.

Model:KCD4

Send Inquiry

Product Description

WEIPENG® is a leading Kcd4 Double Rocker Boat-Shaped Switch Dpdt 6-Pin with Red and Green Lights manufacturers, suppliers and exporter.

TongDa Rocker Switch Feature

Two-position rocker switches are one of the most mainstream control accessories for small electrical equipment. This model adopts optimized internal shrapnel and contact structure, with moderate key stroke and smooth toggle feeling. It does not get stuck or loose after long-term repeated use. The overall performance is stable enough to cope with daily frequent switching scenarios, ensuring continuous and normal operation of electrical equipment.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Rocker Switch Application

Commercial equipment: Compatible with coffee machines, cash registers, and printers. The 16A load version can handle the instantaneous current when devices start. After batch application in a certain chain coffee shop, downtime caused by switch failures was reduced by 85%.

Industrial assistance: The 20A high-load version is used for small conveyor equipment and workshop lighting. The T125 temperature resistance is suitable for high-temperature environments. A certain machinery factory used it for 18 months with no performance degradation.

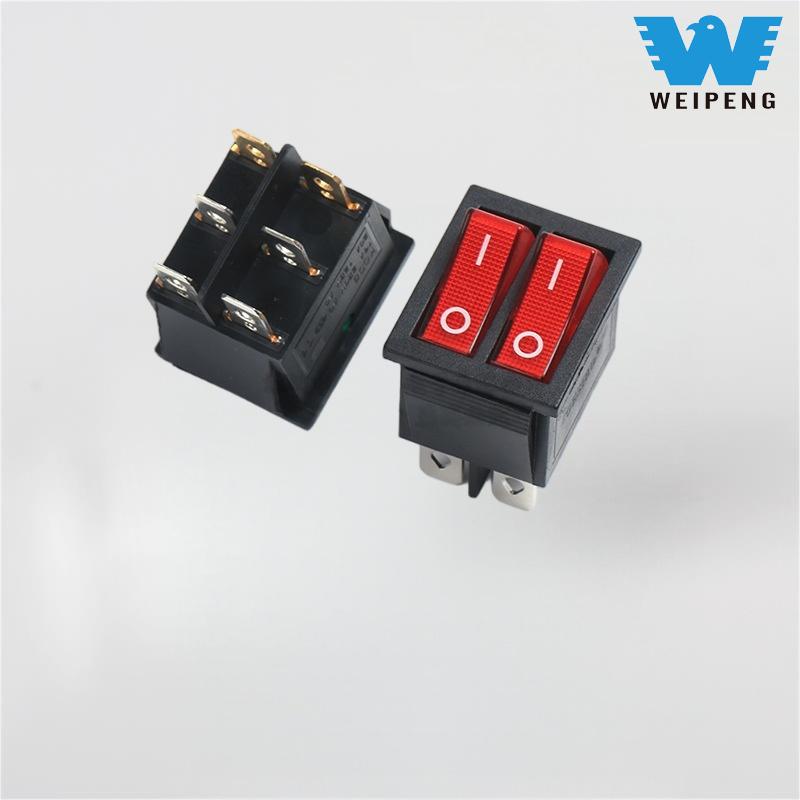

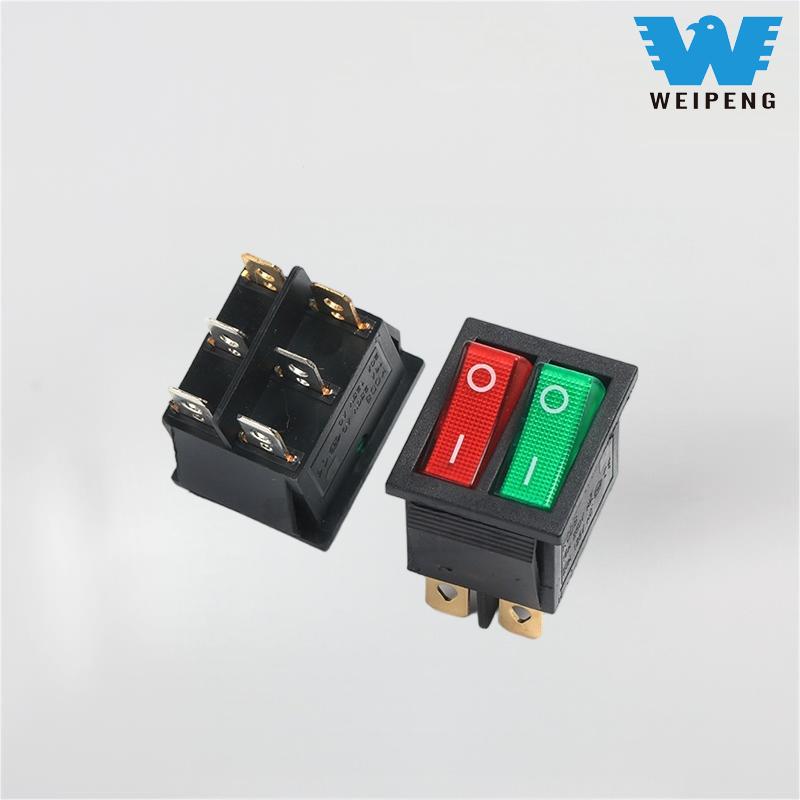

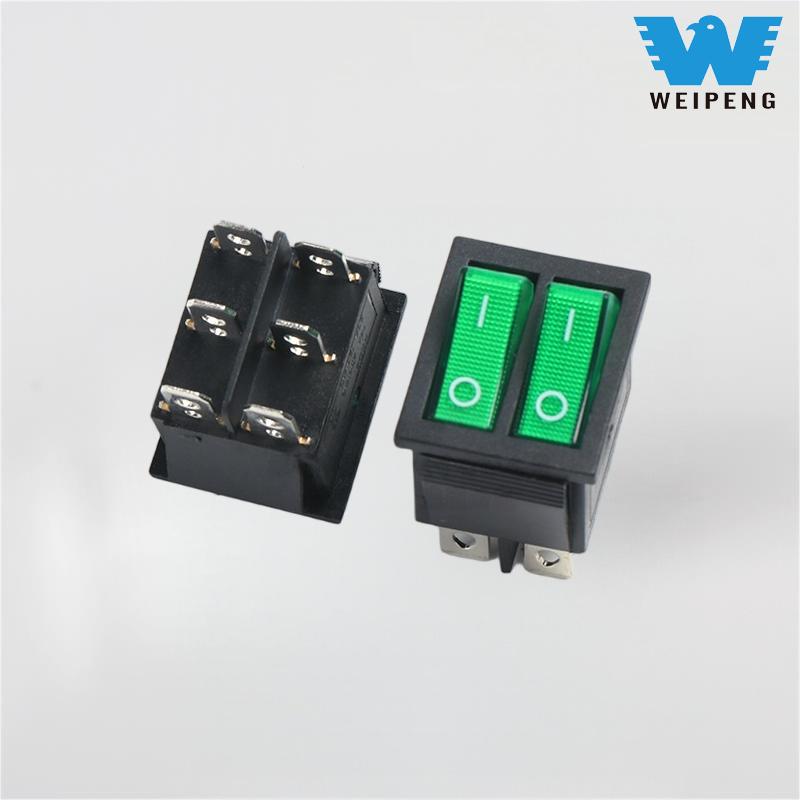

TongDa Rocker Switch Details
