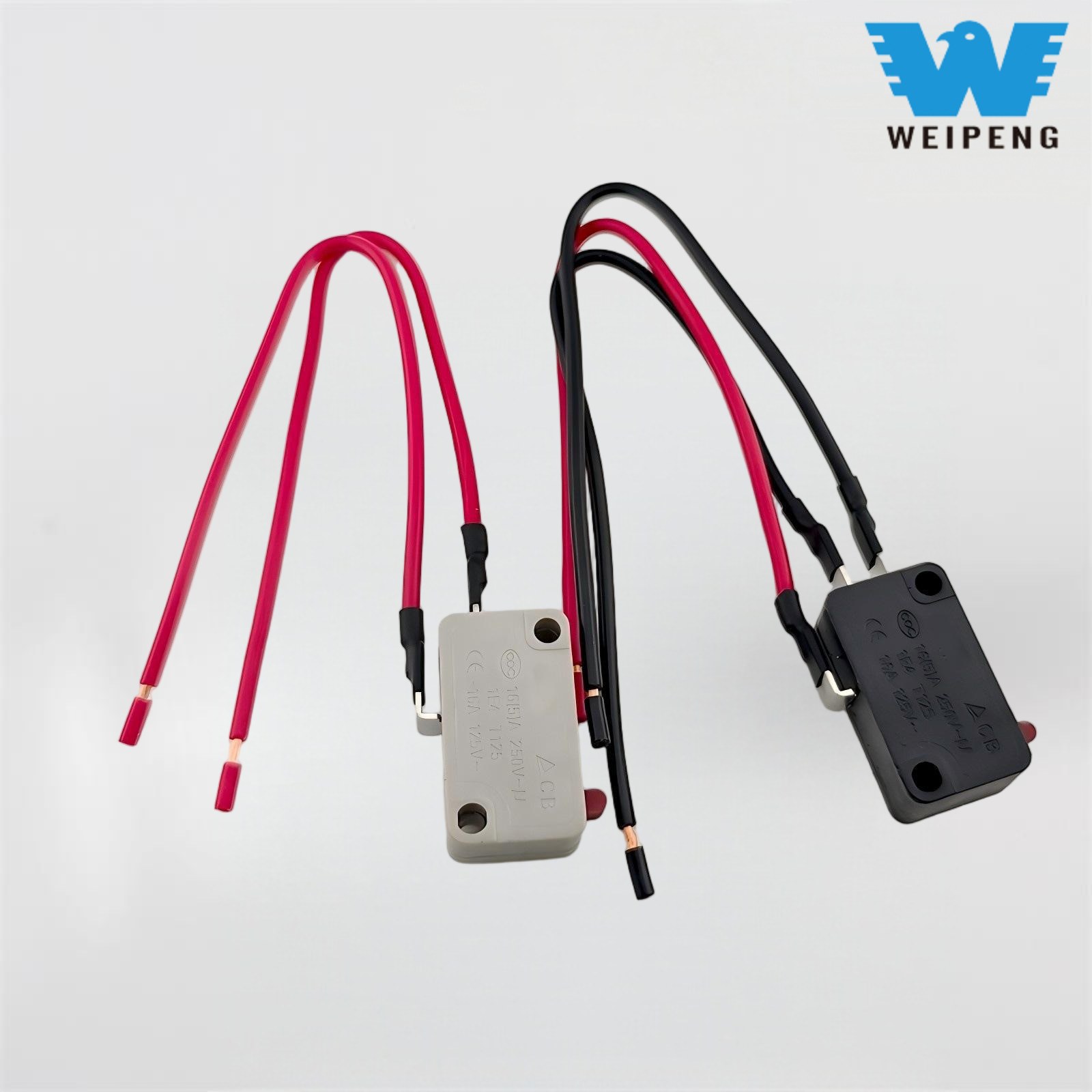

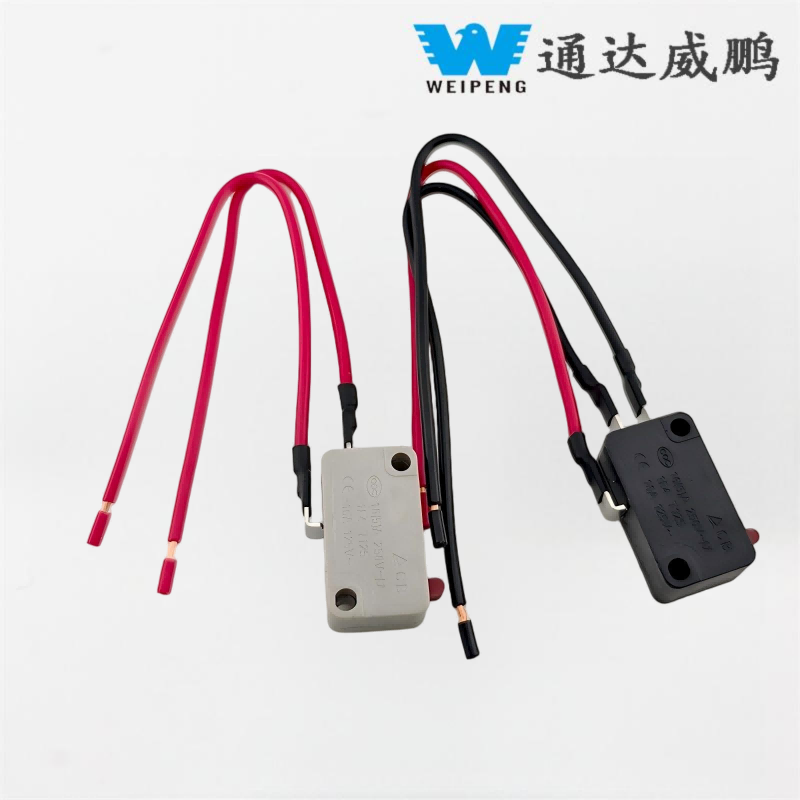

Micro Switch with Wire for Car Washing Machine

Yueqing Tongda, as a partner supplier of well-known brands such as LG, Whirlpool, and Supor, possesses a mature R&D and quality control system. It can provide customized services for the HK-04G-L Micro Switch 10A (such as adjustments to arm length and terminal types) and offers comprehensive pre-sales technical support and after-sales warranty services to ensure perfect compatibility between the product and the customer's equipment. The factory is equipped with a 100,000-class cleanroom and fully automated contact testing equipment. Each batch of products must pass 5,000 operational tests and a 72-hour high-temperature aging test before leaving the factory.

Model:HK-14-10A-311

Send Inquiry

Product Description

WEIPENG® is a leading High-Temperature Resistant Micro Switch with Lead Wires manufacturers, suppliers and exporter.

Micro Switch Introduction

The Yueqing Tongda leaded high-temperature micro switch is a precision control component specifically designed for harsh high-temperature environments. Building on the advantages of the HK-14 series short-lever quick-action structure, it features an upgraded lead connection design and full-component high-temperature resistance, allowing stable operation in extreme temperature ranges of -40℃ to 150℃. With its core characteristics of 'high-temperature reliability, strong lead adaptability, and high-precision operation,' the product has become a key control solution for industrial heating equipment, automotive engine compartments, high-temperature home appliances, and other scenarios, providing fundamental assurance for the safe operation of equipment in hot environments.

Founded in 1985, Yueqing Tongda, leveraging over 30 years of experience in industrial control switch development, equips this series of products with a 100,000-level cleanroom and a high-temperature aging testing laboratory. Each batch of products must pass continuous operation testing at 150°C for 72 hours and 5,000 operation cycle tests before leaving the factory. As a partner supplier to brands such as LG and Whirlpool, the company can provide customized services including lead length, terminal type, and arm structure, and offers a 2-year warranty along with localized technical support to ensure perfect compatibility with customers' high-temperature equipment.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5（2)A/10A/16(3)A/21（8）A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

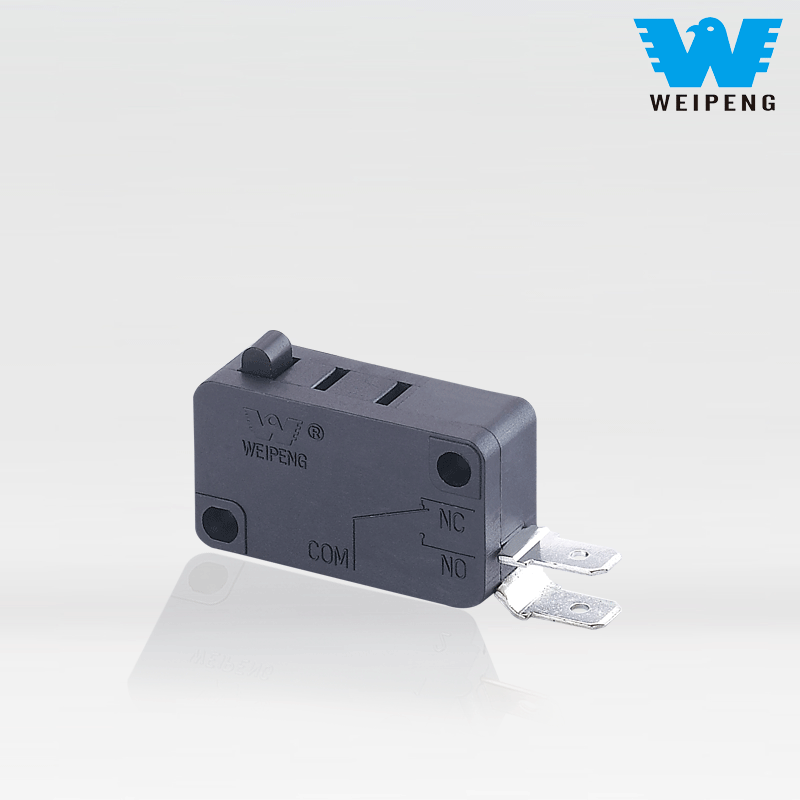

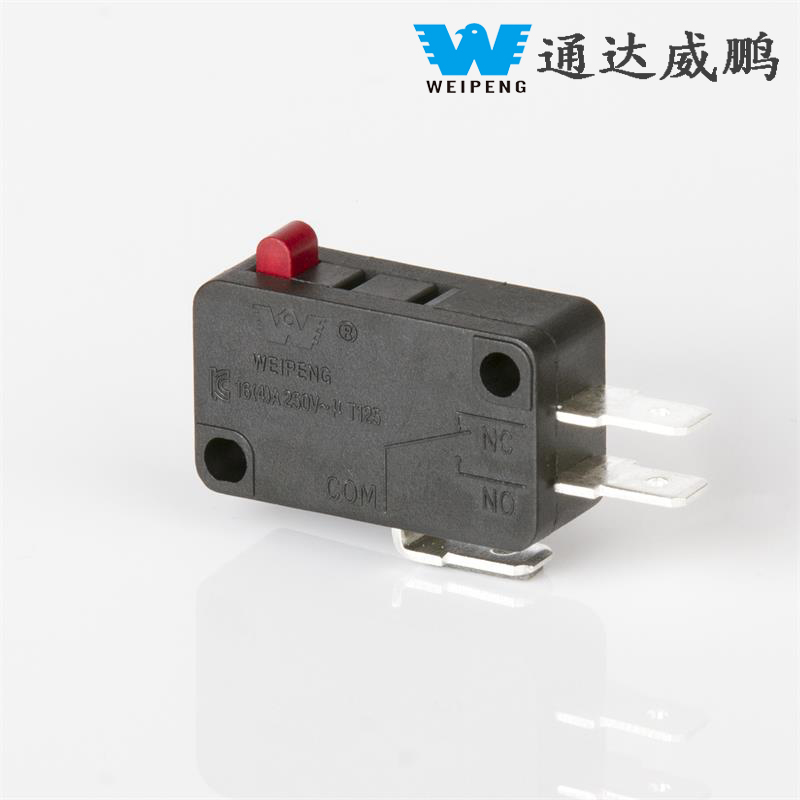

Micro Switch Details
