Micro Switches for Juicers Vacuum Cleaners Printers and Other Ddevices

As a representative product of Yueqing Tongda Wire Electric Factory that embodies the integration of core standardization and customization, Micro Switches for Juicers Vacuum Cleaners Printers and Other Ddevices is designed with the core principles of "stability, reliability, and scene compatibility." It incorporates 35 years of the company's switch manufacturing expertise, achieving multiple optimizations in electrical performance, protection levels, and user experience. The switch is widely applicable to scenarios such as smart home power distribution, industrial auxiliary equipment, and small medical instruments, making it a preferred circuit control component that balances universality with customization potential.

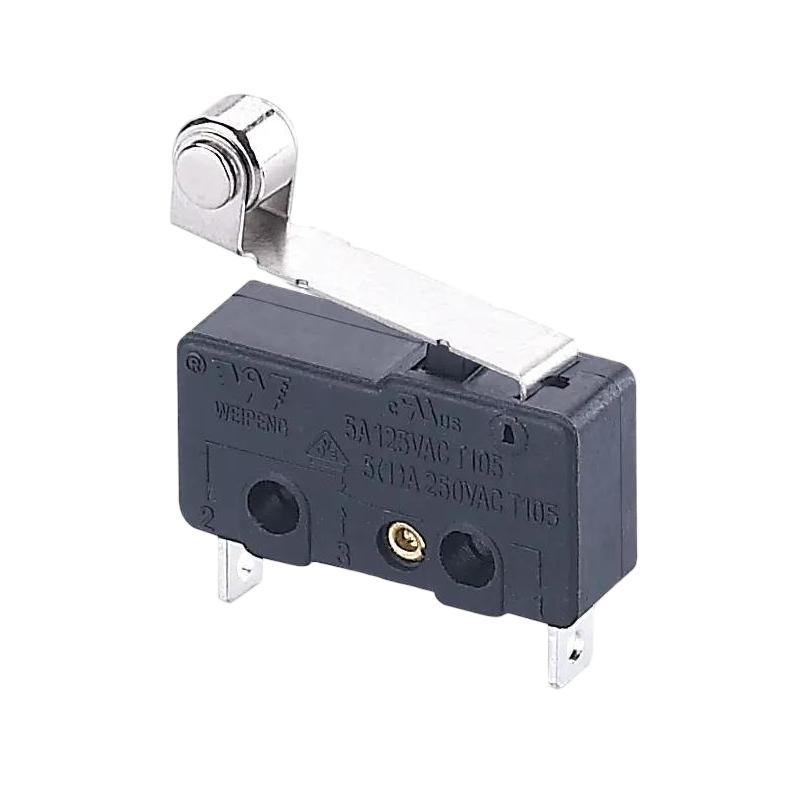

Model:HK-04G-1AT-009

Send Inquiry

Product Description

WEIPENG® is a leading Micro Switches for Juicers Vacuum Cleaners Printers and Other Ddevices manufacturers, suppliers and exporter.

Micro Switch Introduction

The following are key production steps that buyers need to understand to assess product quality:

1. Component Manufacturing: Precisely machined metal contacts and springs; durable casing (plastic/metal materials).

2. Assembly: Accurately assembling springs, contacts, and actuators to avoid affecting performance.

3. Testing: Strict testing (thousands of press tests, electrical continuity tests) to ensure reliability.

4. Packaging: Protective packaging for easy transportation, with clear labeling of specifications.

Micro Switch Application

Micro switches are widely used and reliable in performance, mainly applied in:

- Household appliances: refrigerator lights, microwave oven door locks, washing machine lid switches, and toaster timers.

- Industrial equipment: heavy-duty models suitable for conveyor belts, machinery, and control panels (dustproof and moisture-proof).

- Automotive field: windshield wipers, door-ajar indicators — capable of withstanding vibration and extreme temperatures.

- Electronic devices: miniature switches for remote controls and game controllers (responsive and long-lasting).

Micro Switch Specification

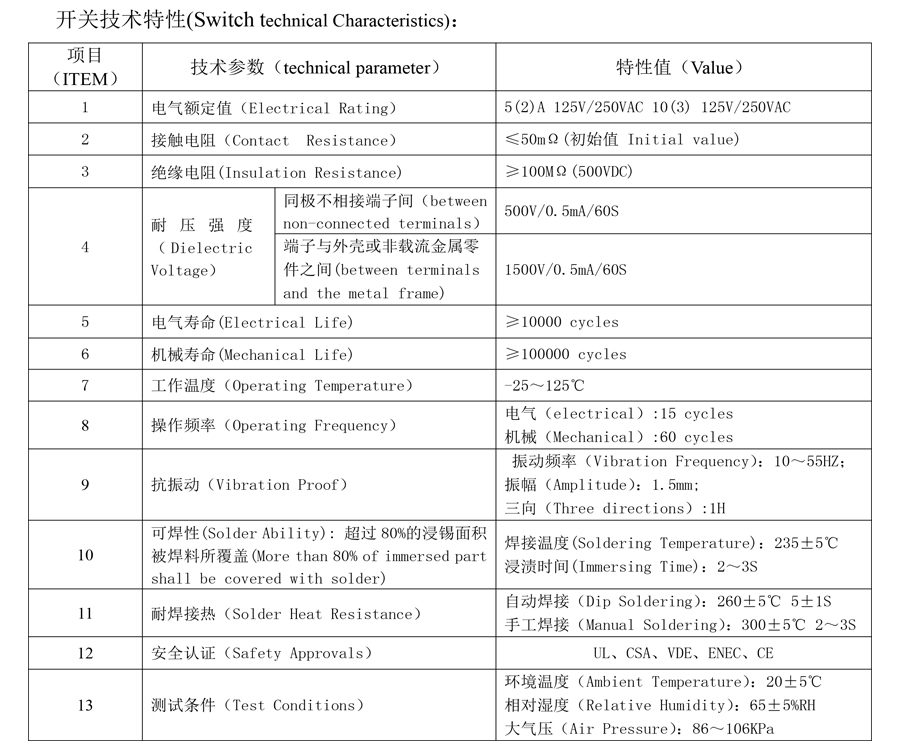

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A 125V/250VAC 10(3)125V/250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
