3 Way Switch Rocker: A Comprehensive Guide

When wanting to manage a light from different points, the three-way switch rocker can be the solution for this purpose. This guide will thus give you all the information you need on the operation of this system and how to install and fix your three-way switch rocker.

What is a Rocker Switch 3 Way and How Does It Work?

A three way rocker switch is an electrical switch that can turn lights on or off from two different points. It is helpful in large rooms and hallways when there is a need to control lights from different ends. The switch is designed using two switches that work together to operate the same circuit.

Types of 3 Way Switch Rockers

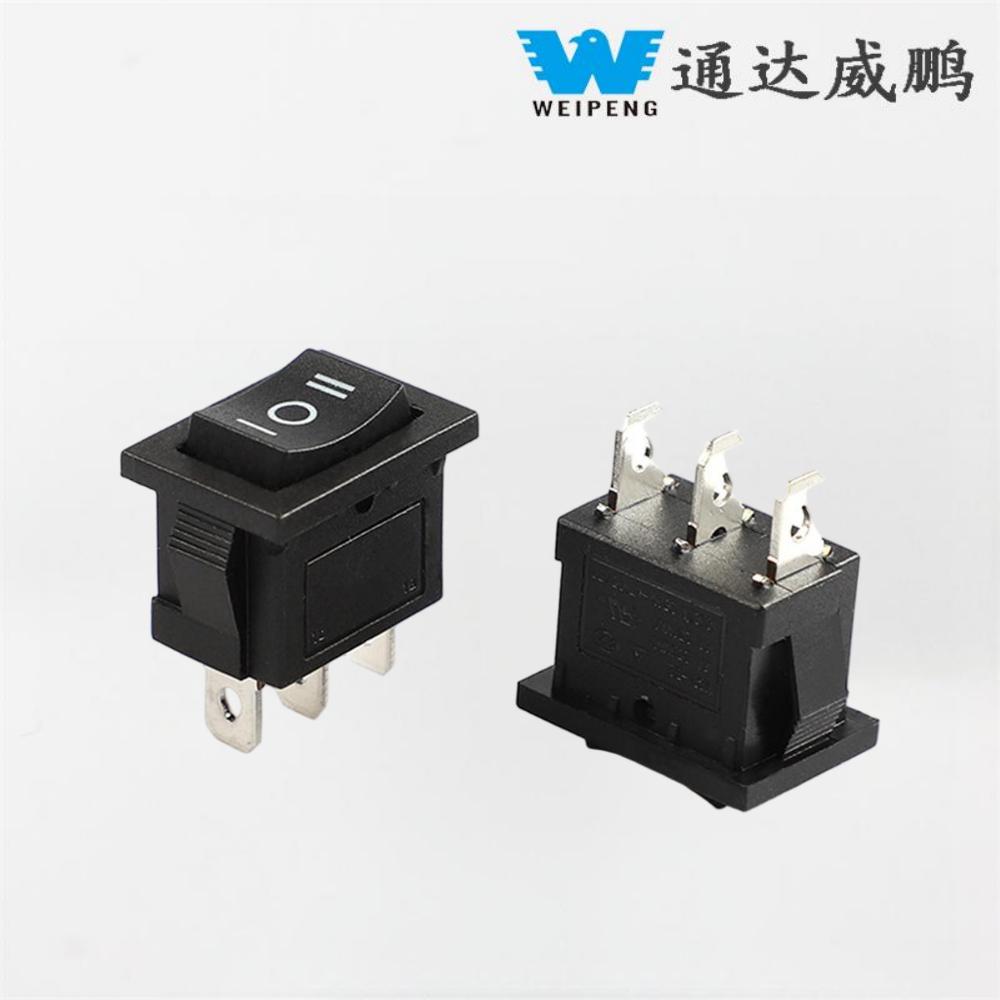

A variety of types of 3-position rocker switches are available on the market. Examples of these types of switches include those using a classic toggle operation or flat rocker mechanism. The choice of which type of rocker switch to select depends on the personal style of the home owner.

How to Wire a 3 Way Rocker Switch

Wiring a 3 way switch rocker can seem like a daunting task, but if you follow the right steps, you will be able to complete the installation correctly and safely.

1. Turn Off Power: Ensure that the power to the circuit is turned off at the breaker box.
2. Identify Wires: Normally, there are three wires: one is black (hot), another one is white (neutral), and the last one is green or bare (ground).
3. Connect Wires: Attach the black wire to the common terminal of the first switch. Attach the second black wire to the common terminal of the second switch. Finally, attach the two remaining wires to the traveler terminals of both switches.
4. Secure the Switches: When all connections are finished, the wires should be enclosed in electrical boxes and the switches fitted. The power should be turned back on and its working checked.

Common Issues and Troubleshooting Tips

When you've set up your three-way rocker switch, it's probable that you'll face some usual problems. Below are some tips to help you out.

In case your switch is not performing well, then examine the wiring for stability and correctness. Sometimes poor connections can cause malfunctioning switches. If you notice flickering or malfunction of the switches, it would be wise to change them as there are chances of a fault.

Frequently Asked Questions

What is a 3 Way Switch?

A three-way switch makes it possible to manage a light fixture from multiple locations. Two switches situated at different locations work at the same time to control power to the same fixture.

How to Wire It?

Wiring a three-way switch requires correctly connecting the hot, neutral, and ground wires to guarantee safety. It’s good to follow wiring diagrams that usually come with the switch.

Can I Replace a Single Pole Switch with a 3 Way Switch?

In case you're thinking about switching a one pole switch for a three pole switch and doing it by yourself, you should know that the process is not that easy. You should either seek professional help or find do-it-yourself guide based on step by step instructions if you are not familiar with the principles of electrical circuits.

Conclusion

Learning the application of a three-way switch rocker presents many options for making the lighting system in your house more efficient. It doesn't matter if you're in the process of replacing old switches or upgrading your electrical system. Whatever the case may be, the knowledge of the whole procedure makes it a lot easier.
