30 Amp Rocker Switch for Power Tools, Welding Machines and Marine Systems

In the modern electrical world, where electricity is generally used in a demanding manner, reliability, function and safety play a significant role, especially when high currents are involved. In this sense, the 30 Amp Rocker Switch is certainly one of the starting points for both professionals and amateurs in electric tools, welding machines and marine technology. This tutorial will teach everything necessary regarding the choice and installation of a high quality 30A switch (250V), including solutions which are waterproof and illuminated.

Understanding the 30 Amp Rocker Switch: Key Features and Benefits

The 30 Amp Rocker Switch is specially designed for the handling of heavy-duty electrical loads. Its durable construction combined with ease of operation delivers dependable performance across demanding operations. Unlike standard switches, the 30A rating makes it capable of handling the high voltage needed to power demanding tools like welders or heavy marine machinery. Switches are rated for 250V, making them compatible with various industrial and commercial AC power systems.

Key features to consider include:

• High current capacity: Perfect for tools and appliances drawing 30 amps or less.
• Durable construction: Protected by tough plastics or metal, ensuring longevity.
• Waterproof and dustproof options: Ideal for marine environments or outdoor workshops.
• The use of LED technology increases visibility and safety during flight-related operations, particularly during night or low-light situations.
• Compliance with safety standards: UL, CE, or RoHS certifications for peace of mind.

A dependable switch is essential for the safety of your equipment whether it's a matter of marine technologies or industrial machines.

Applications: Power Tools, Welding Machines, and Marine Systems

The flexibility of the 30A Switch 250V is what makes it one of its main advantages. Let's see how it excels in these important fields:

Power Tools: In workshops, power tools such as drills, grinders, and saws often use high voltage. The installation of a 30 amp rocker switch makes it easier to operate the tools while also providing safe safeguards against accidental activation and enabling instant shut-off in emergency cases.

Welding Machines: Welding applications require high levels of current, therefore consistent electrical supply is pivotal. A heavy-duty 30A switch is an excellent option and provides both reliability and control for the amateur or professional welder allowing safe operations without risk of arcing or overheating.

Marine Systems: Marine vessels depend on strong electrical systems to ensure efficient operation of navigation systems, lights, pumps, and communication apparatus. Waterproof 30 amp rocker switches are among the must-have marine accessories that provide protection from moisture, corrosion, and salt water while providing reliable operation.

Different surroundings offer different challenges but the correct switch improves safety, dependability, and ease of use in any place it is utilized.

High-Quality Rocker Switches: Waterproof & Illuminated Options

Looking for a reliable 30 Amp Rocker Switch? Most times you get hooked to advanced switch models that have waterproof design as well as illuminated features.

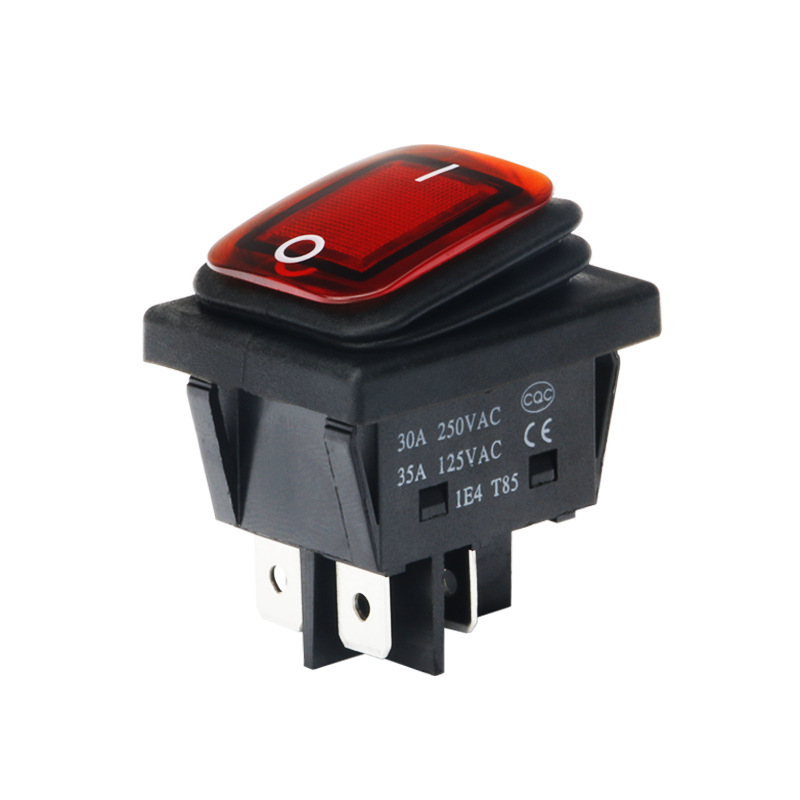

Waterproof Switches: Waterproof switches are capable of resisting the effects of moisture, water, and wet conditions, which makes them suitable for outdoor and marine applications. They usually have the IP66 or IP68 ratings which indicate the extent of their protection against water and dust.

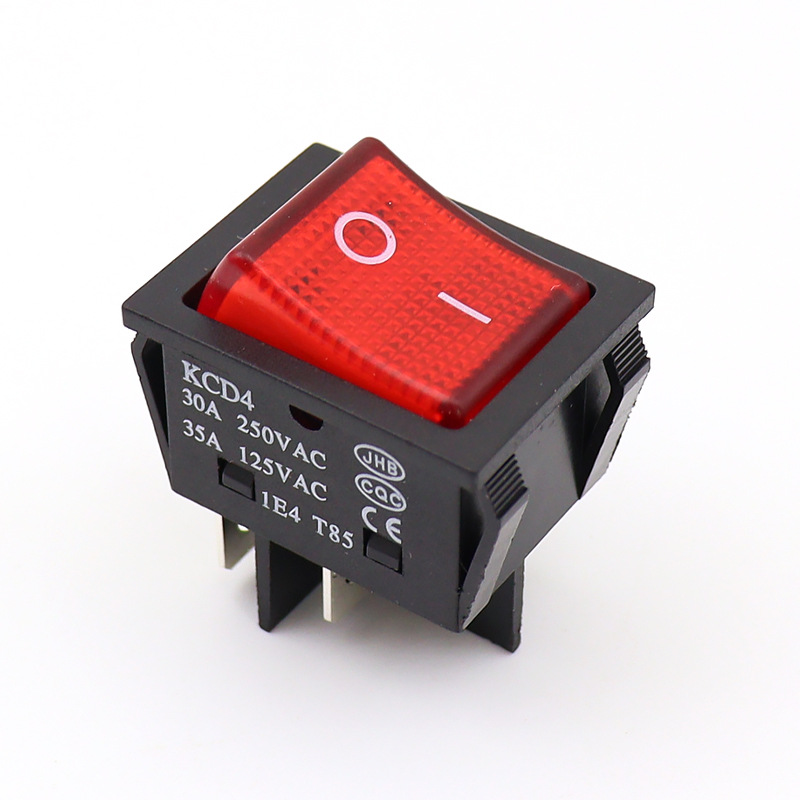

Illuminated Switches: The built-in LEDs or indicator lights make it possible for the operators to see the state of the switch in an instant. This is vital for safety, particularly during night work or in dark areas. Illuminated switches are commonly used in boat manholes, mobile workstations, etc.

When buying something, making sure that waterproof and lighted features are made the main consideration increases the life of the item and the satisfaction of the user. Well-established companies often offer these features with many different colors and shapes which further add to the usability and appearance of the item.

Installation Guide: How to Wire a 30A Rocker Switch Safely

The optimal installation of a rocker switch is the cornerstone of a dependable electrical system. Whether it's a new installation or an old device being modified, precision is very important. The following is a step-by-step instruction:

1. Get ready: Prior to commencing the process, ensure the power is turned off at the main breaker. Collect all required tools including screwdrivers, wire cutters, crimping tool, and the proper connectors. Select a switch that matches the voltage and current rating of your device.

2. Choosing Cables: Only use cables that have a rating of 30 amps or greater, ideally 10 gauge cables or thicker. Additionally, check wires for the state of the cable's insulation and do not use any cable that has corroded or frayed connections.

3. Installation: The switch should be fitted into a compatible panel or casing. Waterproof switches usually require a secure fit and may in some cases include a rubber seal.

4. Connections: Follow the wiring diagram given by the manufacturer. The majority of rocker switches come with three terminals; namely, “Power In,” “Power Out,” and “Ground.” Securely connect both the incoming wires and outgoing wires, and in the case of illuminated switches, connect the ground wire so that the LED can function properly.

Testing involves checking the switch for function after reconnecting wires. During testing, there is an opportunity to check the LED indicator if there is one.

Tip for safety: Use only the circuit protected by a proper device or fuse. It is also important that the switch and wiring is not overloaded.

Choosing the Right 30 Amp Rocker Switch: Buying Guide and Comparison

Picking the best 30A Switch 250V for your needs involves evaluating several factors:

Build Quality: Select switches constructed from durable plastics or rust free metals. Strong materials assure long-lasting performance even in cases of reoccurring use.

Certifications: When choosing switches, look for UL (Underwriters Laboratories), CE or RoHS certification. These marks show compliance with safety and environmental regulations.

Terminals: Spade, solder, and screw terminals can usually be found in switches. The spade terminals enable fast disconnection and connection, while the screw terminals allow for more stable connections.

Size and Compatibility: Check the dimension to ensure that it works for your panel or enclosure. Marine switches could possibly need a sealed housing, while workshop switches usually need a flush mounting.

Waterproof and Illuminated Options: If you operate in wet or dark environments, prioritize waterproof and illuminated switches.

Price vs. Value: Never skimp on quality for affordability. When you purchase well-known brands, there will be fewer malfunctions and a longer life span for your investment.

It is necessary to scrutinize reviews, solicit advice, and check product specifications before making a decision. You can steer clear of complications and be assured by comparing products according to the application.

Maintenance and Troubleshooting Tips for Long-Term Reliability

Routine service keeps your 30 amp rocker switch in great shape and avoids surprises. Below are helpful suggestions.

Routine Inspection: You should inspect your switch for signs of damage every couple of months. For instance, if you notice cracks or an unusual color, that means the switch may have been overheated or exposed to extreme conditions.

Cleaning: Use a gentle cloth to wipe down the outside, avoiding strong cleaning products that may damage plastic. Waterproof models do not need cleaning as often, but they still need some maintenance.

Testing: Make sure to operate the switch from time to time in order for it to function properly and light up if needed. Any problems like sticking, rough movement, or intermittent functioning of the LED can indicate that the switch has issues.

Troubleshooting: If the switch has a problem, check the wire connections for corrosion or looseness. Change the terminals or cables if needed. For illuminated switches, make sure the LED circuit and ground are both working properly.

Salt remains and corrosion should be checked by nautical people after long trips, because this is crucial for equipment's good performance and proper working.

FAQ: How to Wire an Illuminated 30A Rocker Switch?

Lighted switches show you whether they are on or off, but the wiring may confuse you. Here is a simple guide:

Step 1: Take a look at the switch. A lit switch often has three or four terminals: Power In, Power Out, and Ground, and sometimes a terminal for the LED.

Step 2: The connection "Power In" should be attached to the circuit's positive voltage supply. "Power Out" must be connected to the equipment or device you are controlling.

Step 3: Attach the ground terminal to the circuit ground. This is crucial for LED illumination.

Step 4: In case your switch has a fourth terminal for its LED, follow the manufacturer manual for connection instructions. Some switches might require a separate resistor or a direct connection to the positive supply, based on the voltage type.

Step 5: Check that all of the connections are secure and test the switch to make sure it is working and illuminated satisfactorily for the completion of the installation.

When in doubt, refer to the datasheet or seek help from an expert. Safe wiring is very important for both good performance and fire safety.

Common Mistakes to Avoid When Installing a 30A Switch

Numerous users put their switches at risk due to mistakes made during installation that could be easily prevented. Being informed can help in saving time and money:

Underestimating Wire Size: Using thin wires increases the risk of overheating which may cause fire. Always use wires of the appropriate gauge for the rating of the switch being used.

Ignoring Ground: Grounding is not only important from the safety aspect, but it is also essential for providing purposeful illumination. Always ensure proper grounding.

Over-Tightening Terminals: Excess pressure can crack the housing or cause terminal distortion. Secure but do not overtighten.

Inadequate Sealing: For marine or outdoor applications, make sure that all joints and seals are installed correctly so moisture does not enter.

Poor Testing: Omitting an after-installation inspection may create future issues. It’s essential to check the functioning of the switch before it’s used.

Careful installation results in longer lifespan and cost savings when it comes to maintaining equipment and devices in good working order.

Expert Tips for Safe Operation in Power-Hungry Environments

Working with high current circuits requires diligence and care. Here are expert recommendations:

It is advisable to switch off equipment before disconnecting and reconnecting switches, particularly when working with welding equipment and large electrical appliances. Avoid bypassing fuses because they are the last protective measure in case of electrical problems. Regularly inspect all connections in vibrating environments, like boats and industrial equipment, since vibrations may loosen connections over time. Use switches complying with the latest safety regulations and verify the amp rating is suitable for the application. Train all people using the switches on how the switches work, as well as how to perform emergency shut-down operations.

Preserve backup switches as well as installation tools in a dry place so that they can easily be accessed in case of sudden breakdown or repair work.

Where to Buy 30 Amp Rocker Switches: Top Suppliers & Recommendations

If you are thinking about making a purchase, it is vital that you acquire your switch from reliable suppliers. Many online shops, like Digi-Key, Mouser, Amazon and specialized marine suppliers, offer acceptable switches that have been certified and reviewed. You can also visit physical shops that concentrate on selling electrical and marine equipment to get advice and see the product before buying it.

Before buying, consult the datasheets or technical specs provided by the supplier. Choose options with warranty coverage and clear returns policy for peace of mind. If you’re unsure about which model fits your needs, don’t hesitate to reach out to customer support or technical advisors. A reliable supplier guarantees product authenticity and post-sale assistance.

For bulk or industry needs, some suppliers offer trade pricing and technical assistance, making it easier to outfit an entire workshop, welding station, or fleet of marine vessels with dependable 30A switches.

Choosing the right supplier is as important as picking the right switch—invest wisely for trouble-free operation and future support.

In summary, the 30 Amp Rocker Switch offers unmatched versatility for powering tools, welding machines, and marine systems. By understanding its features, applications, installation processes, and maintenance requirements, you’ll unlock the full potential of reliable switch technology. Prioritize quality, safety certifications, and compatibility with your setup. Waterproof and illuminated switches further enhance performance and safety, especially in harsh environments. Consult this guide whenever you’re choosing, installing, or troubleshooting your switch, and rest assured your devices are protected and ready for demanding tasks.
