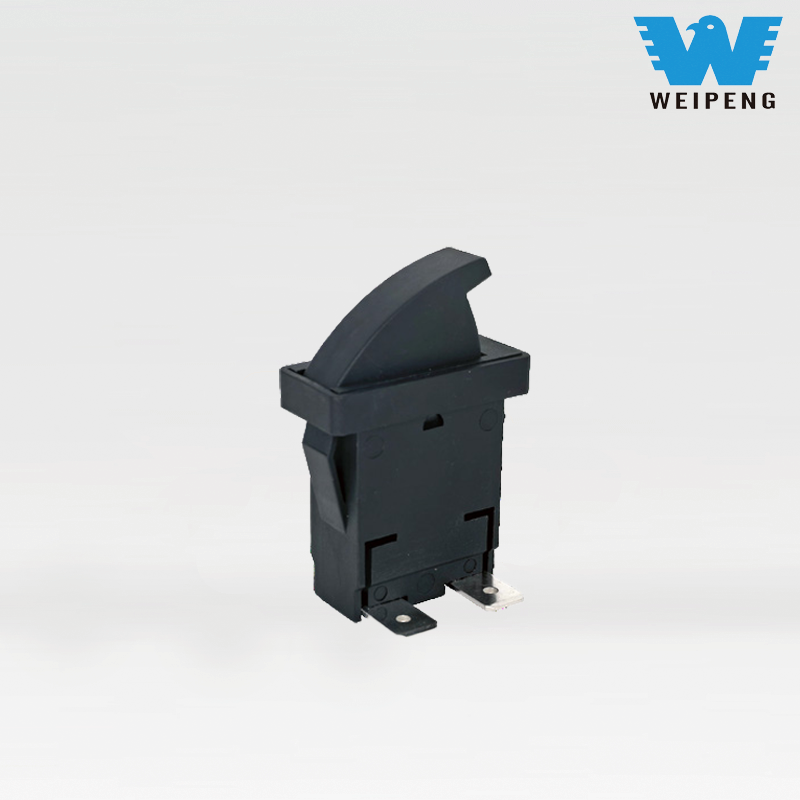

Push button switch of Refrigerator Door

Push button switch of Refrigerator Door has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small.

Model:GNY52-1-001

Send Inquiry

Product Description

WEIPENG® is a leading Push button switch of Refrigerator Door manufacturers, suppliers and exporter.

Product Introduction

Push button switch is a common electronic component used to control the on and off state of a circuit. It usually consists of a button and a switch that changes state when the button is pressed.

Button switches can use a blinking effect, when the button is pressed, the button will blink to attract the user's attention.

Product Application And Specification

Push button switches can be used to control the light, when the button is pressed, the light will turn on or off. It can also be used to control the switch of electrical equipment,air conditioner, etc. In the industrial field, push button switches are widely used to control the start and stop of mechanical equipment.whether it is household, industrial, automotive or electronic equipment, it is inseparable from this simple control component.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		65W 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1250VAC/5mA/3S
		Between terminals and the metal frame	1800V/5mA/3S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-25~85℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、TUV、CQC、CE
13	Test Conditions		Ambient Temperature : 20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa
