Round Rocker Switch
  • Round Rocker SwitchRound Rocker Switch

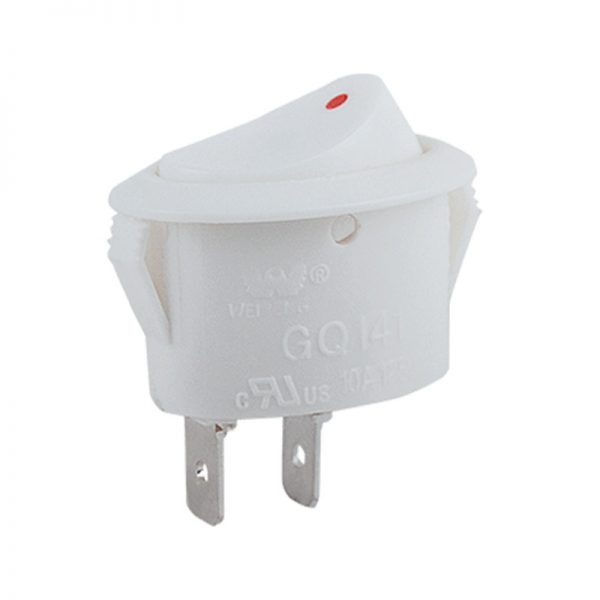

Round Rocker Switch

As the professional manufacturers, WEIPENG® would like to provide you Round Rocker Switch. And we will offer you the best after-sale service and timely delivery. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!


Send Inquiry

Product Description

WEIPENG® is a professional leader China Round Rocker Switch manufacturers with high quality and reasonable price. Welcome to contact us.

Tongda Wire Electric Round Rocker Switch Introduction

Round rocker switch is also known as waveform switch, stick switch, rocker switch, IO switch, power switch, because it looks like a boat, so called boat switch, its structure and toggle switch is roughly the same, only the knob is changed into a boat.

Round rocker switch is commonly used as the power switch of electronic equipment. Its contacts are divided into single pole single throw and double pole double throw, etc. Some switches also have indicators, full light and point light, etc.

Tongda Wire Electric Round Rocker Switch Parameter

Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 10(1.5)A/16(3)A/10(3)A 250VAC
2 Contact Resistance ≤50mΩ  Initial value
3 Insulation Resistance ≥100MΩ (500VDC)
non-connected terminals
Between terminals
and the metal frame
5 Electrical Life ≥10000 cycles
6 Mechanical Life ≥100000 cycles
7 Operating Temperature 0~125℃
8 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
9 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude :1.5mm:
Three directions :1H
10 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time :2~3S
11 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
12 Safety Approvals UL、CSA、VDE、ENEC、TUV、CE、CQC
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure : 86~106KPa

Tongda Wire Electric Round Rocker Switch Test Method

The main test number of opening and closing, until the damage, if not manually available 1 small motor to drive the eccentric opening and closing switch, with a counter to record the number! The switch requirements safety certification is a must, the product in domestic sales with CQC, foreign words to see the specific sales to which country, such as the United States UL, Canada CUL, European countries have VDE, ENEC, TUV safety certification.

Tongda Wire Electric Round Rocker Switch Details
