Without Lever Micro Switch
  • Without Lever Micro SwitchWithout Lever Micro Switch

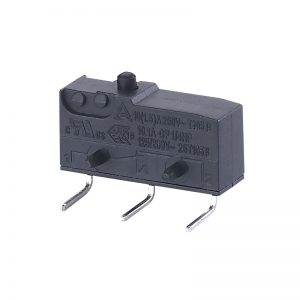

Without Lever Micro Switch

As a specialized manufacturer and supplier of SWithout Lever Micro Switch in China, WEIPENG® has been providing high-quality Straight Lever Micro switch solutions for many years. Our products are not only affordable but also widely recognized in the European and American markets. We would love to be your reliable partner in China for the long term.

Model:DK4-CZ-003

Send Inquiry

Product Description

WEIPENG® is a leading China Micro switch manufacturers, suppliers and exporter.

Tongda Wire Electric Without Lever Micro Switch Introduction




Tongda Wire Electric Without Lever Micro Switch Parameter (Specification)


Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 10(1.5)A 125/250VAC 10A 36VDC
2 Contact Resistance ≤50mΩ  Initial value
3 Insulation Resistance ≥100MΩ  (500VDC)
4
Dielectric
Voltage
Between
non-connected terminals
500V/0.5mA/60S
Between terminals
and the metal frame
1500V/0.5mA/60S
5 Electrical Life ≥10000 cycles
6 Mechanical Life ≥3000000 cycles
7 Operating Temperature -25~105℃
8 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
9 Vibration Proof Vibration Frequency : 10~55HZ;
Amplitude :1.5mm;
Three directions :1H
10 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time :2~3S
11 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
12 Safety Approvals UL、CSA、TUV、ENEC
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa

Tongda Wire Electric Without Lever Micro Switch Feature And Application


A sensitive switch, also known as a quick switch or micro switch, is a contact mechanism that operates with a specified stroke and force.The switch is housed within a protective shell and is actuated by an external drive rod. Due to its small contact spacing, it is ideal for use in applications where space is limited or where quick on/off action is required.It is often used as a door switch in anti-theft systems.

Tongda Wire Electric Without Lever Micro Switch Details
