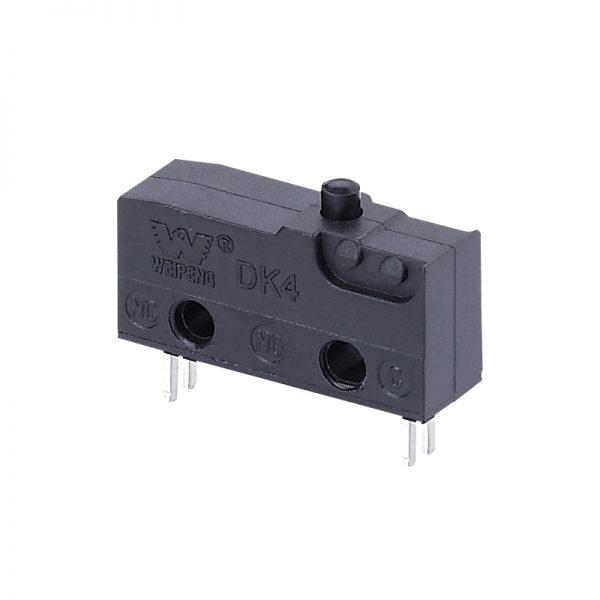

Sweeper Small Micro Switch
  • Sweeper Small Micro SwitchSweeper Small Micro Switch

Sweeper Small Micro Switch

WEIPENG® is a leading manufacturer and supplier of Sweeper small micro switch in China. With years of experience in switch, we offer competitively priced products that have gained popularity in the European and American markets. We are excited to establish a long-lasting partnership with you in China.

Model:DK4-DT-017

Send Inquiry

Product Description


WEIPENG® is a professional leader China Sweeper Small Micro Switch manufacturers with high quality and reasonable price. Welcome to contact us.

Tongda Wire Electric Sweeper Small Micro Switch Introduction


A Sweeper small micro switc is a switch mechanism that features a small contact interval and rapid movement.It has a specified stroke and specified force for switch action contacts, and is enclosed within a protective shell.The external drive rod of the Sweeper small micro switc is used to activate it.Due to its compact size and small contact spacing, it is commonly referred to as a micro switch or sensitive Sweeper small micro switc.



Tongda Wire Electric Sweeper Small Micro Switch Parameter (specification)


Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 10(1.5)A 125/250VAC 10A 36VDC
2 Contact Resistance ≤50mΩ  Initial value
3 Insulation Resistance ≥100MΩ  (500VDC)
4
Dielectric
Voltage
Between
non-connected terminals
500V/0.5mA/60S
Between terminals
and the metal frame
1500V/0.5mA/60S
5 Electrical Life ≥10000 cycles
6 Mechanical Life ≥3000000 cycles
7 Operating Temperature -25~105℃
8 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
9 Vibration Proof Vibration Frequency : 10~55HZ;
Amplitude :1.5mm;
Three directions :1H
10 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time :2~3S
11 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
12 Safety Approvals UL、CSA、TUV、ENEC
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa

Tongda Wire Electric Sweeper Small Micro Switch Feature and Application


Sweeper small micro switch in the need to frequently change the circuit of the equipment for automatic control and safety protection, widely used in electronic equipment, instruments, mines, power systems, household appliances, electrical equipment, and aerospace, aviation, ships, missiles, tanks and other military fields, has been widely used in the above fields, the switch is small, but plays an irreplaceable role.
At present, the mechanical life of microswitches on the domestic market varies from 3W to 1000W times according to the different use requirements, generally 10W, 20W, 50W, 100W, 300W, 500W and 800W times. Beryllium bronze, tin bronze and stainless steel wire are generally used in China as reed. ALPS in foreign countries can do it up to 1000W, their reed is made of rare metal titanium.
It can be used in computer mouse, automobile mouse, automobile electronic products, communication equipment, military products, test instruments, gas water heater, gas cooker, small household appliances, microwave oven, rice cooker, float equipment, medical equipment, building automation, electric tools and general electrical and radio equipment, 24 hour timer, etc.
