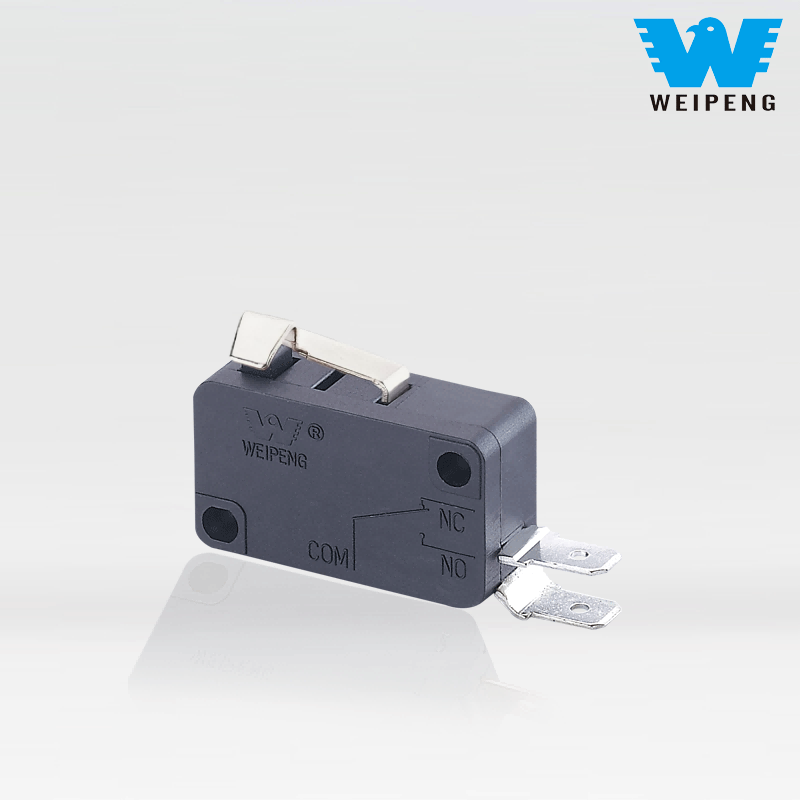

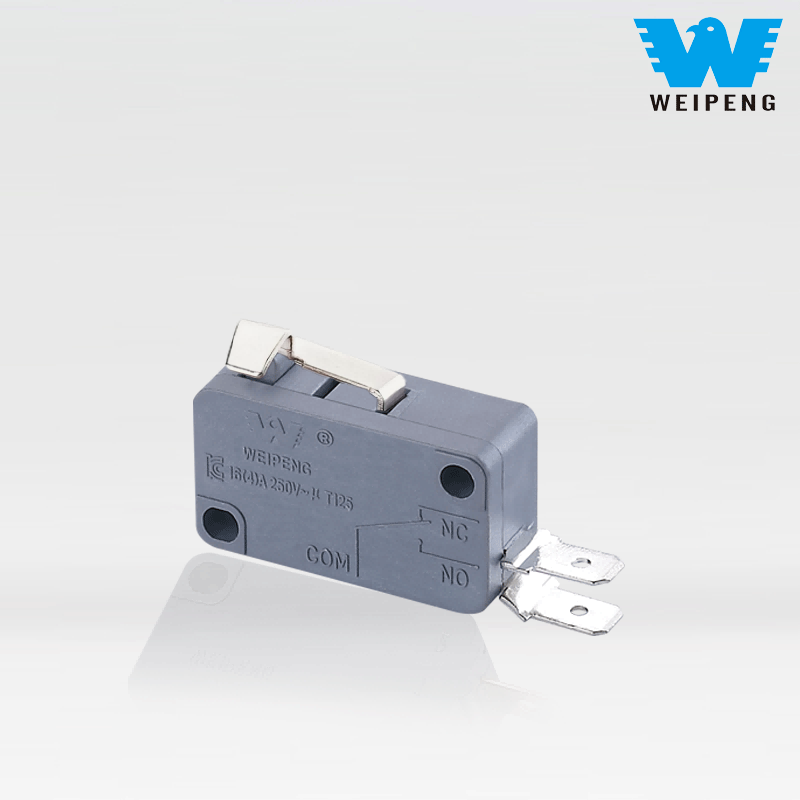

Three Pins Large Micro Switch with Handle

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the 1Three Pins Large Micro Switch with Handle features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism.

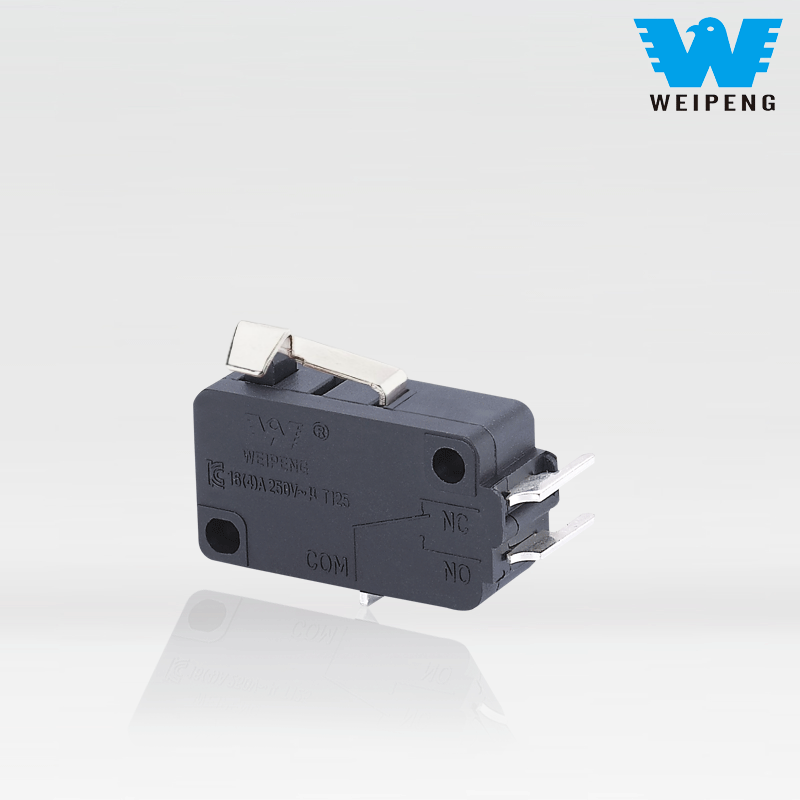

Model:HK-14-10A-304

Send Inquiry

Product Description

WEIPENG® is a leading Three Pins Large Micro Switch with Handle manufacturers, suppliers and exporter.

Micro Switch Introduction

The HK-14 switch, developed and produced independently by Yueqing Tongda Cable Factory under the WEIPENG brand, is a large micro switch positioned for the mid-to-high-end market. Thanks to its precise structural design, strict quality control, and versatile adaptability, it plays a key role in various on-off control scenarios. Unlike conventional switch products, it has developed a unique competitive advantage in stability and adaptability, making it a preferred product in the industry that combines practicality and professionalism.

The HK-14 switch has achieved upgraded optimization in contact technology. The silver alloy contacts are treated with a special coating, which not only enhances conductivity and wear resistance but also effectively resists oxidation and corrosion, preventing common issues such as contact sticking and poor connection. Combined with a sealed structure design, it can effectively block dust, moisture, and other impurities, further ensuring the on-off stability of the switch in complex environments and reducing the failure rate.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

Micro Switch Details
