Waterproof Micro Switch Limit 2 Wire

As the professional manufacturers, WEIPENG® would offer you Waterproof Micro Switch Limit 2 Wire we will offer you the best after-sale service and timely delivery. For more information on the 0.1a 48VDC 125v 250VAC Waterproof Micro Switch, please feel free to contact us.

Model:FSK-20-411

Send Inquiry

Product Description

WEIPENG® is a leading Of Waterproof Micro Switch Limit 2 Wiresuppliers and exporter.

Tongda Waterproof Micro Switch Limit 2 WireIntroduction

Waterproof micro switches are usually made with reliable contact materials. It ensures stable current transmission and contact. Waterproof micro switches are suitable for control switches in logistics equipment. It can realize the start-stop, stop and other functions of the conveyor belt. Waterproof micro switches usually have simple maintenance and repair methods. It can quickly replace failed parts, reducing repair time and costs.

Tongda Waterproof Micro Switch Limit 2 Wire Principle

Switch Technical Characteristics:
ITEM	Technical parameter		Value
1	Electrical Rating		0.1A/1A/3A 250VAC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude : 1.5mm; Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Tongda Waterproof Micro Switch Limit 2 Wire Feature and Application

Waterproof micro switches are suitable for the following fields: Household and construction fields: suitable for switch control of indoor and outdoor lamps, doors and windows, and water level control of pools. Industrial field: It is suitable for switch control and liquid level detection of automatic production lines and industrial mechanical devices. Automotive and transportation fields: It is suitable for the control of vehicle lights, wipers, airbags and other devices, as well as the monitoring of vehicle fluid levels. Water conservancy and environmental protection fields: suitable for applications in water treatment, drainage, and water supply systems such as water level control, liquid level detection, and pump start and stop control. Medical and health fields: suitable for liquid level monitoring and control in medical equipment, such as infusion equipment, blood pressure monitors, etc.

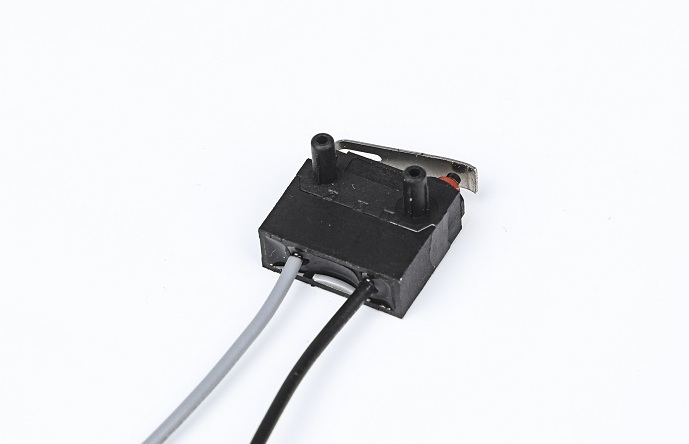

Tongda Waterproof Micro Switch Limit 2 Wire Details
