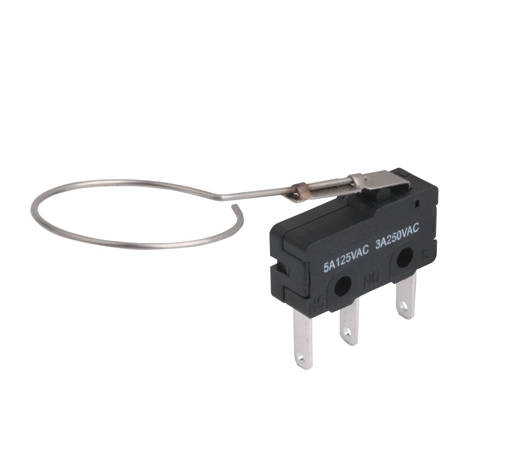

Traffic Tools Micro Switch

Traffic Tools Micro Switch

Traffic Tools Micro Switch has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small.

Model:HK-04G-331

Send Inquiry

Product Description


WEIPENG® is a leading Micro Switch For Equipments Roller Lever manufacturers, suppliers and exporter.

Tongda Traffic Tools Micro Switch Introduction


Micro switches can be found in automotive seat belts, providing feedback on buckling status.They are employed in robotic arms and automation systems, providing control and feedback.They are used in industrial ovens and furnaces, ensuring precise control and accurate temperature regulation. Micro switches can have different quick contact properties as needed, such as quick contact, etc. Micro switches can have different quick closing properties as needed, such as quick closing, etc. Micro switches can have different pulse triggering properties as needed, such as pulse triggering, etc. Micro switches can have different frequency response properties as needed, such as high frequency, etc. Micro switches can have different voltage emergency power-off performance according to needs, such as voltage power-off, etc.


Tongda Traffic Tools Micro Switch Application


Micro switches are widely used in various fields. The following are several main application areas: Electronic equipment: Micro switches are often used in electronic equipment, such as computers, mobile phones, tablets, etc. They can be used to control power switches, function keys, volume buttons, and more. Home appliances: Micro switches are also widely used in home appliances, such as TVs, air conditioners, washing machines, refrigerators, etc. They can be used to control electrical switches, protection devices, etc.

Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 5(2)A 125V/250VAC 10(3)125V/250VAC
2 Contact Resistance ≤50mΩ  Initial value
3 Insulation Resistance ≥100MΩ  (500VDC)
4
Dielectric
Voltage
Between
non-connected terminals
500V/0.5mA/60S
Between terminals
and the metal frame
1500V/0.5mA/60S
5 Electrical Life ≥10000 cycles
6 Mechanical Life ≥100000 cycles
7 Operating Temperature -25~125℃
8 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
9 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude :1.5mm;
Three directions :1H
10 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature : 235±5℃
Immersing Time :2~3S
11 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
12 Safety Approvals UL、CSA、VDE、ENEC、CE
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure : 86~106KPa


Tongda Traffic Tools Micro Switch Details
