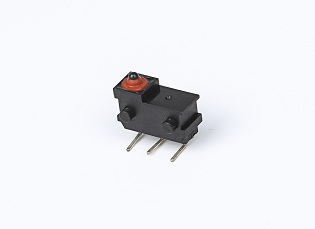

Waterproof Micro Switch Control Switch in the UAV

Waterproof Micro Switch Control Switch in the UAV

Waterproof Micro Switch Control Switch in the UAV has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small.

Model:FSK-20-165

Send Inquiry

Product Description


WEIPENG® is a leading Waterproof Micro Switch Control Switch in the UAV manufacturers, suppliers and exporter.

Tongda Waterproof Micro Switch Control Switch in the UAV Introduction


Waterproof micro switch is a kind of micro switch with waterproof performance, which is often used in electronic equipment, household appliances, automotive electrical appliances and other fields.

Waterproof micro switches have high electrical life and are not easily damaged by moisture. It can stably transmit current signal in wet environment. Waterproof micro switches are often used as control switches in ship deck equipment. It has good salt tolerance and is suitable for seawater environments.


Tongda Waterproof Micro Switch Control Switch in the UAV Application And Specification


Waterproof micro switches are suitable for the following fields: Household and construction fields. Industrial field. Automotive and transportation fields. Water conservancy and environmental protection field. Medical and health field 。Waterproof Micro Switch has a wide range of application fields.


Switch Technical Characteristics:
ITEM Technical parameter Value
1 Electrical Rating 0.1A/1A/3A 250VAC
2 Operating Force 1.0~2.5N
3 Contact Resistance ≤300mΩ
4 Insulation Resistance ≥100MΩ  (500VDC)
5 Dielectric
Voltage
Between
non-connected terminals
500V/0.5mA/60S
Between terminals
and the metal frame
1500V/0.5mA/60S
6 Electrical Life ≥50000 cycles
7 Mechanical Life ≥100000 cycles
8 Operating Temperature -25~105℃
9 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
10 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude : 1.5mm;
Three directions :1H
11 Solder Ability :More than 80% of immersed part
shall be covered with solder
Soldering Temperature : 235±5℃
Immersing Time :2~3S
12 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa


Tongda Waterproof Micro Switch For ATM Machines Details
