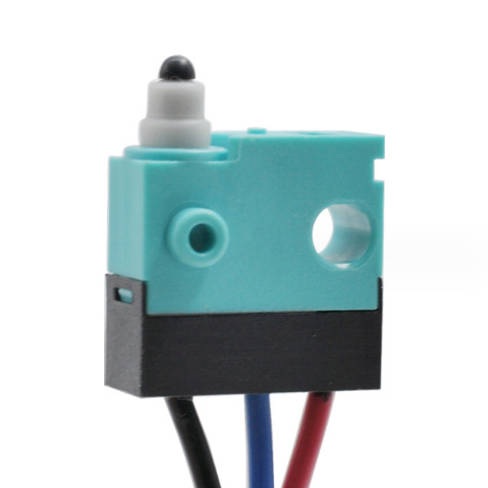

Waterproof Micro Switch Security Equipment

Waterproof Micro Switch Security Equipment

Waterproof Micro Switch Security Equipment has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small.

Model:FSK-20-406W

Send Inquiry

Product Description


WEIPENG® is a leading China manufacturers, suppliers and exporter of waterproof micro switch

Tongda Waterproof Micro Switch Security Equipment Introduction


Waterproof micro switches are suitable for control switches in smart homes. It can realize remote control of lights, curtains, door locks, etc.Waterproof micro switches are usually designed with low noise.When using a waterproof switch, avoid using too much or too little force.Avoid excessive vibration or collision of the waterproof switch.Avoid using damaged waterproof switch, should be replaced in time.If the waterproof switch is abnormal or malfunctioning, it should be deactivated immediately and professional maintenance help should be sought.Comply with the relevant electrical safety regulations and standards in your country or region.


Tongda Wire Electric Factory FAQ




Q1.:Do you have any certification about your factory or products?

A1:Of course,we have strong system certified,like IATF16949,ISO14001,UL,TUV,VDE,Rohs,Reach and related approvals.


Q2.What is your sample policy?

A2:Free sample could be provided within 3days,but express charge should be paid by customer.


Q3. What is your terms of packing?

A3: Generally, we pack goods in neutral boxes and brown cartons,or customized if qty reached.


Q4. What is your terms of payment?

A4: In common,T/T 30% as deposit, and 70% before delivery.,if the amount >2000USD



Tongda Waterproof Micro Switch Security Equipment (Specification)

Switch Technical Characteristics:
ITEM Technical parameter Value
1 Electrical Rating 0.1A/1A/3A 250VAC
2 Operating Force 1.0~2.5N
3 Contact Resistance ≤300mΩ
4 Insulation Resistance ≥100MΩ  (500VDC)
5 Dielectric
Voltage
Between
non-connected terminals
500V/0.5mA/60S
Between terminals
and the metal frame
1500V/0.5mA/60S
6 Electrical Life ≥50000 cycles
7 Mechanical Life ≥100000 cycles
8 Operating Temperature -25~105℃
9 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
10 Vibration Proof Vibration Frequency :10~55HZ
Amplitude : 1.5mm
Three directions :1H
11 Solder Ability :More than 80% of immersed part
shall be covered with solder
Soldering Temperature : 235±5℃
Immersing Time :2~3S
12 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa


Tongda Waterproof Micro Switch Solenoid Valve Details
