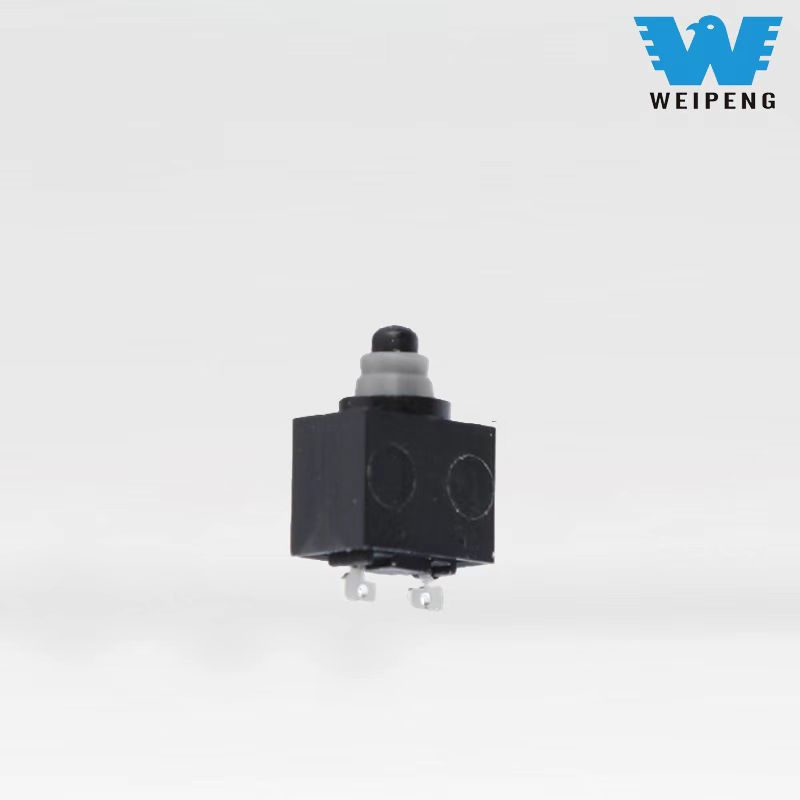

Waterproof micro switch two-legged

WEIPENG® has established itself as a Waterproof micro switch two-legged manufacturer and supplier in China, providing quality 0.1A 12VDC waterproof micro switch solutions for many years. For more information on the two-legged switch, please feel free to contact us.

Model:FSK-21-D-004

Send Inquiry

Product Description

WEIPENG® is a leading China Waterproof micro switch two-legged manufacturers, suppliers and exporter.

Product Introduction

There are many kinds of Waterproof Micro Switch two-legged, hundreds of internal structure, according to the volume can be divided into ordinary type, small and ultra-small. According to the protection performance, there are three types of waterproof, dustproof, explosion-proof; Waterproof Micro Switch two-legged can be divided into single connection type, double connection type and multi connection type according to the disconnection form. There is a strong close waterproof micro switch; According to the breaking ability, it can be divided into ordinary type, DC type, micro current type and large current type.

Product Feature And Application

The small household appliance button switch finds extensive use in a variety of harsh environments that are cold, wet, and dusty. These environments include automobiles, spraying equipment, refrigerators, ice makers, bathroom equipment, air conditioning, water heaters, and some outdoor equipment and instruments. Moreover, they are also ideal for use in the charging seats of new energy vehicles, making them a versatile and essential component in various industries.

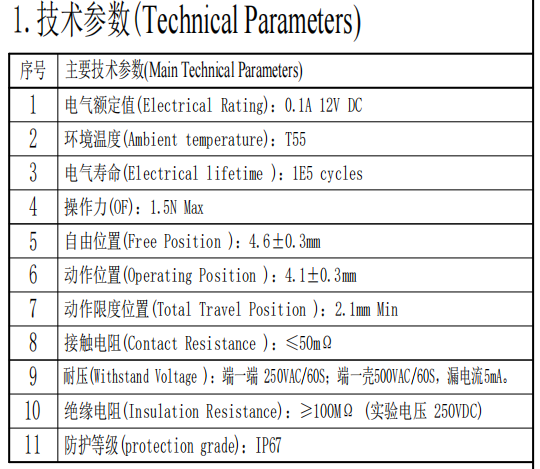

Switch Technical Characteristics:
ITEM	Technical parameter		Value
1	Electrical Rating		0.1A 12VDC
2	Operating Force		1.5N Max
3	Contact Resistance		≤50mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	200V/0.5mA/60S
		Between terminals and the metal frame	500V/0.5mA/60S
6	Electrical Life		≥10000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		T55
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude : 1.5mm; Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder		Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
