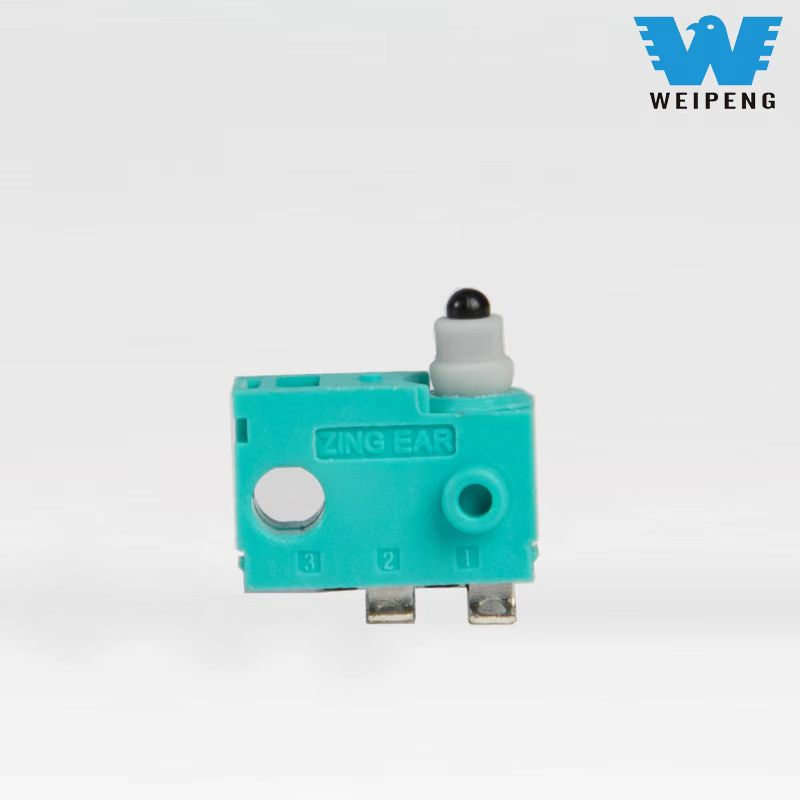

Waterproof Micro Switch Ultra Compact

Waterproof Micro Switch Ultra Compact has a small contact interval and a quick action mechanism, and the contact mechanism for switching action with the specified stroke and force is covered by the shell, and there is a transmission on the outside, and the shape is small.

Model:FSK-20-586

Send Inquiry

Product Description

WEIPENG® is a leading China manufacturers, suppliers and exporter of Waterproof Micro Switch Ultra Compact

Product Introduction

This sealed waterproof micro switch are suitable for control switches in smart homes. It can realize remote control of lights, curtains, door locks, etc.Waterproof micro switches are usually designed with low noise.When using a waterproof switch, avoid using too much or too little force.Avoid excessive vibration or collision of the waterproof switch.Avoid using damaged waterproof switch, should be replaced in time.If the medical equipment micro switch mini is abnormal or malfunctioning, it should be deactivated immediately and professional maintenance help should be sought.Comply with the relevant electrical safety regulations and standards in your country or region.

This 30 Volt Rocker Switch features a double break contact structure, rapid arc extinguishing technology, and overload protection function, ensuring safe performance. It is equipped with a military-grade spring mechanism and an anti-vibration internal locking structure, making it reliable in quality.

Tongda Factory FAQ

Q1.:Do you have any certification about your factory or products?

A1:Of course,we have strong system certified,like IATF16949,ISO14001,UL,TUV,VDE,Rohs,Reach and related approvals.

Q2.What is your sample policy?

A2:Free sample could be provided within 3days,but express charge should be paid by customer.

Q3. What is your terms of packing?

A3: Generally, we pack goods in neutral boxes and brown cartons,or customized if qty reached.

Q4. What is your terms of payment?

A4: In common,T/T 30% as deposit, and 70% before delivery.,if the amount >2000USD

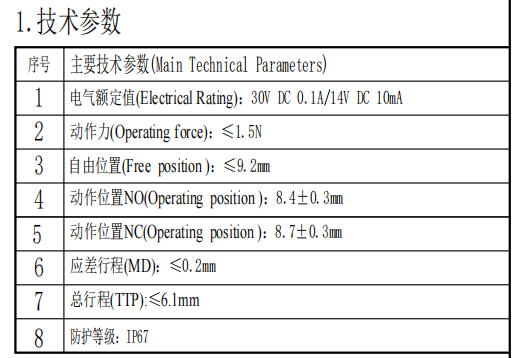

Product Specification

Switch Technical Characteristics:
ITEM	Technical parameter	Value
1	Electrical Rating	10mA 14V DC/0.1A 30VDC
2	Operating Force	≤1.5N
6	Electrical Life	≥50000 cycles
7	Mechanical Life	≥100000 cycles
8	NO(Operating Position)	8.4±0.3mm
9	NC(Operating Position)	8.7±0.3mm
10	Vibration Proof	Vibration Frequency :10~55HZ Amplitude : 1.5mm Three directions :1H
11	Solder Ability :More than 80% of immersed part shall be covered with solder	Soldering Temperature : 235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance	Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions	Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
