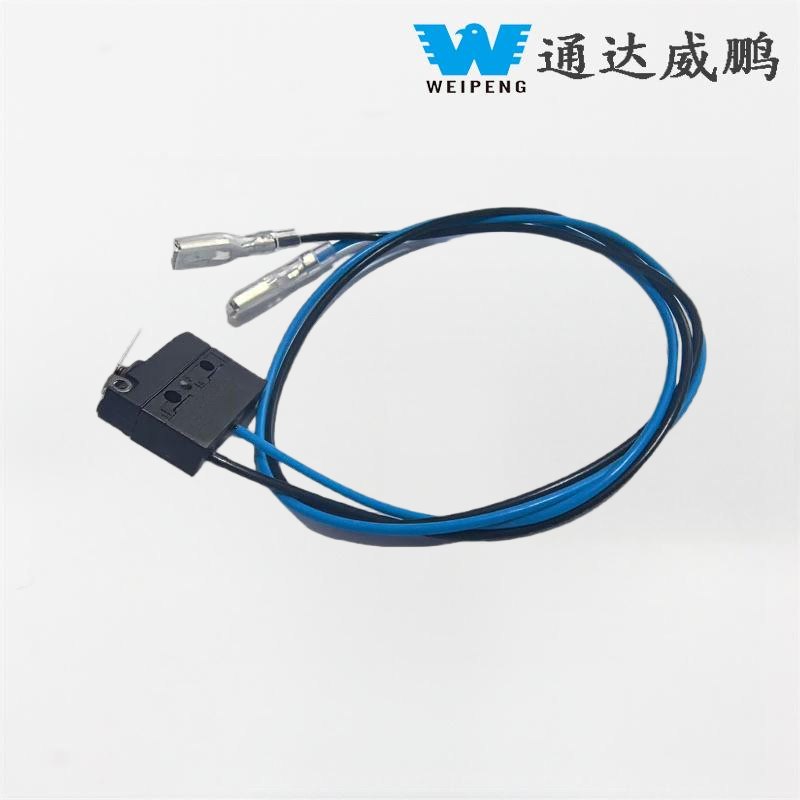

Waterproof Micro Switch with Wire Leads

As the core product developed by Yueqing Tongda Cable Factory for special environments such as humidity, dust, and outdoor conditions, the FSK-18 series waterproof switches boast 'IP67 high protection and stable electrical performance' as their key advantages. Leveraging 35 years of switch manufacturing expertise, they feature various triggering modes, including rocker and button types, and are widely used in outdoor lighting, kitchen appliances, automotive electronics, industrial cleaning equipment, and other scenarios, making them a reliable choice for circuit control in harsh environments.

Model:FSK-18-D-002

Send Inquiry

Product Description

WEIPENG® is a leading Waterproof Micro Switch with Wire Leads suppliers and exporter.

Waterproof Micro Switch Introduction

Waterproof Micro Switch Feature and Application

The characteristics of the waterproof switch mainly include the following aspects:
Waterproof performance: The waterproof switch has a waterproof design and can withstand the intrusion of water and moisture. They usually use special sealing structure and waterproof material to ensure reliable operation in wet environment.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		0.1A 5(2)A 10(3)A 125/250VAC 0.1A 5A 36VDC
2	Operating Force		1.0~2.5N
3	Contact Resistance		≤300mΩ
4	Insulation Resistance		≥100MΩ (500VDC)
5	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
6	Electrical Life		≥50000 cycles
7	Mechanical Life		≥100000 cycles
8	Operating Temperature		-25~105℃
9	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
10	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm; Three directions :1H
11	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
12	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa
