Weipeng black Small Travel Limit Micro Switch

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the Weipeng black Small Travel Limit Micro Switch features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism. Its performance and reliability have been certified by multiple authoritative organizations worldwide, securing its mainstream position in the niche market.

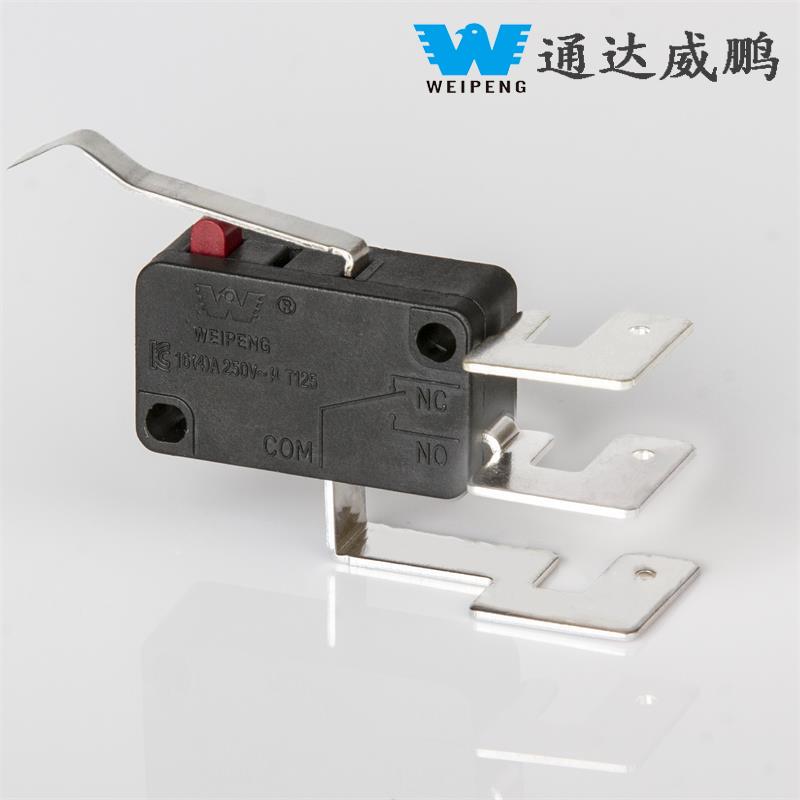

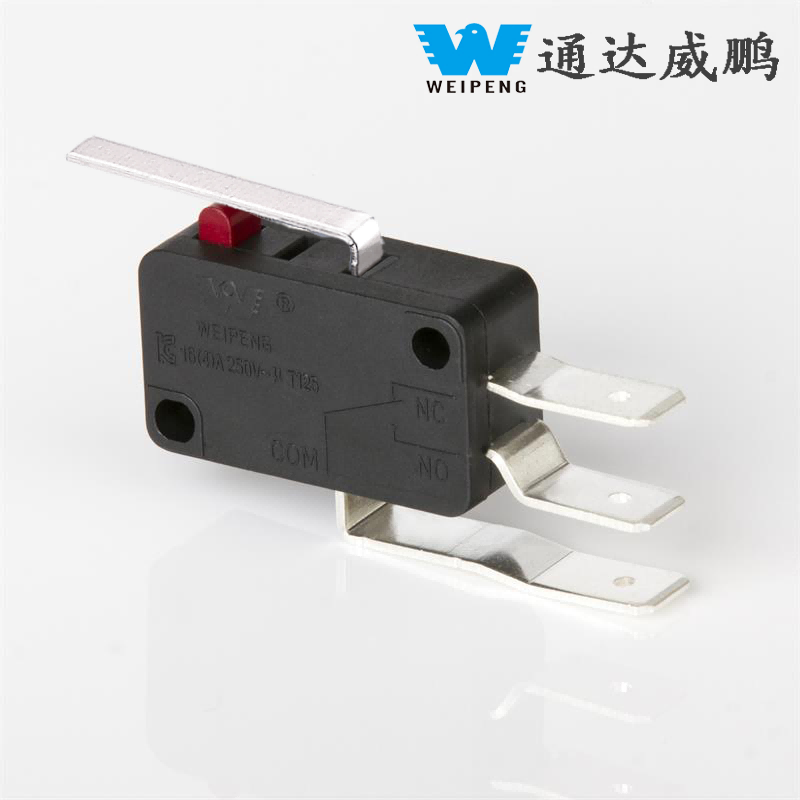

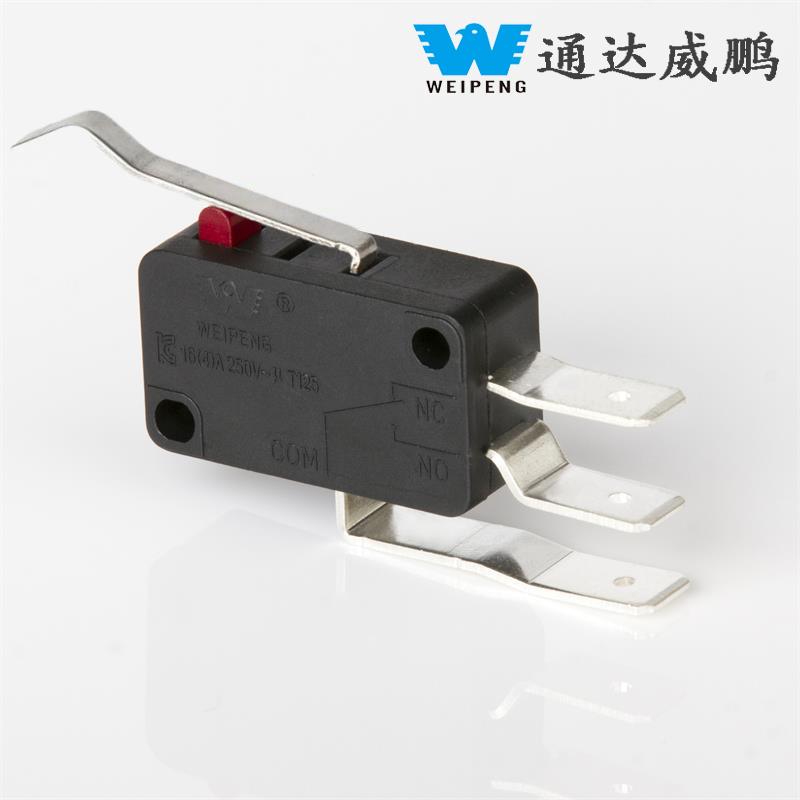

Model:HK-14-16AP-686

Send Inquiry

Product Description

WEIPENG® is a leading Weipeng black Small Travel Limit Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

Typical Application Scenarios

The HK-14 series, with its high adaptability, is widely used in core devices across various fields:

Home Appliances: Microwave door control, washing machine program control, oven temperature control triggers, water dispenser switches;

Industrial Automation: Travel limit detection, conveyor positioning, small machinery emergency stop devices, test equipment signal triggers;

Automotive Electronics: Car door lock detection, seat adjustment limit switches, trunk switches, power window control;

Power Tools: Drill and angle grinder start/stop switches, tool overload protection triggers;

Instruments and Meters: Medical equipment buttons, measuring instrument limit switches, communication equipment signal switching.

Installation and Usage Guidelines

When installing, the switch must be mounted on a flat surface and fastened with a flat washer or spring washer to prevent malfunction or casing damage caused by uneven surfaces. Choose models based on the environment: for humid or dusty conditions, it is recommended to use a sealed custom version to enhance protection. Do not apply lubricating oil to the button or actuator to prevent contact sticking, functional failures, or even burnout. During storage, keep the product in a dry, ventilated area, protected from rain or snow, and avoid high temperature and humidity that may cause component aging, ensuring the product retains its original performance.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.
