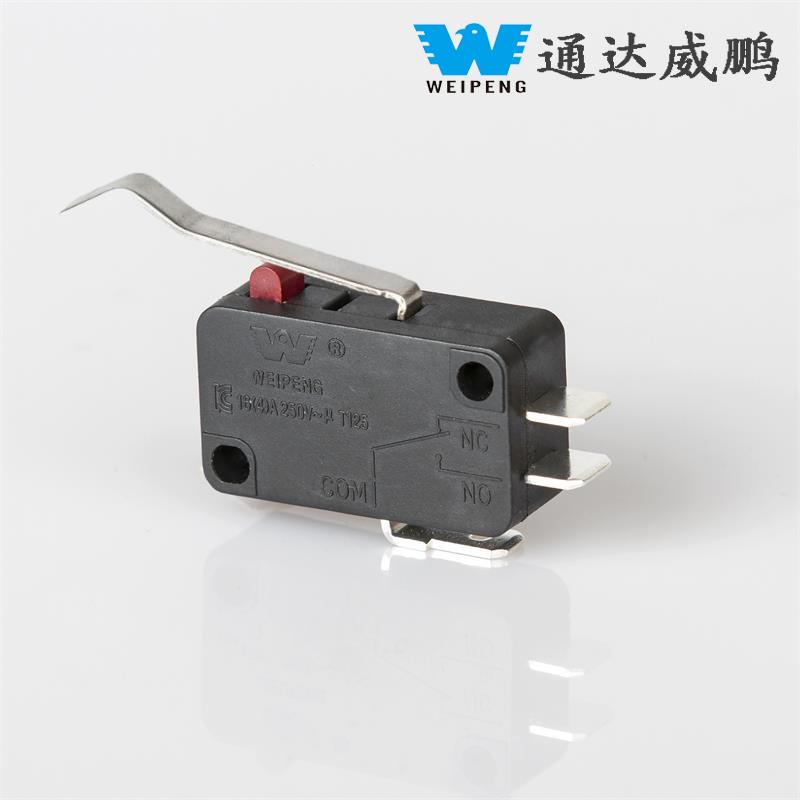

Weipeng Electronic Component Lever Micro Switch

As the benchmark model of Yueqing Tongda Wire Electric Factory's micro switch series, the Weipeng Electronic Component Lever Micro Switch features "high sensitivity, ultra-long lifespan, and multi-scenario adaptability" as its core advantages. Integrating the company's 35 years of switch manufacturing expertise, it has become a key control component in household appliances, automotive electronics, industrial automation, and other fields, thanks to its minimal contact gap and rapid action mechanism. Its performance and reliability have been certified by multiple authoritative organizations worldwide, securing its mainstream position in the niche market.

Model:HK-14-16AP-607

Send Inquiry

Product Description

WEIPENG® is a leading Weipeng Electronic Component Lever Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction

The product has obtained major global safety certifications including UL, C-UL, ENEC, VDE, CE, CB, TUV, CQC, and KC, complies with the IEC 61058 standard, and meets market access requirements in regions such as Europe, America, and Asia-Pacific. The company has achieved ISO9001 and IATF 16949 quality management system certifications and strictly implements the RoHS and REACH environmental directives, ensuring refined control throughout the entire production process. With 6 national invention patents and 48 utility model patents, the HK-14 series achieves industry-leading levels of reliability and consistency.

Installation and Usage Guidelines

When installing, the switch must be mounted on a flat surface and fastened with a flat washer or spring washer to prevent malfunction or casing damage caused by uneven surfaces. Choose models based on the environment: for humid or dusty conditions, it is recommended to use a sealed custom version to enhance protection. Do not apply lubricating oil to the button or actuator to prevent contact sticking, functional failures, or even burnout. During storage, keep the product in a dry, ventilated area, protected from rain or snow, and avoid high temperature and humidity that may cause component aging, ensuring the product retains its original performance.

Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		5(2)A/10A/16(3)A/21(8)A 250VAC
2	Contact Resistance		≤30mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1000V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥50000 cycles
6	Mechanical Life		≥1000000 cycles
7	Operating Temperature		-25~125℃
8	Operating Frequency		electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering : 300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、KC、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Micro Switch Feature and Application

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small 3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.

Micro Switch Details
