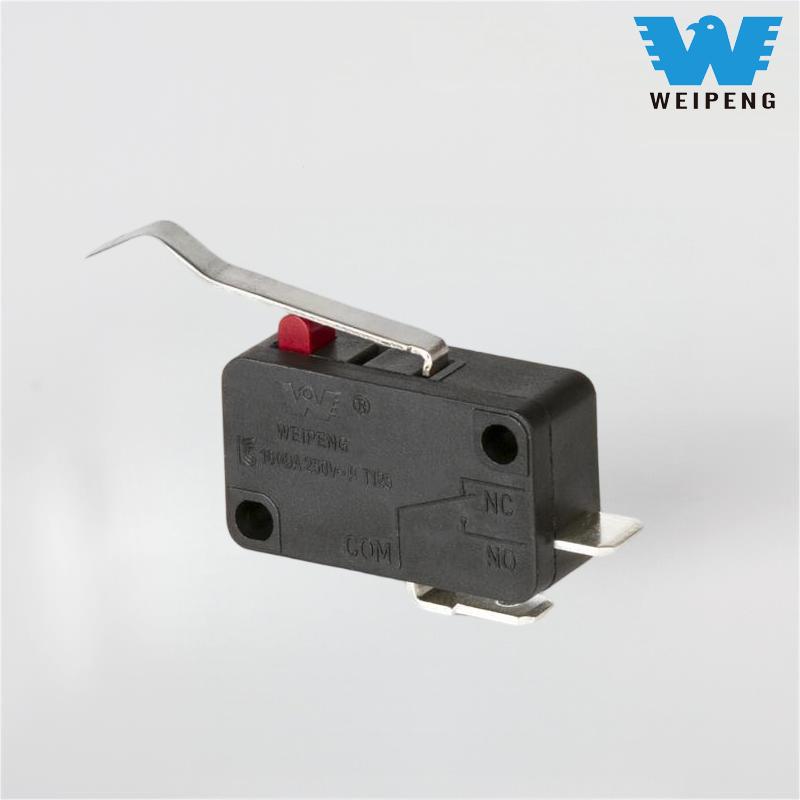

Weipeng Long-Handle 16A High-Current Sealing Machine Packing Machine Micro Switch

The HK-14 series covers multiple rated loads, with mainstream specifications including 5A/10A/16A 125/250V AC, meeting power requirements for different scenarios. The core electrical performance is excellent: initial contact resistance ≤ 25mΩ, ensuring low-loss conduction; insulation resistance ≥ 100MΩ (DC 500V), and dielectric strength up to 1500V AC (between terminals), effectively preventing leakage risks. The mechanical life reaches up to 3 million cycles, and the electrical life is suitable for long-term high-frequency use. Operation frequency can reach 600 cycles/min mechanically and 30 cycles/min electrically, balancing durability and response speed.

The product has obtained major global safety certifications including UL, C-UL, ENEC, VDE, CE, CB, TUV, CQC, and KC, complies with the IEC 61058 standard, and meets market access requirements in regions such as Europe, North America, and Asia-Pacific. The company has achieved ISO9001 and IATF 16949 quality management system certifications, rigorously implements RoHS and REACH environmental directives, and maintains meticulous control throughout the entire production process. With 6 national invention patents and 48 utility model patents, the HK-14 series attains an industry-leading level in reliability and consistency.
