Sealed Micro Switch: Comprehensive Guide for Waterproof and Reliable Applications

Want to learn about the Sealed Micro Switch? This article explains its structure, advantages, and applications. Learn how sealed micro switches stand out from conventional switches and why they are commonly used in tough environmental conditions such as water-resistant applications. This guide will give you hands-on information about selecting, installing, and maintaining sealed micro switches for industrial, automotive, and consumer electronics.

What Is a Micro Switch?

The micro switch is a small snap-action switch which is typically used to identify position or conditions in a machine. Thanks to its fast switching capability, even a small force on the actuator will produce a rapid and reliable connection change in the circuitry. This is crucial for many applications that require repetitive use since it assures uniformity of performance and long service life.

Micro-switches are famous for their precision and durability with the estimated life of millions of cycles. Their "snap-action" feature minimizes the problem of contact bounce and also reduces electrical noise and increases reliability compared to normal switches. Micro-switches are commonly used in safety interlocks, control panels, and the doors of appliances.

Sealed Micro Switch: What Makes It Different?

A Sealed Micro Switch is a type of micro switch that is enclosed in a casing or has a seal around it that protects it against water, dust, chemicals, and other environmental conditions. Seal materials, which are usually made of rubber or thermoplastic, cover the contacts and actuator in order to satisfy ratings such as IP67 or IP68 for waterproofing and protection against dust.

This protection gives sealed micro switches an edge since they can guarantee a successful operation outside as well as in marine, automotive, medical, and industrial applications. These switches work well in places subjected to moisture, dirt, and frequent cleaning agents, thereby eliminating the risk of exposure that is a matter of concern with unsealed switches.

Key Features and Advantages

Sealed micro switches provide specific advantages:

- The technological advancements in waterproof actuators enable them to work perfectly well in rainy or humid conditions.

- Strong dust and chemical protection ensures reliable functioning under dirty conditions.

- Long-lasting operation because of protected internal parts and durable materials used.

- High reliability concerning functionality in various working conditions.

These characteristics are very important in situations where malfunctioning machinery could create threats to safety or lead to expensive outages, for instance, in production plants, in means of transport, and in medical devices.

How Sealed Micro Switches Work

Standard micro switches function based on the same operating principle as well: the actuator causes internal contacts to change the state of the circuit almost instantaneously. What makes the difference is that the contacts are sealed: the materials used for sealing the contacts are silicone or plastic but actuators are still mobile.

Sealed switches undergo strict testing in regard to waterproofing; IP67 or IP68-rated switches are either submerged in or sprayed with water to ensure the same protection. A switch operates via its COM (common), NO (normally open), and NC (normally closed) terminals, switching the connections in a matter of milliseconds.

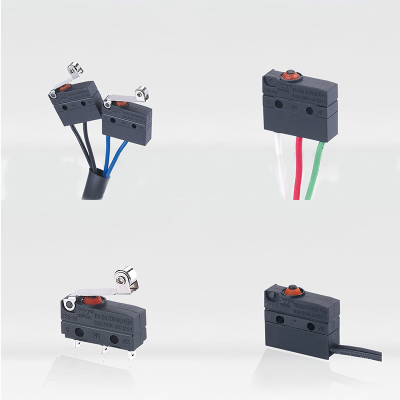

With their small footprint and different types of actuators including rollers, micro switches are perfect for tight areas.

Practical Applications

Sealed micro switches find widespread use in:

Industrial Automation: Protect machines from coolant and dust. Used in robotics, conveyor systems, and factory sensors.

Automotive: Controls the mechanism of window lifts, door locks, and safety sensors, maintaining the functionality under any environment including weather, mud, and temperature variations.

Medical Devices: Use infusion pumps as well as diagnostic and sterilization machines in scenarios, where fluid-proof reliability is very important.

Consumer Electronics: Enable waterproof buttons in cameras, fitness trackers, and appliance controls.

Marine Equipment: Used in boat controls and outdoor lighting where saltwater and weather resistance is essential.

The numerous applications across various industries shows the importance sealed micro switches in both everyday activities and urgent procedures.

Selection Criteria for Sealed Micro Switches

Choosing the right sealed micro switch involves reviewing:

- IP Rating: Higher ratings provide better protection against moisture and dust. Most of the time, IP67 and IP68 ratings are preferred.
- Type of actuator: Choose between lever, roller, or plunger actuators based on usage.
- Electrical rating: Ensure that the voltage/current ratings of the switch and that of the equipment match.
- Material and certifications: Check for suitable materials (plastic, stainless steel) and certifications (UL, CE, RoHS).
- Size and installation: Ensure proper fit and stability in installation.

Consult manufacturer datasheets for these specs before purchase.

Installation & Maintenance Tips

Install micro switches that are sealed onto surfaces that are clean and flat. Use fasteners which will not corrode anywhere necessary. Make sure that all seals are unbroken before wiring, and follow the manufacturer's instructions for making connections.

Routine maintenance involves sight inspection, regular electrical testing using a continuity meter, and careful cleaning. Replace any switch that shows evidence of seal damage and/or does not actuate consistently over time. In frequent-use environments, schedule periodic inspections to ensure waterproof micro switch operation.

Frequently Asked Questions (FAQ)

What Is Micro Switch And Sealed Micro Switch?A micro switch is a tiny switch that uses a snap-action mechanism to indicate a status or position of an item. A sealed version of a micro switch can also protect the switch mechanism against hostile elements such as water, dust and chemicals.

How does a waterproof micro switch work?Rubber and plastic are used in waterproof microswitches to make them watertight. They are certified to IP67 and IP68 standard for resistance against water.

Where are sealed micro switches used?Use in industrial, automotive, marine, medical, and consumer electronics industries where unsealed switches might be damaged due to moisture or dust.

Can sealed micro switches be submerged?
IP68-rated switches tolerate prolonged submersion, but always check manufacturer specs for limits.

How long do they last?
Typical lifespan is several million cycles, with longevity depending on quality and environment.

Sealed vs. Standard Micro Switches

Standard micro switches can be used in dry and controlled areas, but they are not protective against the elements. On the other hand, sealed micro switches are more dependable and long-lasting because they are water, dust, and chemical resistant. Although they cost a bit more, their effectiveness is unchallenged in crucial situations.

Whenever consistent performance and lower maintenance requirements are crucial, you should use sealed microswitches. This is particularly true in outdoor, medical, or industrial applications.

In conclusion, Sealed Micro Switch technology is the perfect answer for durable, waterproof and dustproof switching. Its performance in challenging conditions is unparalleled as it can be activated tirelessly with almost no need for maintenance. It can be used in many fields, including on machines and in vehicles or consumer electronics. All you need to do is select the proper specification, ensure correct installation and maintenance.
