The 10a micro switch is one of the most important components in a variety of electronic and mechanical devices. Due to its accuracy and robustness, the switch is commonly used in applications where accuracy and durability matter. In this guide, we will discuss the characteristics, different types, and applications of 10a micro switch and provide some tips for its troubleshooting and maintenance.

Understanding the Basics of a 10a Micro Switch

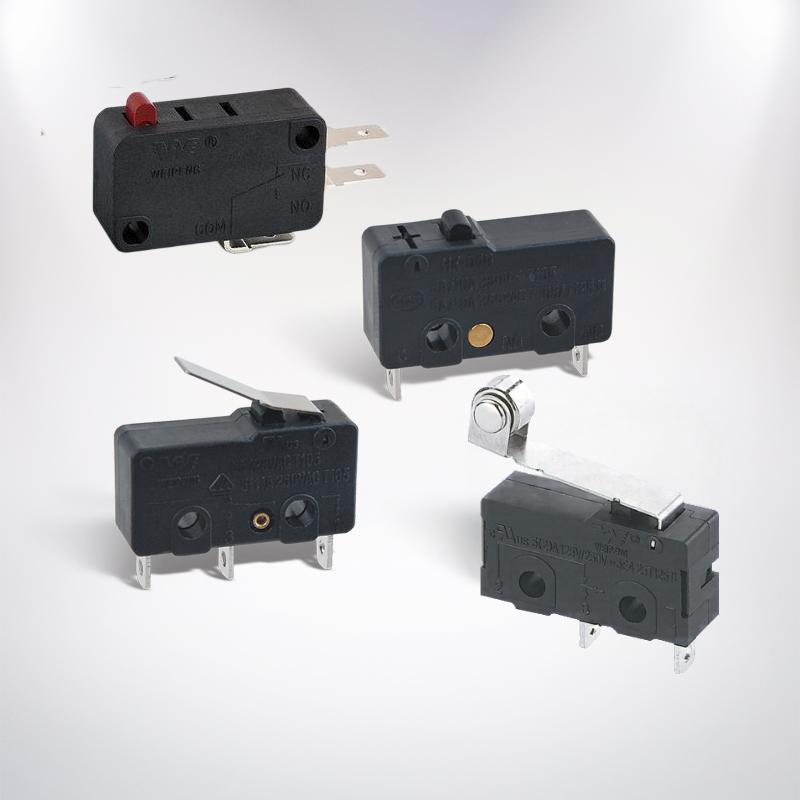

A micro switch is referred to as a very small and hyper-sensitive switch that consists of an actuator outside the switch with some contacts inside. The "10a" indicates that up to 10 amps of current can pass through the switch thus making it suitable for several electrical applications.

Types of 10a Micro Switches

Different types of micro switches are available, such as 10a SPDT Micro Switch and 10a DPDT Micro Switch. These types have their own advantages and constructed for particular situations:

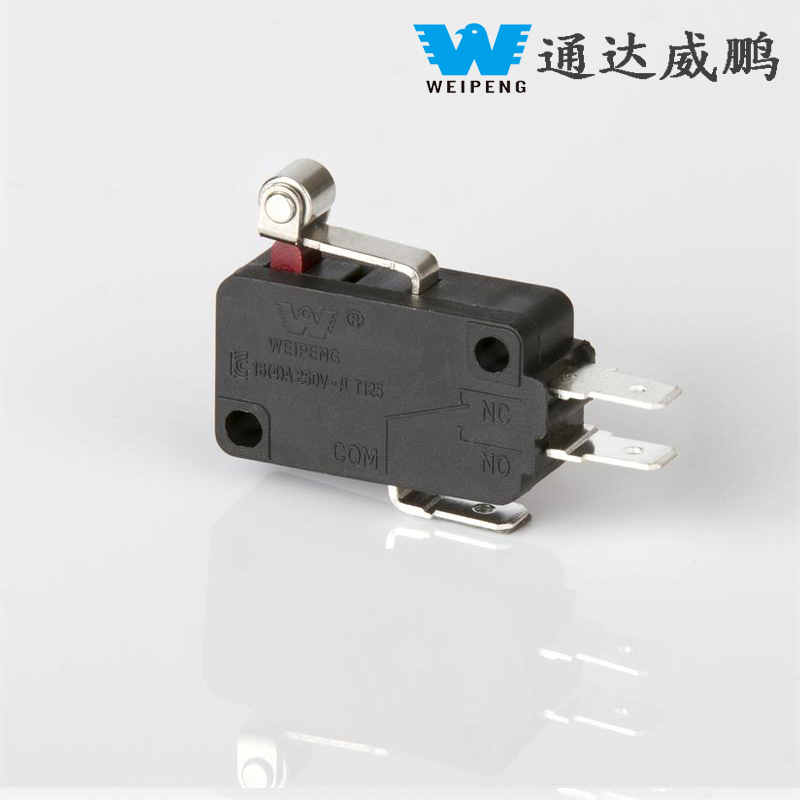

10a SPDT Micro Switch

The SPDT (Single Pole Double Throw) micro switch has one input which can be connected to two outputs. This means that the switch can control two separate outputs by using just one input signal.

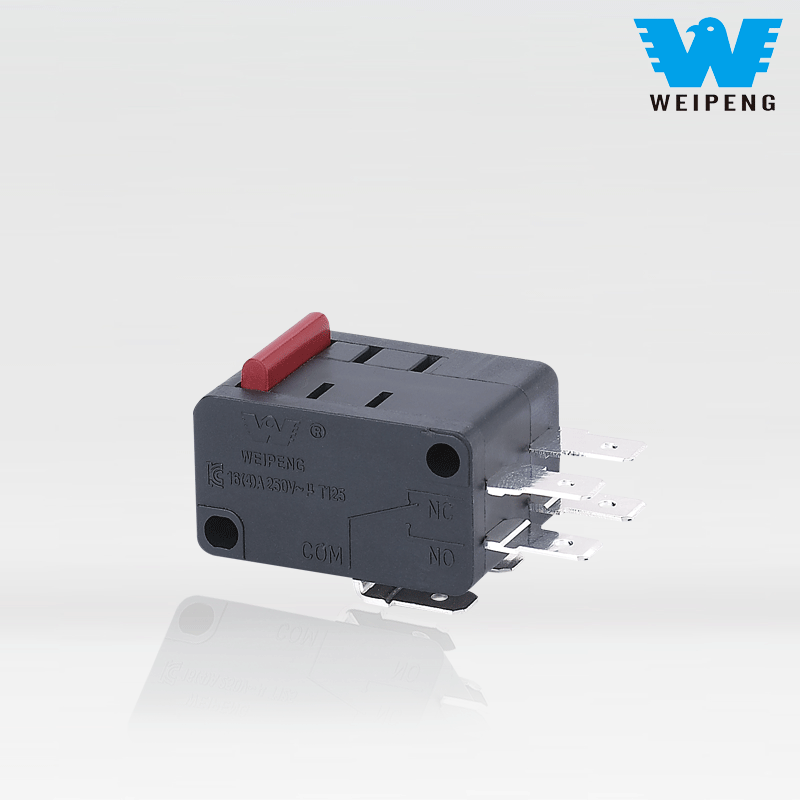

10a DPDT Micro Switch

The Double Pole Double Throw (DPDT) micro switch permits control of double circuits, therefore being more useful in implementing sophisticated operations that need the simultaneous execution of various switching functions.

Applications of 10a Micro Switches

10a micro switches have found numerous uses because of their strength and safety including but not limited to:

• Home appliances such as washing machines and microwaves
• Industrial control systems
• Automotive electrical systems

Troubleshooting Common Issues

Although micro switches are usually dependable, they can sometimes have issues. Below are some well-known problems along with some possible solutions.

Switch Fails to Actuate

This might be attributed to dirt and debris blocking the operation. Be sure to clean the switch thoroughly and verify that it is properly mounted.

Intermittent Operation

Problems that are only present sporadically may be attributed to bad connectivity or parts which have suffered some wear and tear. Check the switch for corrosion and damage accordingly and substitute any defective pieces.

FAQs

How many amps can a micro switch handle?

Moreover, a micro switch rated for 10a can manage up to 10 amperes of current. Correct rating selection is very important to meet the electrical requirements of the particular application and ensure safety as well as efficiency.

What is the lifespan of a 10a micro switch?

The majority of micro switches are manufactured for a high amount of cycles, often reaching a total of millions, which depends on the uses and the conditions when using the switches. Regular service will help prolong the operation of the switch.

To sum up the above, the Micro Switch 10A is a crucial part of a number of devices because of its precision and reliability. Knowing about its types and applications helps you make an informed decision regarding your projects. Taking care of it properly can maximize its performance and efficiency.
