The Waterproof Miniature Micro Switch Provides A Reliable Waterproof Solution For Smart Home Outdoor Devices

Smart home devices for outdoor use must perform well under rain, humidity, and dust as well as temperature changes. It is important for those manufacturers that create outdoor lighting, smart locks, security devices, gardening devices, and access control devices to choose the right switch for proper operation of their devices.

The Waterproof Miniature Micro Switch provides a tiny and reliable solution for this application. Its sealed construction protects from moisture and dirt, and the snap-action system delivers accurate, consistent switching in applications with limited space.

Why Waterproof Switching Matters Outdoors

Standard micro switches are usually made for clean and dry conditions. They can be damaged in a rainy or humid environment due to corroded contacts, false signals, short circuits, and reduced service life. These problems may occur to outdoor cameras, smart gates, irrigation controllers, garage doors, and water-proof control panels.

To mitigate such risks, a waterproof micro switch can be used. This device when installed properly inside an appropriate enclosure can provide extremely reliable position detection and control even in difficult outdoor conditions.

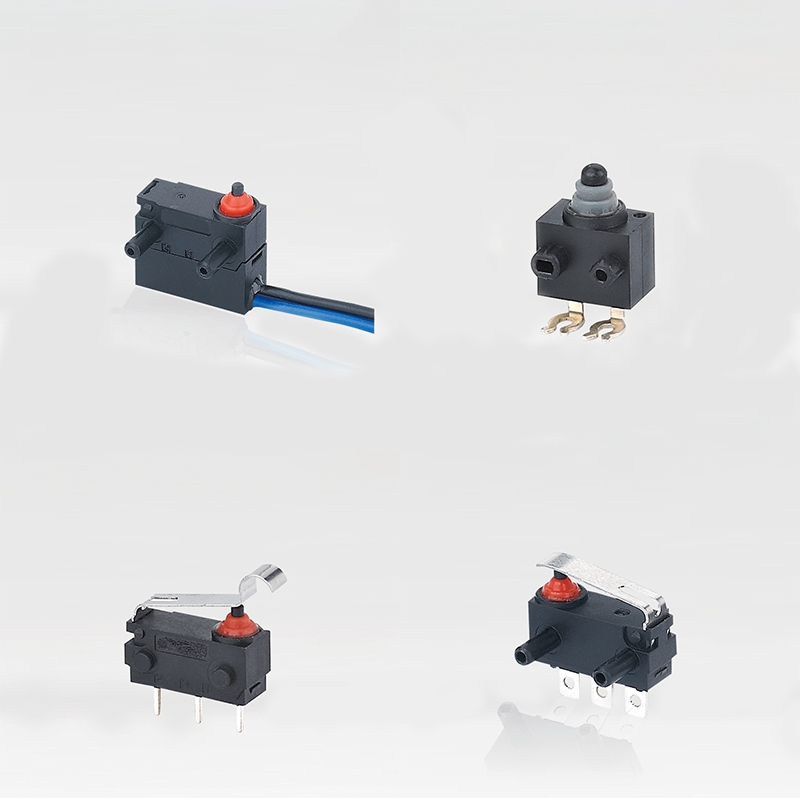

What Is a Waterproof Miniature Micro Switch?

A small type of micro switch is a small electrical switch that alters the state of an electrical circuit upon pressing or releasing the actuator. It may have normally closed contacts and/or normally open contacts or even changeover contacts.

The term “waterproof” indicates the presence of a protective construction with features such as a casing that is sealed, encapsulated actuator, gaskets, molded cable exit, or secured terminals. Buyers should check the IP rating that is indicated in the documentation provided for the product because the level of protection depends on the specific variant of the product. The protection level achieved by the installation will also depend on the casing, mounting hole, cable, and connector designs that have been used.

Key Benefits for Smart Home Devices

The compact size of the waterproof switch makes it perfect for small outdoor applications where installation space is at a premium. It features a snap-action style that gives an unmistakable switching point and allows for easy detection of whether the door, cover, gate, or other device has been properly positioned.

Typical applications include:

• Outdoor lighting and security systems
• Smart locks, gates, and garage door controls
• Irrigation and water-management equipment
• Outdoor control panels and electrical cabinets
• Robotic lawn equipment and garden machinery
• Weather stations and solar-powered monitoring devices

Given the good electrical and mechanical specifications, a micro switch would make regular operations easier and lessen possible maintenance needs caused by malfunctions from moisture.

How to Choose the Right Waterproof Switch

When choosing a waterproof micro switch, be sure to check the conditions under which it will operate. These considerations include the required IP rating, operating current and voltage, load type, movement of the actuator, operating force, contact configuration, temperature range, and expected service life.

Electric motors, pumps and solenoid are inductive loads that produce high starting currents and create electric arc disruptions. The switch should be rated according to the load. Otherwise, a relay or electronic driver may be used to handle the load and the micro switch can serve just as a control signal.

Mechanical compatibility has the same importance. The moving mechanism must push the actuator in the correct direction and remain within the limits of its travel. Too much lateral force or travel may result in damage to the device and negative influence on the sealing quality.

Installation Tips for Better Waterproof Performance

Even if a waterproof switch is of high quality, it will fail if not installed properly. Make sure you follow the manufacturer’s mounting measurements and make sure that gaskets or seals are flat. Be careful to run wires in a way that water does not flow directly into the switch or connector.

Make sure the switch is located at a safe distance so that water does not accumulate around the actuator. When performing maintenance, examine the housing, cable insulation, connector, and seals for wear and tear. When testing crucial rain and weather-proof products, conduct realistic field tests including exposure to rain, impact, and temperature changes.

Frequently Asked Questions

What Is a Micro Switch?

A microswitch is a type of snap-action switch that is small in size and changes contact position during actuation. This type of switch is used for sensing occurrences like open/closed positions, movements, and final positions.

How Are Micro Switches Made Waterproof?

Producers enhance moisture resistance through utilizing sealed enclosures, actuator coverings, gaskets, shielded terminals, overmolded wires, and materials that do not corrode easily. In order to ensure reliability, the switch and its entire assembly should be tested together.

Can a Waterproof Micro Switch Be Used Underwater?

A switch may be configured for use in rain or spray, but this does not necessarily mean that the switch will be appropriate for a continuous underwater application.

How Long Does a Waterproof Micro Switch Last?

The electrical load, switching frequency, actuator force, temperature, vibration, and installation quality determine the lifespan of the product. Always check the electrical and mechanical life ratings, provided by the manufacturer, against the requirements for the final product.

Conclusion

Waterproof Miniature Micro Switch is a perfect solution for outdoor smart home devices due to its dependable switching in a small package. The manufacturers may enhance the durability of the devices and lower the risks of failures caused by moisture if the customer chooses the right waterproof rating, electrical capacity, mechanical design and connection method for the switch used in this application.
