What Is On And Off On A Rocker Switch?

● 2026-06-30 ● - ● Leave me a message

Everyone has used a standard electrical component, such as an on/off rocker switch. This type of switch is an integral part of many machines. The types of devices that utilize rocker switches cover many types of items; from household appliances to commercial and industrial machinery. These switches have the ability to allow electricity flow through a switch or break that connection. Understanding how a rocker switch works and how to wire it will allow you to not only operate a device but also troubleshoot it when necessary.

Rocking Switch Controlling Electricity

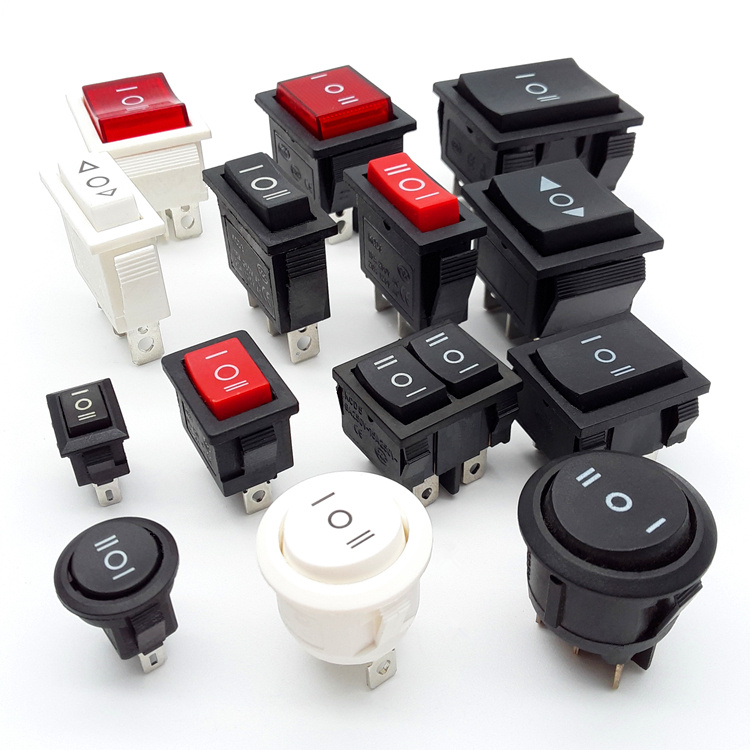

Rocker switches work by triggering the direction of the rocker to create or break an electrical contact when it rocks back and forth. These switches usually have "on" and "off" labels (usually on top of the switch) to help users determine if power is on or off. So if you have a rocker switch, which way is "on"? Rocker switches are typically turned on when the switch is flipped down into the ON position. When the rocker switch is flipped back, it clicks to the OFF position. Most of the time, it is always best to refer to the labels on whichever switch you are using. Another type of rocker switch you may use is a 3 position rocker switch. This type will allow you to toggle between three different settings for your switch—one setting for the "ON" position, another for "OFF," and a third "ON" position that may correspond to an auxiliary device. This type of switch can be quite valuable for more advanced electrical setups.

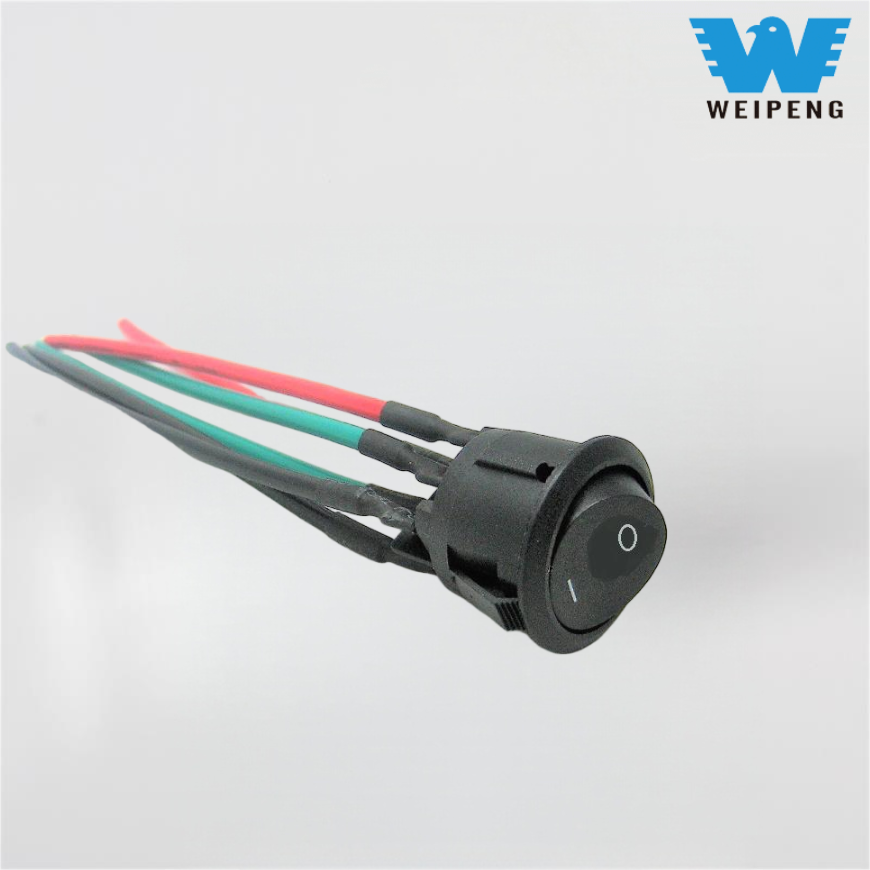

How to Wire A Rocker Switch

Don't be intimidated by the task of wiring a rocker switch; it is easy to do if you have a basic understanding of electrical wiring. First, verify your voltage rating and make sure that the power is turned off. You will find at least two terminals on most rocker switches, one for the 'ON' position and one for the 'OFF' position, while a more complex configuration, such as three-position rocker switches, will have extra terminals to be wired.

Determine which wire goes to which terminal by looking at the switch's specifications.
Use a multimeter to check for voltage before you begin to wire the switch.
Wire the switch according to the markings on the terminals, verifying your wiring scheme before you finish wiring.

By following the guidelines above, you will clear up confusion and ensure that your rocker switch will operate correctly.

How To Use/Rocker Switch FAQs

Which direction is 'on' for a rocker switch? In most cases, if you press the front of a rocker switch, the switch will be 'ON.' However, this could differ from one product to another, so always check for markings on the switch. What are some advantages of using rocker switches? Rocker switches give the user a visual indication of whether the device is in the 'ON' or 'OFF' position; therefore, they help to prevent electrical accidents. Rocker switches are also very simple to operate, so they can be used easily by anyone with little or no experience. Are rocker switches durable? Yes, rocker switches are made to last through thousands of cycles, which makes them appropriate for many different applications, ranging from light to heavy-duty. Additionally, rocker switches are very sturdy.

Beyond The Basics

Although knowledge of how to use and wire a rocker switch is important, there are many other things to learn about rocker switches and related topics, such as how to install dimmer switches together with rocker switches or how to properly replace a bad rocker switch. Learning about these other areas enhances your understanding and ability to work with electrical equipment. In this age of energy conservation, the kind of switch you choose to use will make a significant impact on your total electricity usage. Using high-quality rocker switches designed with energy efficiency in mind will likely save you money on your electric bill as well as help protect our planet. In conclusion, by learning the fundamentals of how to use and wire a rocker switch, you will gain the confidence needed to operate and troubleshoot electrical equipment. By understanding how switches operate and how to wire them correctly and the various issues that people commonly experience, you will become an expert on managing electrical systems. Whether you are a do-it-yourselfer or a professional, the knowledge you gain by learning about rocker switches will be of benefit to you with any project that involves electricity.
