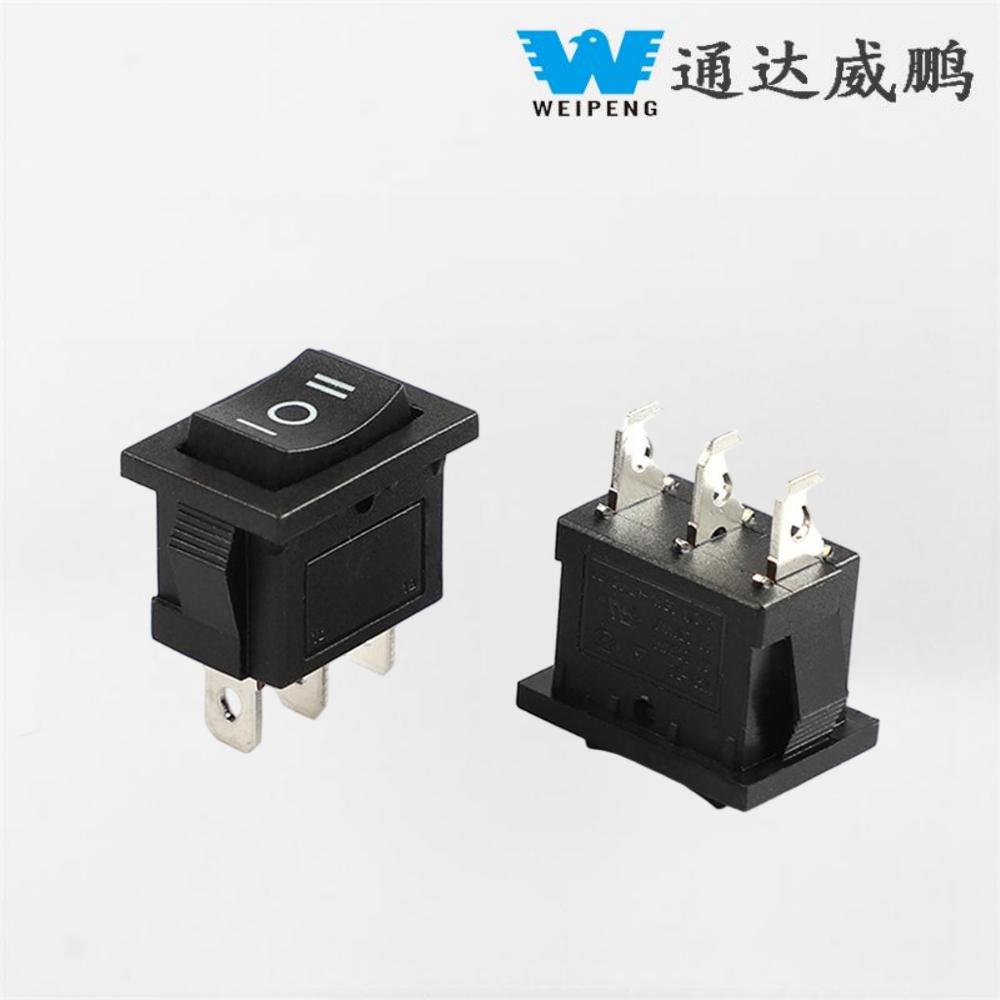

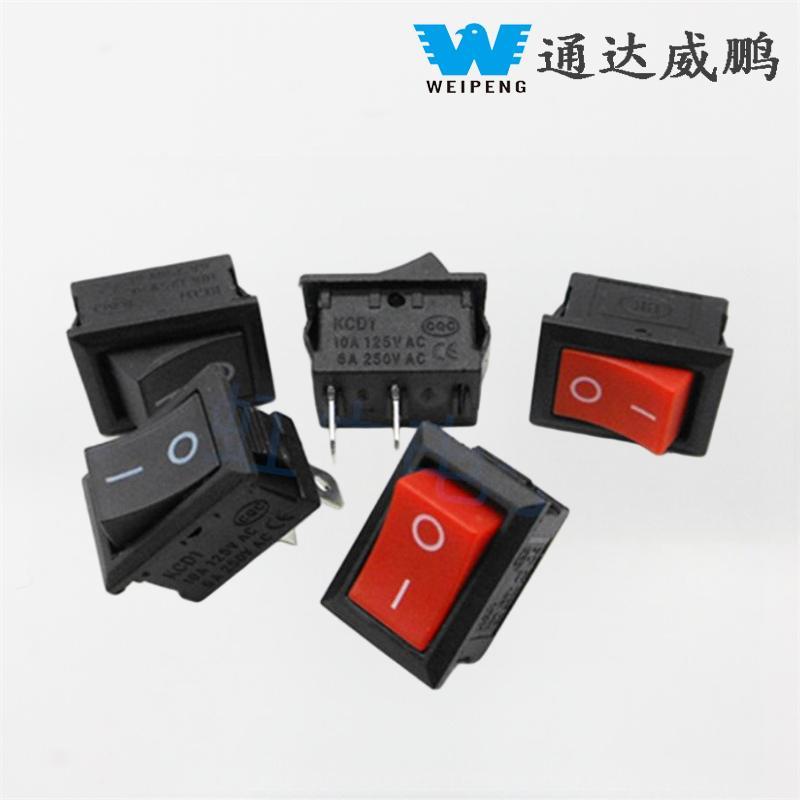

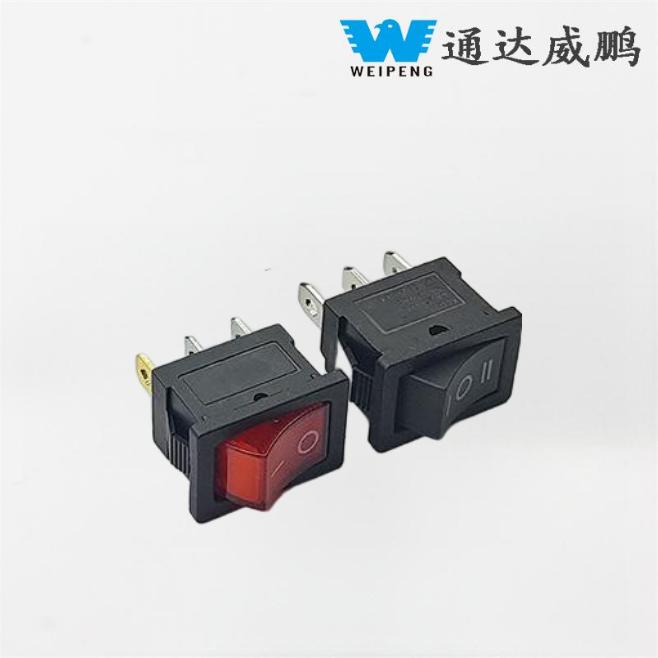

15*21mm 3-Pin 3-Position Kcd1 Rocker Boat-Shaped Power Switch

WEIPENG® is a renowned manufacturer and supplier of 15*21mm 3-Pin 3-Position Kcd1 Rocker Boat-Shaped Power Switch in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On OFF Round Rocker Switch requirements in China.

Model:KCD1

Send Inquiry

Product Description

WEIPENG® is a leading 15*21mm 3-Pin 3-Position Kcd1 Rocker Boat-Shaped Power Switch manufacturers, suppliers and exporter.

TongDa Rocker Switch Feature

This classic rocker switch works well with a wide range of electrical appliances. It adopts standard snap-in design for easy installation and removal, and fits most common panel cutouts. Equipped with quality contacts, it ensures steady current conduction and keeps low heat during long operation. With distinct gear positions and smooth toggle feel, it stays reliable after repeated use, perfect for general power control.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		6A/10A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-20~85℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Rocker Switch Application

Commercial equipment: Compatible with coffee machines, cash registers, and printers. The 16A load version can handle the instantaneous current when devices start. After batch application in a certain chain coffee shop, downtime caused by switch failures was reduced by 85%.

Industrial assistance: The 20A high-load version is used for small conveyor equipment and workshop lighting. The T125 temperature resistance is suitable for high-temperature environments. A certain machinery factory used it for 18 months with no performance degradation.
