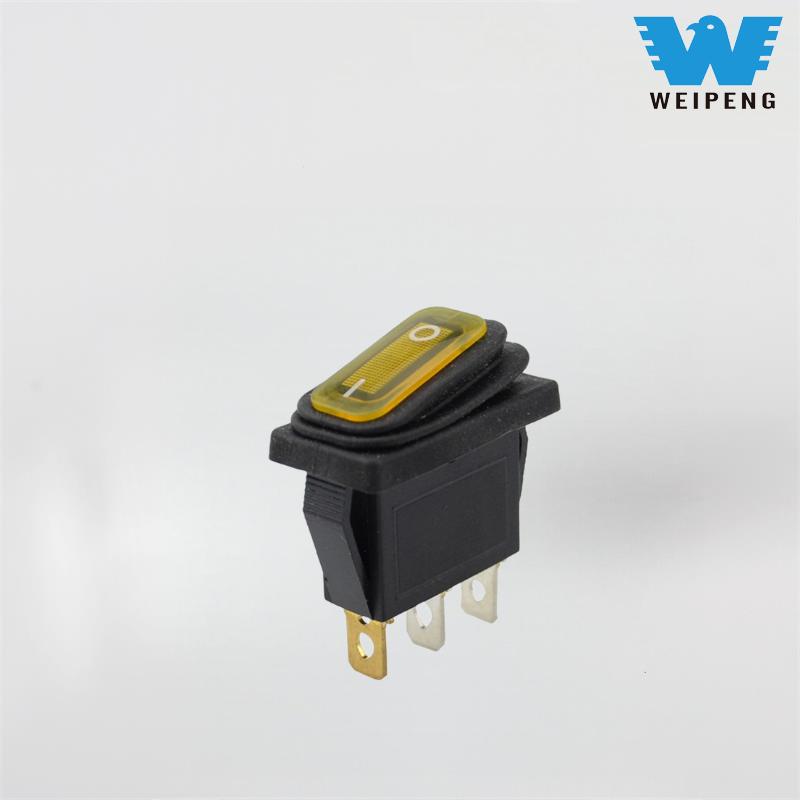

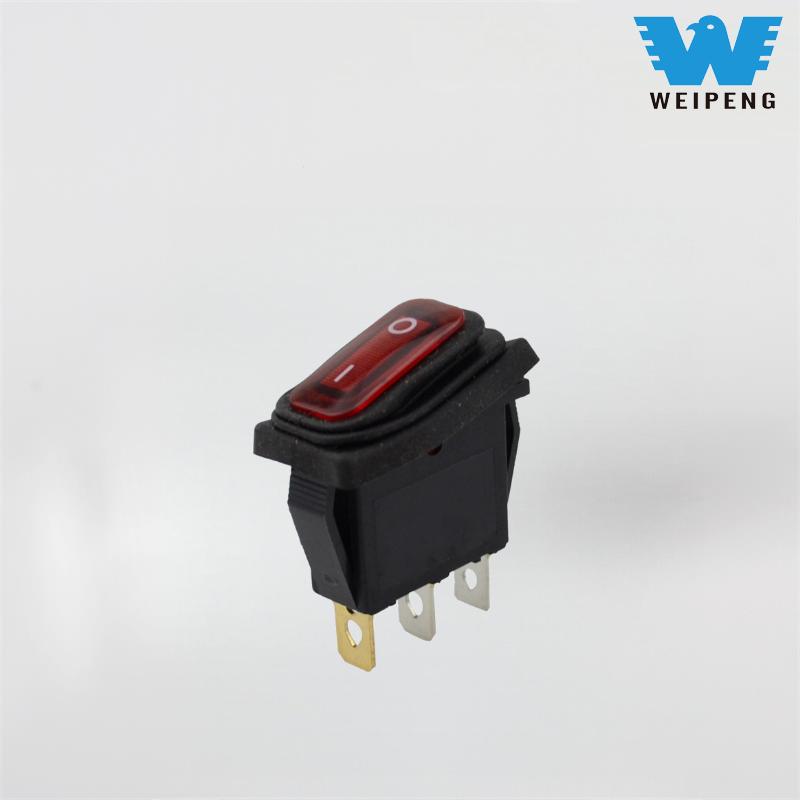

3-Pin 2-Position 12V 220V Illuminated Rocker Switch

WEIPENG® is a renowned manufacturer and supplier of 3-Pin 2-Position 12V 220V Illuminated Rocker Switch in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On Ff On Round Rocker Switch requirements in China.

Model:KCD1-306

Send Inquiry

Product Description

WEIPENG® is a leading 3-Pin 2-Position 12V 220V Illuminated Rocker Switch manufacturers, suppliers and exporter.

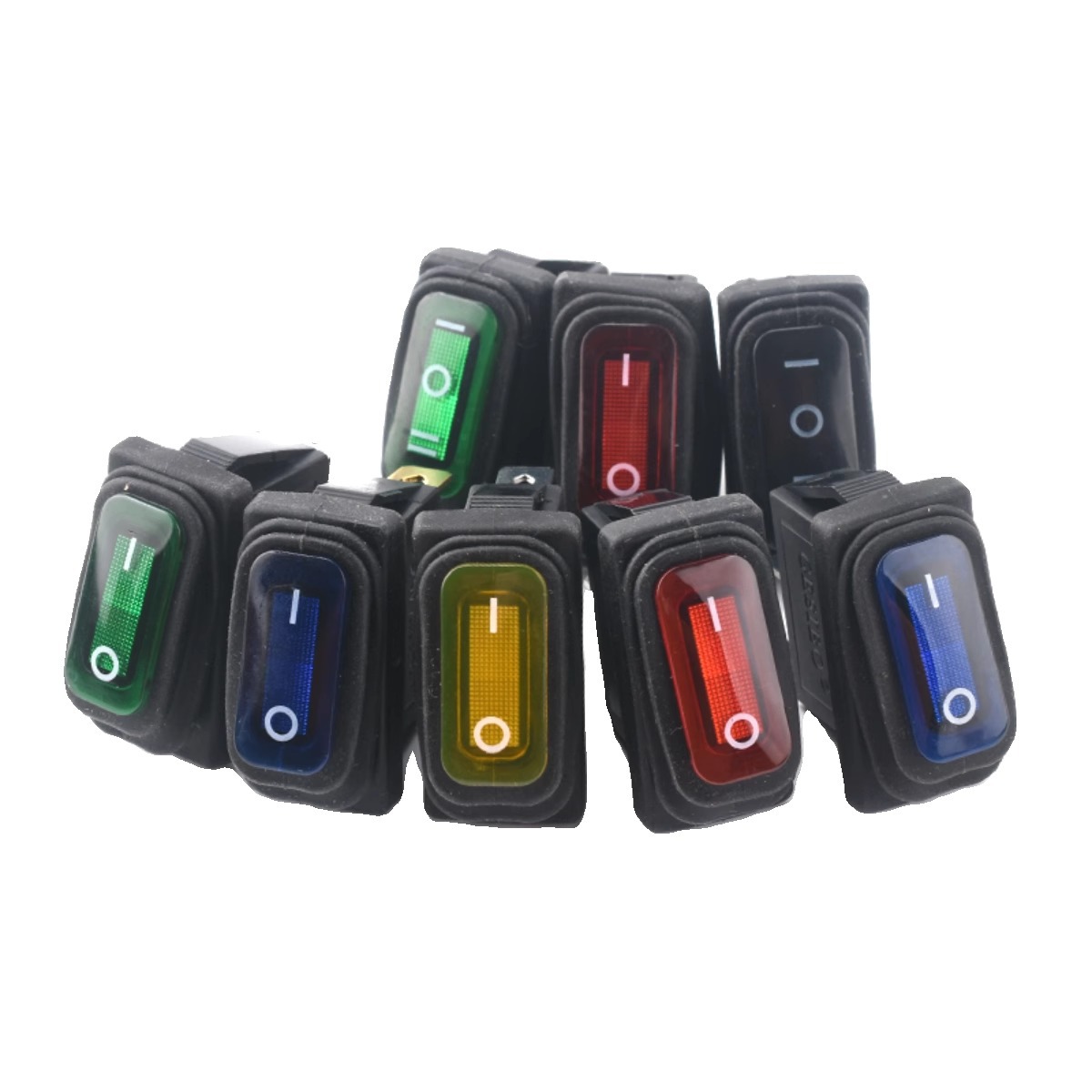

TongDa Rocker Switch Feature

The products cover multiple series, including GQ111, GQ115, and GQ116. This series of products all adopt an integrated sealing structure design, with a high-elasticity silicone sealing ring embedded in the casing seams, combined with a precise snap-fit closure process, forming a fully enclosed waterproof barrier that effectively resists the intrusion of moisture, dust, and oil. The core models have a waterproof rating of IP65 or higher, and some customized versions can be upgraded to IP67, making them suitable for various harsh conditions such as outdoor rain, workshop spray, and humid home appliance environments, fundamentally addressing the short-circuiting and malfunction issues of traditional switches in damp environments.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Rocker Switch Application

Commercial equipment: Compatible with coffee machines, cash registers, and printers. The 16A load version can handle the instantaneous current when devices start. After batch application in a certain chain coffee shop, downtime caused by switch failures was reduced by 85%.

Industrial assistance: The 20A high-load version is used for small conveyor equipment and workshop lighting. The T125 temperature resistance is suitable for high-temperature environments. A certain machinery factory used it for 18 months with no performance degradation.

TongDa Rocker Switch Details
