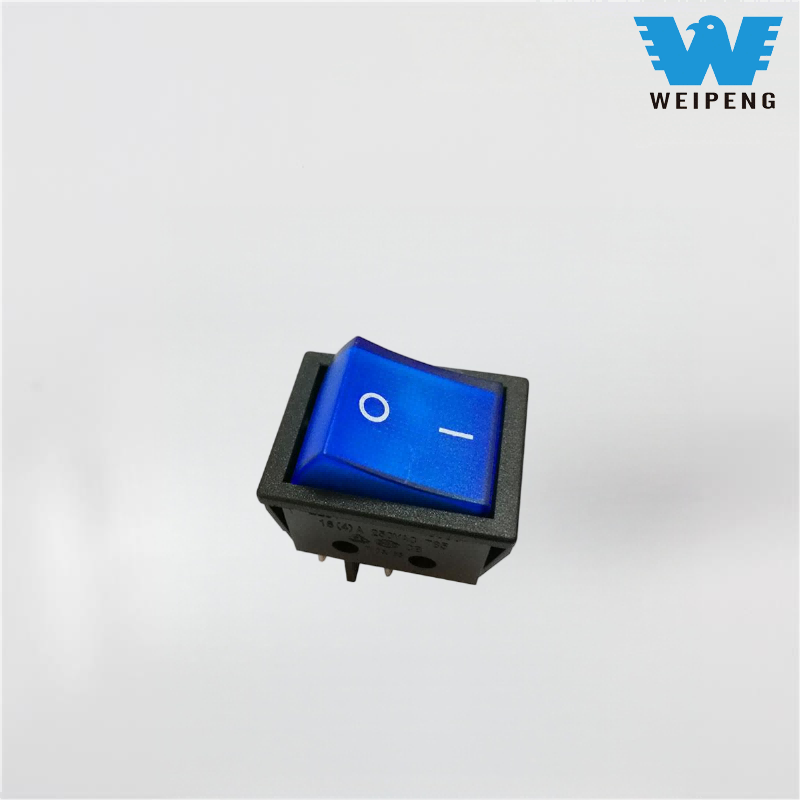

Electric Wok and Water Dispenser Button Switch

WEIPENG® is a renowned manufacturer and supplier of TongDa Rocker Switch Supply Socket in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On Ff On Round Rocker Switch requirements in China.

Model:KCD4-201

Send Inquiry

Product Description

WEIPENG® is a leading Electric Wok and Water Dispenser Button Switch manufacturers, suppliers and exporter.

TongDa Rocker Switch Feature

The LED indicator module with a lighted design has been specially optimized: it uses high-brightness surface-mount LEDs, supports red, green, and blue color options, and operates over a voltage range of 5V-36V, making it compatible with low-voltage household devices (such as 12V smart panels) and high-voltage industrial scenarios (such as 24V equipment). The LED light-transmitting area features a frosted optical design, providing uniform light without glare, with brightness controlled at 50-150 cd/m², clearly visible during the day and not dazzling at night. The indicator logic supports two customizable modes, "on when powered, off otherwise" and "off when powered, on otherwise," to meet the status feedback needs of different devices — for example, commercial equipment often uses "green light on when powered" to indicate normal operation, while industrial equipment can customize "red light on when faulty" to signal abnormalities, completely solving the misjudgment issues caused by traditional rocker switches' blind operation.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Rocker Switch Application

Commercial equipment: Compatible with coffee machines, cash registers, and printers. The 16A load version can handle the instantaneous current when devices start. After batch application in a certain chain coffee shop, downtime caused by switch failures was reduced by 85%.

Industrial assistance: The 20A high-load version is used for small conveyor equipment and workshop lighting. The T125 temperature resistance is suitable for high-temperature environments. A certain machinery factory used it for 18 months with no performance degradation.

TongDa Rocker Switch Details
