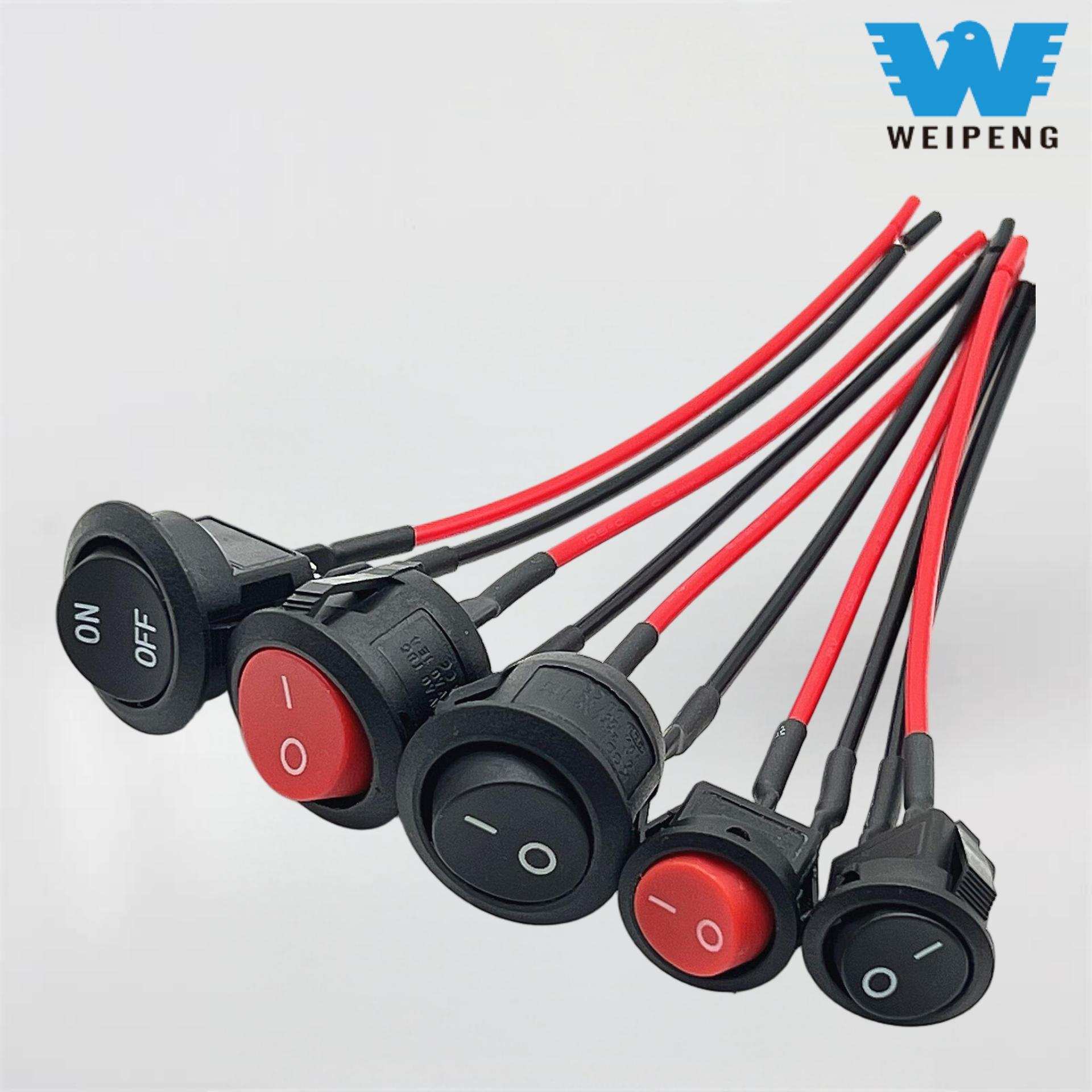

Full Round Opening 20mm Round Two-Pin Soldering Rocker Switch

WEIPENG® is a renowned manufacturer and supplier of Full Round Opening 20mm Round Two-Pin Soldering Rocker Switch in China, with years of experience in providing high-quality solutions. Our competitive pricing and growing popularity in the European and American markets make us the perfect long-term partner for all your On OFF Round Rocker Switch requirements in China.

Model:KCD1

Send Inquiry

Product Description

WEIPENG® is a leading Full Round Opening 20mm Round Two-Pin Soldering Rocker Switch manufacturers, suppliers and exporter.

TongDa Rocker Switch Feature

Reinforced internal structure enables the switch to withstand frequent switching without sticking. The outer shell offers basic dust protection to prevent internal faults caused by dirt. Its obvious on/off status helps users identify working state quickly. It is suitable for daily household use as well as mass assembly on production lines.

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		6A/10A 250VAC 16A 125VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		-20~85℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		CE
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Rocker Switch Application

This rocker switch is widely adopted across various fields. It is commonly used on household appliances, heaters, fans, kitchen devices and power tools. Besides, it also serves as power control parts for instruments, industrial control units and power adapters.
