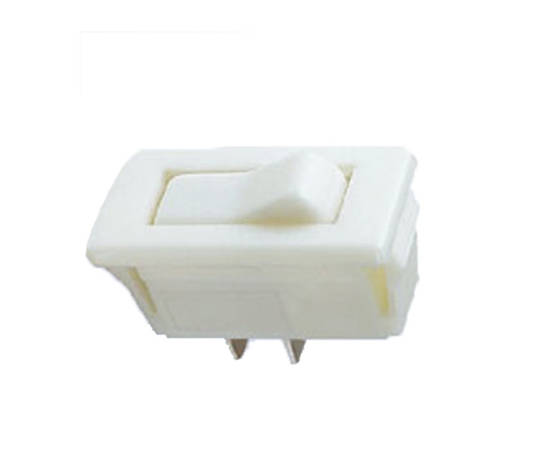

Normally Open off on Rocker Switch

Normally Open off on Rocker Switch by China manufacturers WEIPENG®. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Household appliances ultra-small micro switch needs in China.

Model:GQ111-325

Send Inquiry

Product Description

WEIPENG® is a leading China Rocker Switch manufacturers, suppliers and exporter.

TongDa Normally Open off on Rocker Switch Coffeemaker

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A/16(3)A/10(3)A 250VAC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	1500V/0.5mA/60S
		Between terminals and the metal frame	3000V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency :10~55HZ; Amplitude :1.5mm: Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、VDE、ENEC、TUV、CE、CQC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure : 86~106KPa

TongDa Normally Open off on Rocker Switch Application

These Rocker switches, also known as wave switches, rocker switches, have the same structure as the toggle switch, but the knob handle is replaced with a ship type.Rocker switches usually have reliable connections.It has undergone strict quality control and testing, and has high reliability and stability during use. Ship-type switches usually have fire-proof materials and have certain fire-proof capabilities, which can improve the safety of the equipment. It can be equipped with functions such as indicator lights, logos or backlights to facilitate users to observe the switch status in low-light environments.

TongDa Normally Open off on Rocker Switch Details
