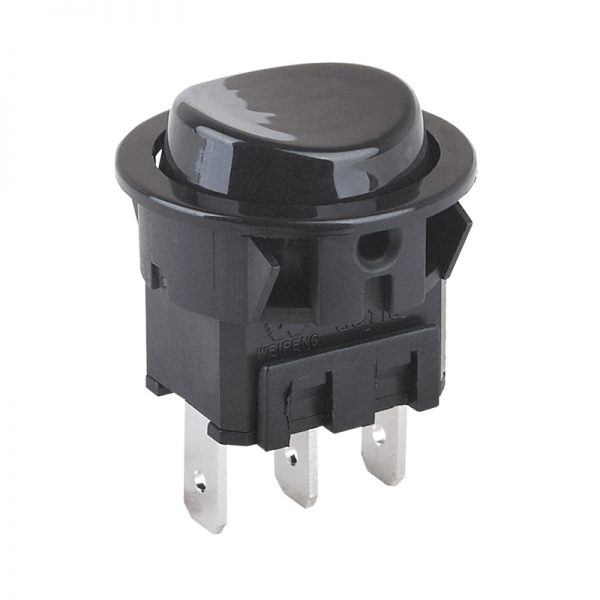

Waterproof Round Rocker Switch
  • Waterproof Round Rocker SwitchWaterproof Round Rocker Switch

Waterproof Round Rocker Switch

WEIPENG® has established itself as a top-tier Waterproof Round Rocker Switch manufacturer and supplier in China, providing quality Waterproof Round Rocker Switch solutions for many years. Our competitive pricing and popularity in the European and American markets make us an ideal long-term partner for your Waterproof Round Rocker Switch needs in China.

Model:GQ116-1-06

Send Inquiry

Product Description


WEIPENG® is a leading China Waterproof Round Rocker Switch manufacturers, suppliers and exporter.

Tongda Wire Electric Waterproof Round Rocker Switch Introduction


Small household appliances and other products, such as water dispenser, treadmill, printer, TV, computer speaker, battery car, motorcycle, ion TV, coffee pot, plug, massage machine, electric fan, electric oil, heater.



Tongda Wire Electric Waterproof Round Rocker Switch Test Conditions

Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 10(1.5)A/16(3)A/10(3)A 250VAC
2 Contact Resistance ≤50mΩ  Initial value
3 Insulation Resistance ≥100MΩ (500VDC)
4
Dielectric
Voltage
Between
non-connected terminals
1500V/0.5mA/60S
Between terminals
and the metal frame
3000V/0.5mA/60S
5 Electrical Life ≥10000 cycles
6 Mechanical Life ≥100000 cycles
7 Operating Temperature 0~125℃
8 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
9 Vibration Proof Vibration Frequency :10~55HZ;
Amplitude :1.5mm:
Three directions :1H
10 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time :2~3S
11 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
12 Safety Approvals UL、CSA、VDE、ENEC、TUV、CE、CQC
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure : 86~106KPa

Tongda Wire Electric Waterproof Round Rocker Switch Fault Problem


The Waterproof Round Rocker Switch, the usual one with the red light on. Sometimes can not be turned off, is not back, and often jump air switch fault
Troubleshooting methods:
There is a metal piece inside the boat switch, the middle of the spring fulcrum, spring displacement and plastic bracket aging deformation, the switch is not flexible, can be opened after the power off to see, if not plastic parts damaged, maybe can be restored. The neutral line inside the switch is straight through, and the switch component has no relationship, so if the switch jump air switch, it is the insulation layer damage of the neutral line through the switch, you can cut off the damage and rewire, pay attention to ensure the insulation. It may also be that the foot of the indicator has a short circuit, rewiring can be done.

Tongda Wire Electric Waterproof Round Rocker Switch Details
