125V 3A Ultra-Compact Three-Pin Reset Micro Switch
  • 125V 3A Ultra-Compact Three-Pin Reset Micro Switch125V 3A Ultra-Compact Three-Pin Reset Micro Switch
  • 125V 3A Ultra-Compact Three-Pin Reset Micro Switch125V 3A Ultra-Compact Three-Pin Reset Micro Switch
  • 125V 3A Ultra-Compact Three-Pin Reset Micro Switch125V 3A Ultra-Compact Three-Pin Reset Micro Switch

125V 3A Ultra-Compact Three-Pin Reset Micro Switch

As a classic masterpiece by Yueqing Tongda in the field of micro switches, the 125V 3A Ultra-Compact Three-Pin Reset Micro Switch features the core advantages of 'miniature structure, ultra-long life, and precise triggering,' and is specially designed for human-computer interaction devices such as mice and keyboards, as well as small electronic control applications.

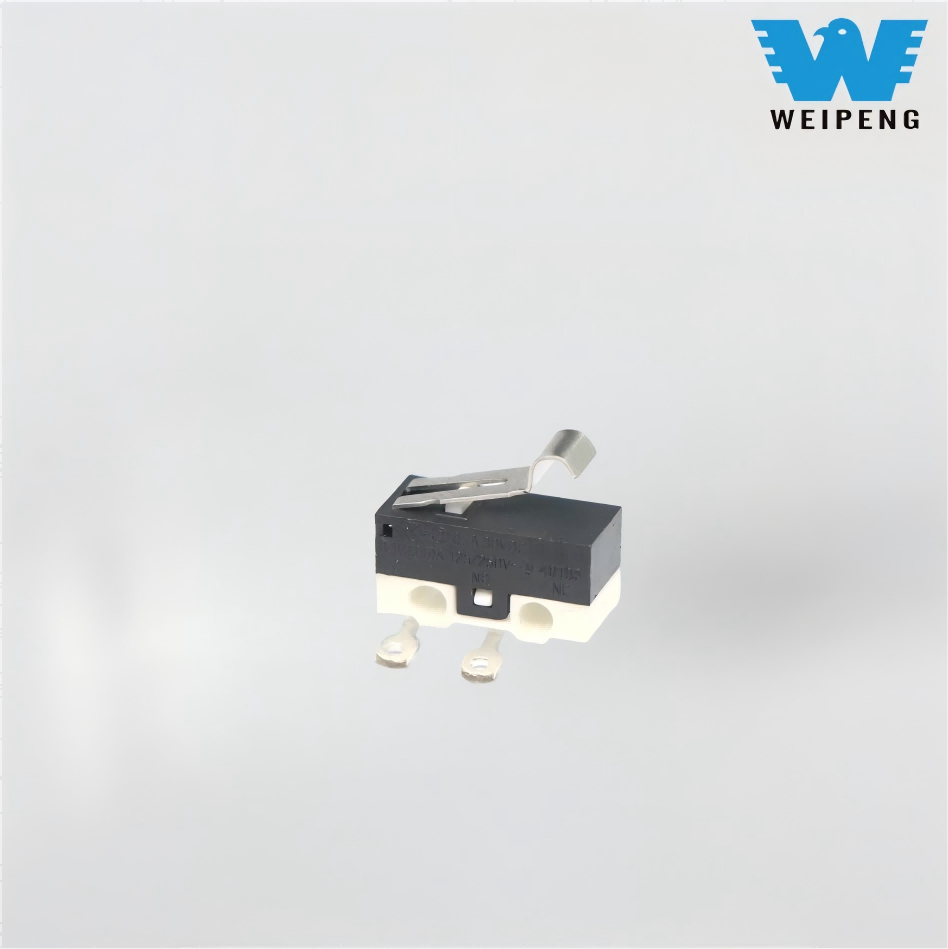

Model:HK-10-023

Send Inquiry

Product Description

WEIPENG® is a leading 125V 3A Ultra-Compact Three-Pin Reset Micro Switch manufacturers, suppliers and exporter.

Micro Switch Introduction


As a classic masterpiece by Yueqing Tongda in the field of miniature switches, the HK-10 mouse switch features the core advantages of 'miniature structure, ultra-long lifespan, and precise actuation,' specifically designed for human-computer interaction devices such as mice and keyboards, as well as small electronic control applications. Integrating over thirty years of switch manufacturing expertise and patented technology, this product has become a key control component in consumer electronics, industrial control, and smart devices, thanks to its millisecond-level response speed, durability of tens of millions of cycles, and wide compatibility. It has long provided supporting services to well-known electronic brands both domestically and internationally.


It is compatible with smart wearable devices, smart home control panels, portable electronic devices, and more. Its compact design and low power consumption perfectly meet the needs of small devices, providing precise control support for products such as smartwatches and smart door locks.

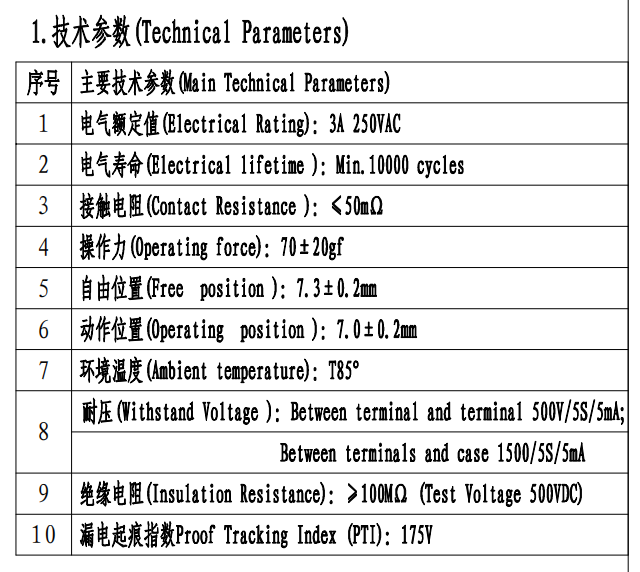

Micro Switch Parameter (Specification)


ITEM Main Technical Parameters
1 Electrical Rating :1A/3A 250VAC
2 Electrical lifetime : Min.10000 cycles
3 Contact Resistance :<50mΩ
4 Operating force:70±20gf
5 Free position:7.3±0.2mm
6 Operating position:7.0±0.2mm
7 Ambient temperature:T85°
8 Withstand Voltage :Between terminal and terminal 500V/5S/5mA;
Between terminals and case 1500/5S/5mA
9 Insulation Resistance:>100MΩ  Test Voltage 500VDC
10 Proof Tracking Index PTI :175V

Micro Switch Details
