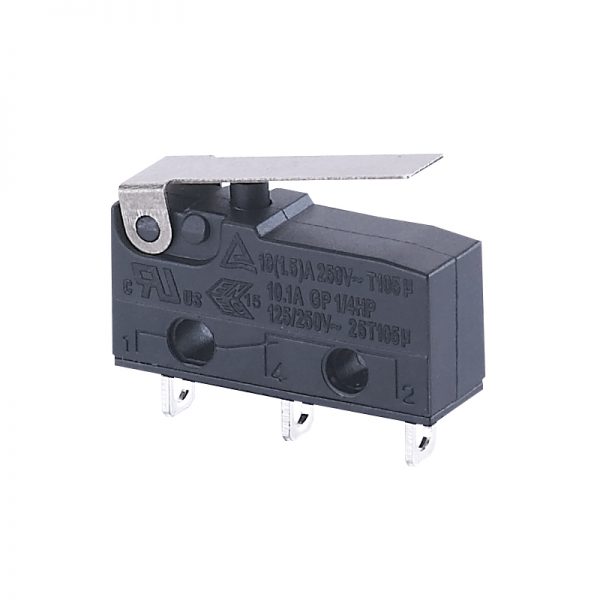

Micro Switch Medium Lever
  • Micro Switch Medium LeverMicro Switch Medium Lever

Micro Switch Medium Lever

WEIPENG® is a leading manufacturer and supplier of micro switch medium lever in China. With years of experience in switch, we offer competitively priced products that have gained popularity in the European and American markets. We are excited to establish a long-lasting partnership with you in China.


Send Inquiry

Product Description

WEIPENG® is a professional leader China Micro Switch Medium Lever manufacturers with high quality and reasonable price. Welcome to contact us.

Tongda Wire Electric Micro Switch Medium Lever Introduction

micro switch medium lever is a small contact interval and fast moving mechanism, with the specified stroke and the specified force of the switch action contact mechanism, covered by the shell, its external drive rod of a switch, because the switch contact spacing is relatively small, so the name of micro switch, also called sensitive switch.
Also known as sensitive switch, quick switch. Pressure actuated quick on/off. Used for door switch in anti-theft system.

Tongda Wire Electric Micro Switch Medium Lever Parameter (specification)

Switch Technical Characteristics:
ITEM Technical Parameter Value
1 Electrical Rating 10(1.5)A 125/250VAC 10A 36VDC
2 Contact Resistance ≤50mΩ  Initial value
3 Insulation Resistance ≥100MΩ  (500VDC)
non-connected terminals
Between terminals
and the metal frame
5 Electrical Life ≥10000 cycles
6 Mechanical Life ≥3000000 cycles
7 Operating Temperature -25~105℃
8 Operating Frequency Electrical :15 cycles
Mechanical :60 cycles
9 Vibration Proof Vibration Frequency : 10~55HZ;
Amplitude :1.5mm;
Three directions :1H
10 Solder Ability :
More than 80% of immersed part
shall be covered with solder
Soldering Temperature :235±5℃
Immersing Time :2~3S
11 Solder Heat Resistance Dip Soldering :260±5℃ 5±1S
Manual Soldering :300±5℃ 2~3S
12 Safety Approvals UL、CSA、TUV、ENEC
13 Test Conditions Ambient Temperature :20±5℃
Relative Humidity :65±5%RH
Air Pressure :86~106KPa

Tongda Wire Electric micro switch medium lever Feature And Application

At present, the mechanical life of micro switch medium lever on the domestic market varies from 3W to 1000W times according to the different use requirements, generally 10W, 20W, 50W, 100W, 300W, 500W and 800W times. Beryllium bronze, tin bronze and stainless steel wire are generally used in China as reed. ALPS in foreign countries can do it up to 1000W, their reed is made of rare metal titanium.

Tongda Wire Electric Micro Switch Medium Lever Plan
