Smart Electronics Micro Switch

With a strong focus on Smart Electronics Micro Switch, WEIPENG® is a prominent Smart Electronics Micro Switch manufacturer and supplier based in China. Our products are well-priced and have gained considerable market share in Europe and America. We are eager to build a lasting partnership with you in China.

Model:DK4-BD-005

Send Inquiry

Product Description

High quality Smart Electronics Micro Switch is offered by China manufacturers WEIPENG®.

Tongda Wire Electric Smart Electronics Micro Switch Introduction

A quick on/off switch mechanism, known as a Smart Electronics Micro Switch or sensitive switch, features a small contact interval and fast movement. It is designed with a specified stroke and force for switch action contacts and is covered by a protective shell. The switch is activated by an external drive rod and is commonly used in applications where space is limited or where rapid on/off action is required, including as a door switch in anti-theft systems.

Tongda Wire Electric Smart Electronics Micro Switch Parameter (Specification)

Switch Technical Characteristics:
ITEM	Technical Parameter		Value
1	Electrical Rating		10(1.5)A 125/250VAC 10A 36VDC
2	Contact Resistance		≤50mΩ Initial value
3	Insulation Resistance		≥100MΩ (500VDC)
4	Dielectric Voltage	Between non-connected terminals	500V/0.5mA/60S
		Between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥3000000 cycles
7	Operating Temperature		-25~105℃
8	Operating Frequency		Electrical :15 cycles Mechanical :60 cycles
9	Vibration Proof		Vibration Frequency : 10~55HZ; Amplitude :1.5mm; Three directions :1H
10	Solder Ability : More than 80% of immersed part shall be covered with solder		Soldering Temperature :235±5℃ Immersing Time :2~3S
11	Solder Heat Resistance		Dip Soldering :260±5℃ 5±1S Manual Soldering :300±5℃ 2~3S
12	Safety Approvals		UL、CSA、TUV、ENEC
13	Test Conditions		Ambient Temperature :20±5℃ Relative Humidity :65±5%RH Air Pressure :86~106KPa

Tongda Wire Electric Smart Electronics Micro Switch Feature And Application

At present, the mechanical life of microswitches on the domestic market varies from 3W to 1000W times according to the different use requirements, generally 10W, 20W, 50W, 100W, 300W, 500W and 800W times. Beryllium bronze, tin bronze and stainless steel wire are generally used in China as reed. ALPS in foreign countries can do it up to 1000W, their reed is made of rare metal titanium.

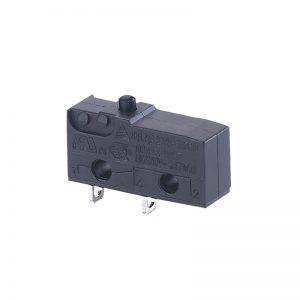

Tongda Wire Electric Smart Electronics Micro Switch Details
